CargoBuckle Universal Ladder Rack Tie-Down System - 2" Retractable Tie-Down - 1 Pair - F153180

The CargoBuckle F153180 Universal Ladder Rack System is a heavy-duty, permanent securing solution designed specifically for utility and ladder racks. Unlike standard tie-downs, this system features a universal mounting bracket that allows you to bolt the retractable ratchets directly to most rack configurations, including round or square tubing.

Commercial-Grade Convenience

This system eliminates the need for loose bungees or tangled cam straps. Because the ratchets are permanently mounted to your rack, they are always ready to go. Simply pull the 6-foot strap over your ladder, lumber, or conduit, hook it to the rack, and ratchet it tight.

Key Performance Specs:

• Break Strength: 3,500 lbs (1,588 kg) per strap.

• Safe Working Load (WLL): 1,167 lbs (530 kg) per strap.

• Webbing Dimensions: 2" wide x 72" (6 feet) long.

• Mounting: Universal design (Fits square and round tubing).

High-Value Features:

• Self-Retracting 6' Webbing: The 2-inch wide strap automatically retracts into the housing when released, preventing it from flapping against your vehicle or tangling during transit.

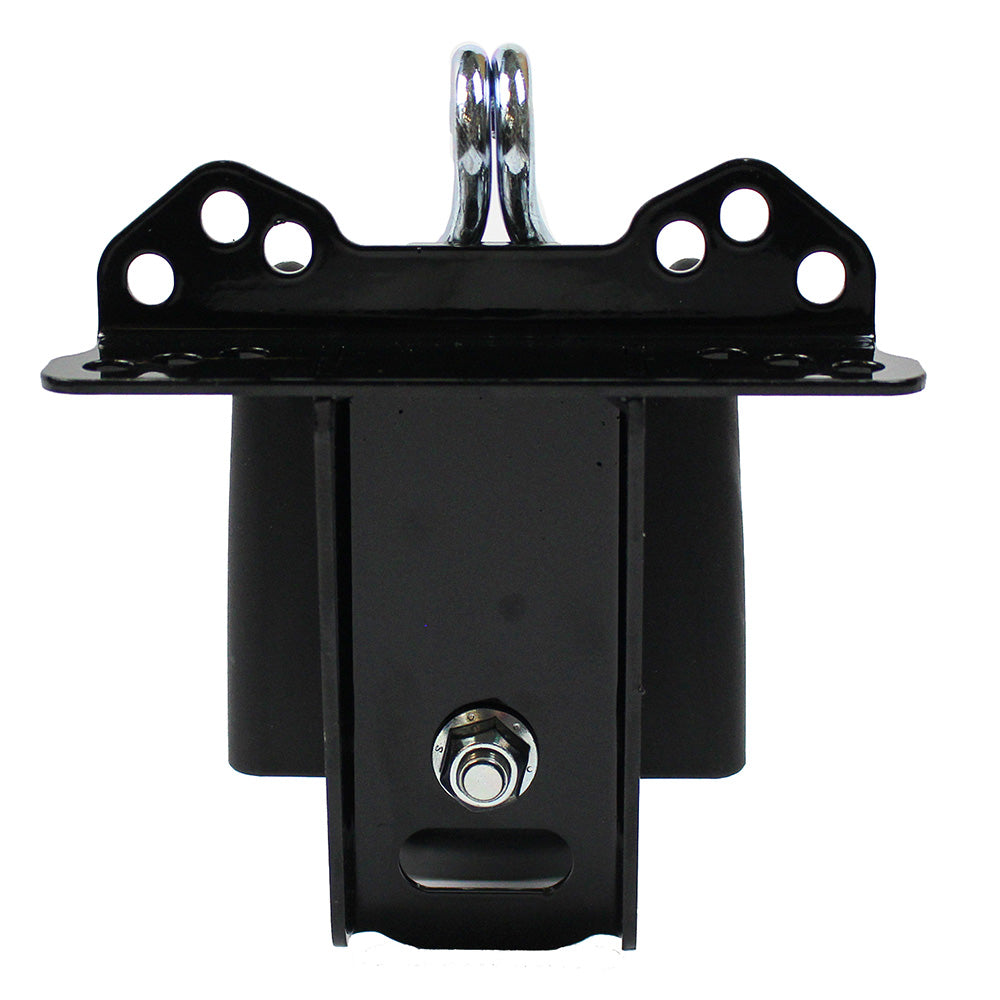

• Universal Mounting Brackets: Includes specialized hardware designed to adapt the G3 ratchet to various rack shapes, making it a versatile choice for contractors and fleet vehicles.

• SUR-Grip Power Handles: Large, rubber-coated handles provide maximum leverage and a comfortable grip, even when wearing heavy work gloves.

• Built to Last: Features an anti-corrosive steel body, a stainless steel internal spring, and high-tenacity polyester webbing that resists UV damage and rot.

• Vinyl-Coated S-Hooks: Protects your ladders and the rack’s finish from scratches and metal-on-metal wear.

Applications

• Trailer and truck cargo securing

• RV and camper tie-downs

• Kayak, canoe, and outdoor gear transport

• Furniture, ladder, and equipment hauling

• Everyday utility tie-downs

Technical Specifications:

Installation Pro-Tip:

When mounting the F153180 to a round tube rack, ensure the mounting bolts are tightened to the manufacturer's torque spec to prevent the unit from "rolling" around the pipe. If your rack has a powder-coated finish, placing a small strip of rubber gasket material between the bracket and the pipe will provide extra grip and prevent the bracket from scratching the coating.
