CargoBuckle Ladder Rack System – 1.25" Square × 7' (Pair) – Model F18816

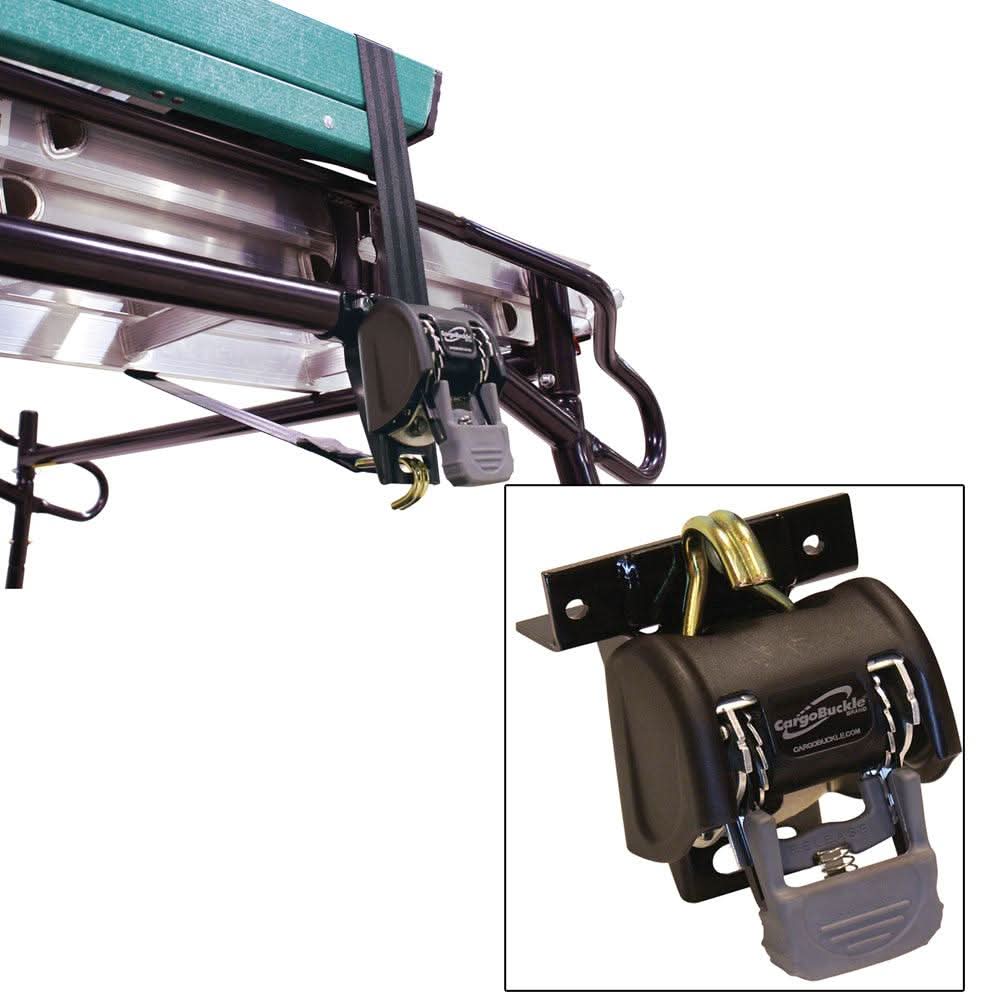

The CargoBuckle Ladder Rack System (F18816) is a heavy-duty, permanent tie-down solution specifically designed for utility racks and ladder racks. Sold as a pair, this system integrates the world-class G3 retractable ratchet technology into a specialized mounting bracket that fits 1.25" square tubing.

Secure Ladders and Lumber in Seconds

This system eliminates the dangerous and time-consuming process of using bungee cords or loose cam straps to secure overhead loads. With the CargoBuckle permanently mounted to your rack, you simply pull the strap over your ladder or lumber, hook it to the rack, and ratchet it tight.

Key Performance Specs:

• Break Strength: 1,500 lbs (680 kg) per strap.

• Safe Working Load (WLL): 500 lbs (227 kg) per strap.

• Webbing Dimensions: 1" wide x 84" (7 feet) long.

• Mounting Compatibility: Specifically designed to bolt onto 1.25" square rack tubing.

High-Value Features:

• Self-Retracting 7' Webbing: The extra-long 7-foot strap automatically retracts into the housing when not in use, ensuring no loose ends are flapping against your vehicle while driving.

• Stay-Ready Design: Because the units are permanently bolted to the rack, they can't be lost, forgotten, or tangled in a toolbox.

• SUR-Grip Handles: Large, rubber-coated ratchet handles allow for easy operation even while wearing work gloves.

• Professional Grade Durability: Features an anti-corrosive steel body, a stainless steel internal spring, and a high-strength polyester strap

• Vinyl-Coated S-Hooks: Protects your ladders and rack finish from scratches and metal-on-metal wear.

Applications

• Trailer ladder rack systems

• Truck and van load support

• Contractor tool and material transport

• Kayak, surfboard, and recreational gear hauling

• RV and utility transport accessories

Technical Specifications:

Installation Pro-Tip:

When mounting the F18816 to your rack, position the units so that the strap pulls down and slightly inward toward the center of the rack. This creates a "clamping" effect that prevents the ladder from shifting side-to-side during sharp turns or sudden stops. Periodic lubrication of the ratchet pivot points with a dry silicone spray will keep the retraction smooth in dusty or salty environments.
