C.E. Smith Swivel Bracket Assembly - 8" Bracket - 10000G

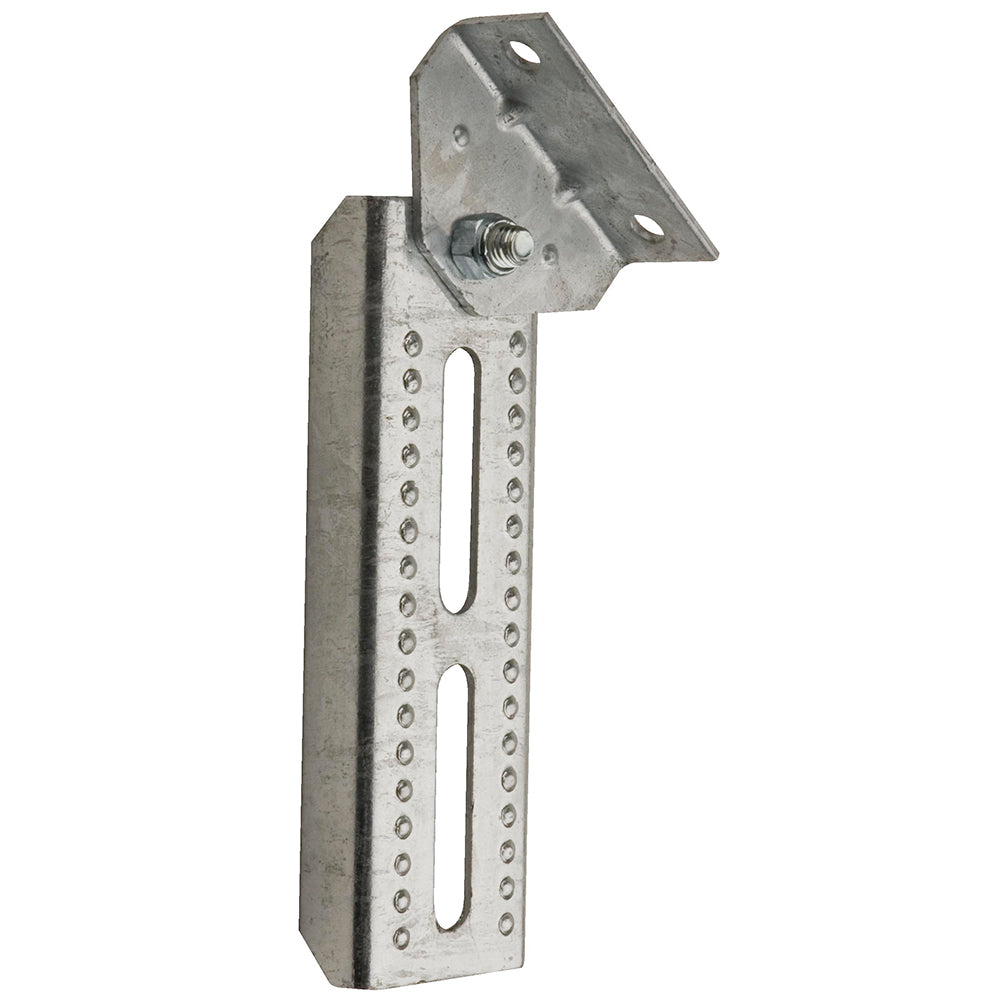

Swivel Bracket Assembly - 8" Bracket

This Smith adjustable bracket is designed to support bunk boards. Hot dip galvanizing for years of use in the harsh marine environment.

This bracket assembly uses bolster bracket-10100G and swivel bracket-10200G.

Features:

• Bolster bracket: 8" bracket, 11 gauge material, 2-1/2" wide, slots 1/2" wide, swivel hole 1/2" dia., slots 2-3/4"
• Swivel bracket: 11 gauge material, bunk flange 1-3/8" x 3-1/2", bunk flange holes 3/8" dia., swivel flange 2" tall x 3-1/2", swivel flange hole 1/2" dia., hole centers 2-1/2"
• Overall assembly length is 9"
