Bluewater 9057-3114 Marine Grade 19mm Inrush Push Button Switch with RGB LED Indicators - 9057-3114

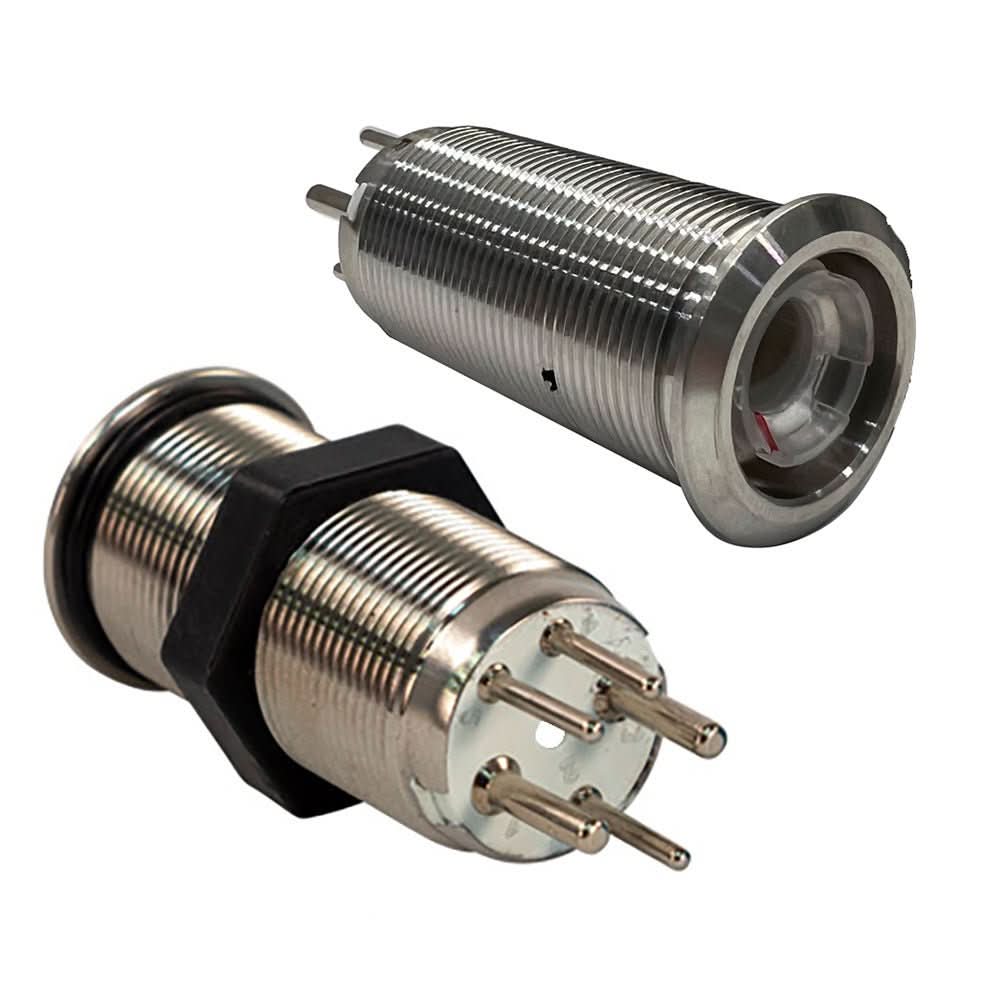

Bluewater 9057-3114 Marine Grade 19mm Inrush Push Button Switch with RGB LED Indicators

The Bluewater 9057-3114 is a precision-engineered 19mm marine-grade push button switch designed for demanding outdoor and marine applications. Crafted from corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof standard, this switch offers exceptional durability in harsh environments exposed to salt spray, washdowns, and environmental stress. Its compact design makes it ideal for tight panel layouts, providing reliable control where space is limited. Featuring Bluewater's proprietary Deutsch-style connectors, the switch ensures secure and waterproof electrical connections for long-term performance.

This switch provides intuitive visual feedback through smart LED indicators that glow softly in blue for backlighting and turn bright red when active. The dual LED colors enhance visibility and help users easily identify the switch's status at a glance. Rated for 15 amps at 12-24VDC, it can handle high current loads with consistent reliability, making it suitable for various marine and outdoor electrical systems. The switch's contacts are configurable, offering options for single or dual channel setups, with a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, ensuring longevity in frequent-use scenarios.

Each switch features a fully detachable actuator that can be customized to match specific style or functional preferences. The built-in backlighting ensures visibility even in low-light conditions, providing safety and clarity during operation. Installation involves drilling a 19mm hole into panels up to 6mm thick, connecting the color-coded contacts for power and control, and securing the switch in place. Its robust construction and high-performance electrical features make the Bluewater 9057-3114 an excellent choice for boat builders, marine technicians, and professionals managing complex electrical systems in demanding environments.

Features:

• Corrosion-resistant SS316 stainless steel housing for durability in harsh environments

• IP69K waterproof sealing ensures protection against water ingress and washdowns

• Proprietary Deutsch-style connectors provide secure, waterproof connections

• Smart RGB LED indicators for clear visual feedback: blue backlight, red active status

• Rated for 15 amps at 12-24VDC, handling high current loads reliably

• Configurable contacts for single or dual channel operation with multiple contact options

• Detachable, customizable actuator for style and functional preferences

• Suitable for tight panel spaces with a compact 19mm diameter design

• Easy installation through a 19mm hole, with simple wiring of color-coded contacts

• Long mechanical and electrical life for dependable long-term operation

BRAND: Bluewater

Manufacturer Part Number: 9057-3114
