Bluewater 9057-2113 Marine Grade 19mm Inrush Push Button Switch with Blue/Red LED - 9057-2113

Bluewater 9057-2113 Marine Grade 19mm Inrush Push Button Switch with Blue/Red LED

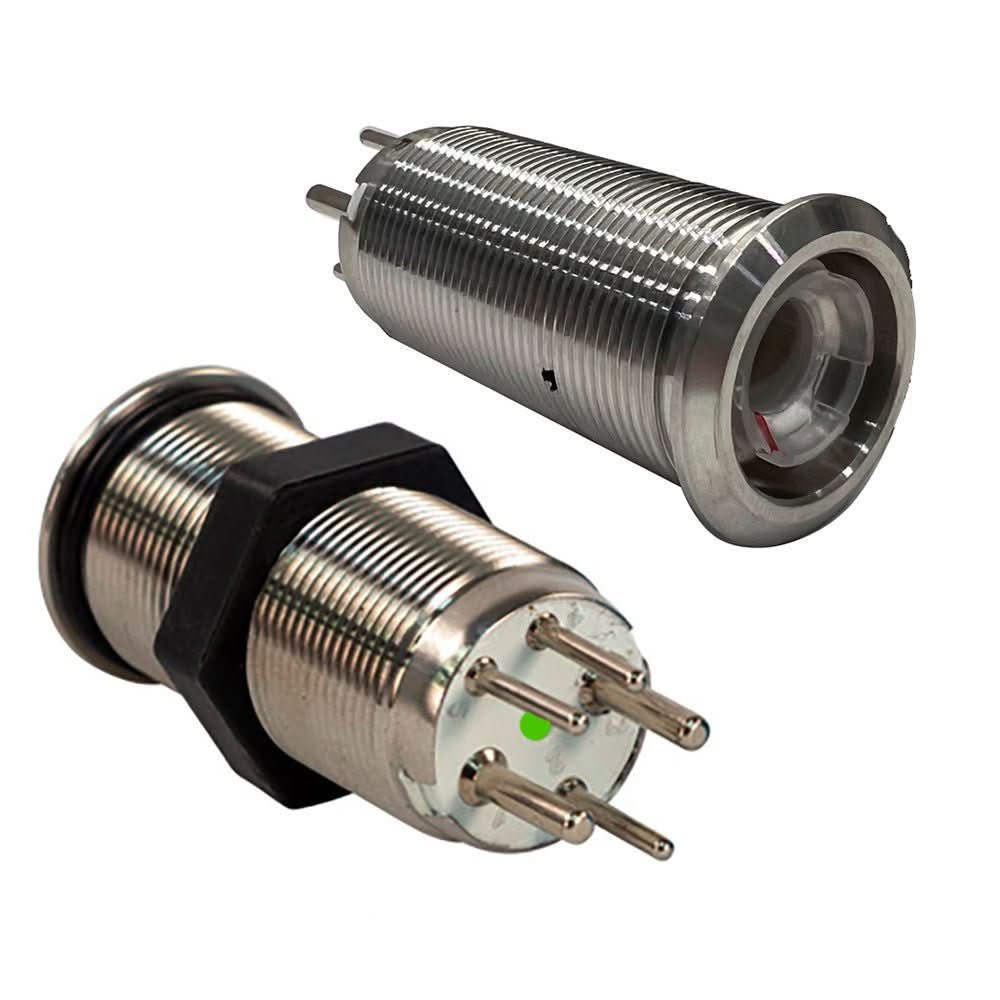

The Bluewater 9057-2113 is a robust 19mm marine-grade push button switch designed for demanding environments where durability and reliability are essential. Housed in corrosion-resistant SS316 stainless steel, this switch is engineered to withstand harsh conditions, including salt spray and washdowns, thanks to its sealed IP69K waterproof rating. The integrated Deutsch-style connectors ensure secure and waterproof connections, making it an ideal choice for marine, outdoor, and industrial applications. Its compact size allows for easy installation in tight panel spaces without compromising performance or durability. This switch provides clear visual feedback with built-in LED indicators that glow softly blue for backlighting and turn bright red when active, giving immediate status recognition in any lighting condition. Rated for 15 amps in single channel or 7.5 amps per channel in dual-channel configurations, it handles high current loads reliably. The fully detachable actuator is customizable, allowing users to personalize the switch's appearance and feel to match their specific needs. With a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, the Bluewater 9057-2113 ensures long-lasting performance in demanding environments. Whether for marine systems, outdoor equipment, or heavy-duty machinery, this switch offers the durability and functionality required for critical control applications. Easy to install, simply drill a 19mm hole into materials up to ¼ inch thick, connect the colored contacts for power and control, and enjoy a secure, waterproof connection backed by Bluewater's quality engineering. The switch features a nickel-plated brass/ stainless steel construction, ensuring corrosion resistance and longevity. Its LED options include blue, green, and red, providing versatile illumination for various applications.

Features:

• Corrosion-resistant SS316 stainless steel housing for durability in harsh environments

• IP69K waterproof rating ensures protection against dust, salt spray, and washdowns

• Blue/Red LED indicators provide clear visual feedback of switch status

• High current rating: 15 amps in single channel, 7.5 amps per channel in dual-channel mode

• Detachable, customizable actuator for personalized operation and appearance

• Simple installation: drill a 19mm hole and connect contacts for secure waterproof fit

• Built for demanding marine, outdoor, and industrial applications

• Mechanical life: 50,000 cycles, electrical life: 10,000 cycles

• Deutsch-style connectors for reliable and waterproof connections

• Compact design suitable for tight panel layouts

BRAND: Bluewater

Manufacturer Part Number: 9057-2113
