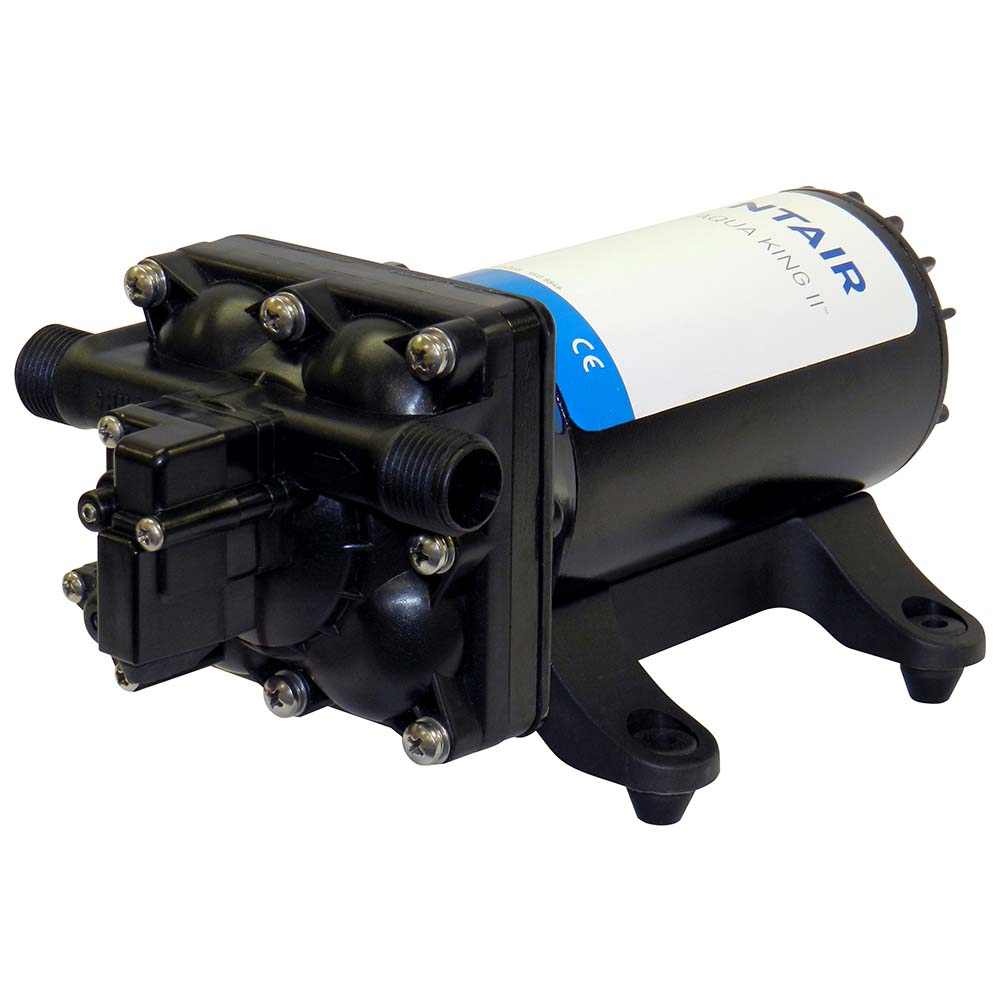

Shurflo by Pentair King II Premium 4.0 24VDC 4.0GPM 55PSI Fresh Water Pressure Pump w/Strainer & Fittings - 4148-163-E75
Manufacturer Part #: 4148-163-E75
Couldn't load pickup availability
Shurflo by Pentair King II Premium 4.0 24VDC Fresh Water Pressure Pump – 4.0 GPM, 55 PSI – Model 4148-163-E75
The Shurflo by Pentair King II Premium 4.0 Water Pressure Pump (Model 4148-163-E75) is a high-performance marine and RV fresh water pressure pump engineered to deliver consistent flow and reliable pressure for onboard water systems. Designed for boats, RVs, and remote water systems, this 24 V DC pump delivers up to 4.0 GPM (gallons per minute) at 55 PSI, providing household-style water pressure for faucets, showers, sinks, and appliances.
Built with premium materials and backed by Shurflo’s reputation for durability, this King II pump includes a built-in strainer and a full set of fittings for easy installation and dependable performance. The self-priming diaphragm design ensures fast startup and reliable operation, even during intermittent use, while the automatic demand switch helps control pressure and reduces cycling for longer pump life.
This Shurflo King II Premium pump is engineered for quiet operation, low power consumption, and continuous performance in demanding marine and RV environments. Whether you’re cruising offshore or exploring remote campgrounds, the 4148-163-E75 provides dependable water delivery where you need it.
Key Features:
-
Flow Rate: Up to 4.0 GPM
-
Pressure: 55 PSI
-
Voltage: 24 V DC
-
Includes built-in strainer and installation fittings
-
Self-priming diaphragm pump design
-
Automatic demand switch for smooth pressure control
-
Quiet, efficient operation
-
Model: 4148-163-E75
Applications:
-
Marine fresh water systems
-
RV and camper water systems
-
Dockside and mobile water pressure applications
-
Faucets, showers, and onboard appliances
Choose the Shurflo by Pentair King II Premium 4.0 24VDC Fresh Water Pressure Pump (4148-163-E75) for robust performance, easy installation, and reliable water pressure designed for life on the water or the road.
Technical Specifications:
-
Model Number: 4148-163-E75
-
Voltage: 24V DC
-
Current Draw: 5.3 Amps Max
-
Shut-Off Pressure: 55 PSI (3.8 Bar)
-
Re-start Pressure: 40 PSI (2.8 Bar)
-
Ports: 1/2"-14 NPSM-Male
-
Dimensions: 10" L x 5" W x 4.75" H
-
Weight: 7.9 lbs (3.5 kg)
Why Choose the Aqua King II Premium?
The Shurflo by Pentair King II Premium 4.0 24VDC 4.0GPM 55PSI Fresh Water Pressure Pump 4148-163-E75 is the ideal choice for medium-to-large vessels that require a reliable, high-volume water system. While standard pumps often require an accumulator tank to prevent "pulsing" at the faucet, the Shurflo King II's internal bypass manages the pressure internally. This saves valuable space and simplifies your plumbing.
Installation Pro-Tip:
For the quietest possible operation, use at least 18 inches of flexible high-pressure hose on both the inlet and outlet ports before connecting to rigid plumbing. This prevents the pump's natural vibration from being transmitted through the pipes. Always mount the pump on a solid surface and ensure the included strainer is installed on the inlet side to protect the valves from debris.
Manufacturer : Shurflo by Pentair
Manufacturer Part No : 4148-163-E75
Shurflo by Pentair King II Premium 4.0 24VDC 4.0GPM 55PSI Fresh Water Pressure Pump w/Strainer & Fittings - 4148-163-E75 is backordered and will ship as soon as it is back in stock.
