Jabsco Commercial Duty Water Puppy - 24v - 18670-0943
Manufacturer Part #: 18670-0943
Couldn't load pickup availability

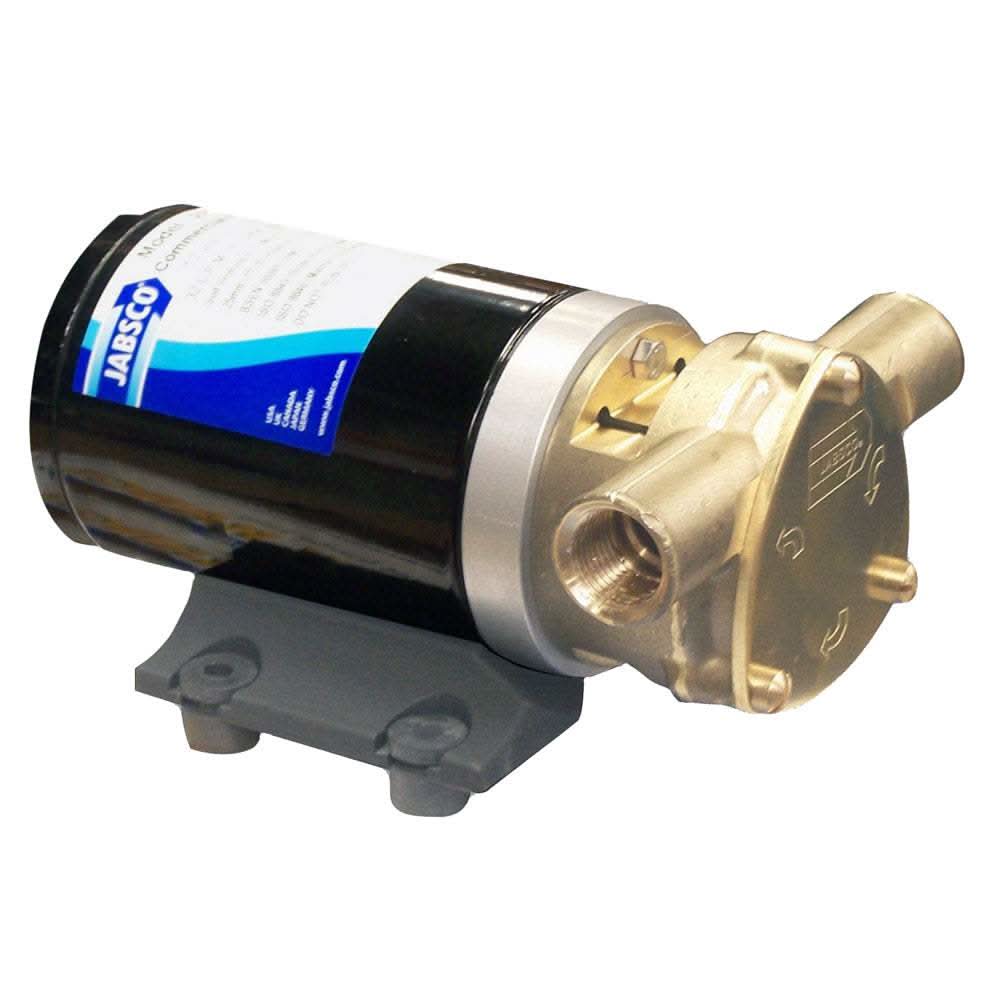

Jabsco Commercial Duty Water Puppy – 24V – 18670-0943
The Jabsco Commercial Duty Water Puppy is a rugged, high-performance flexible impeller pump engineered for demanding commercial marine and industrial applications. Designed for continuous-duty operation, this 24-volt pump delivers reliable water transfer in harsh environments where durability, efficiency, and long service life are critical.
Built with Jabsco’s proven pump technology, the Water Puppy is widely used for washdown systems, livewell circulation, ballast transfer, bilge pumping, and general water transfer in commercial vessels and heavy-duty installations.
What’s In The Box: 18670-0943
-
(1) Commercial Duty Water Puppy Pump: 24V DC unit with a bronze pump head and pre-installed Nitrile impeller (oil-resistant).
-
(2) Port Adapters: Specifically designed to convert the pump’s 1/2" NPT internal threads to 3/4" Male Garden Hose threads.
-
(4) Rubber Mounting Grommets: Pre-installed in the base to reduce vibration and noise during operation.
-
(1) Instruction Manual: Includes detailed wiring tables, plumbing diagrams, and a service parts list.
Key Features & Benefits
1. Robust Commercial Motor
The 18670-0943 is "continuously rated," meaning it can run for extended periods without overheating. This makes it suitable for circulating water in large bait tanks or managing high-volume bilge requirements on workboats.
2. Debris & Oil Resistance
-
Flexible Impeller Design: Small bits of bilge debris (sand, scales, or hair) pass through the flexible Nitrile vanes without clogging the pump.
-
Oil-Resistant Nitrile: The standard impeller is resistant to oil and diesel, making it safe for engine room sumps or transferring fuel-contaminated water.
3. Versatile Plumbing Connections
The ports are uniquely designed for multiple connection styles:
-
Internal: 1/2" Female NPT (for pipe fittings).
-
External: 1" Hose Barb (for sliding a large hose directly over the port).
-
Included Adapters: 3/4" Garden Hose (for standard washdown hoses).
Technical Specifications
| Feature | Details |
| Model Number | 18670-0943 |
| Flow Rate | 9.0 GPM ($34 \text{ LPM}$) |
| Voltage | 24V DC |
| Amp Draw | 5.0 Amps |
| Fuse Size | 10.0 Amp |
| Self-Priming | Up to 6 ft ($1.8 \text{m}$) dry / 20 ft ($6 \text{m}$) wet |
| Max Pressure | 8.7 PSI ($20 \text{ ft}$ of Head) |
| Weight | 6.0 lbs ($2.7 \text{ kg}$) |
Commercial-Grade Pumping Performance
The Water Puppy utilizes a flexible impeller design that provides smooth, consistent flow while allowing the pump to self-prime and handle varying water conditions. This design makes it ideal for applications requiring dependable suction lift and steady output.
Self-Priming Flexible Impeller Design
Thanks to its flexible impeller, the pump is self-priming and capable of lifting water vertically, even when mounted above the waterline. The impeller also allows for quiet operation and efficient flow control.
24V DC Power for Commercial Systems
Designed for 24V DC electrical systems, this model is well-suited for commercial vessels, workboats, and larger marine platforms that operate on higher-voltage systems for improved efficiency and reduced current draw.
Built for Harsh Marine Environments
The Jabsco Commercial Duty Water Puppy is constructed using corrosion-resistant materials, a heavy-duty motor, and sealed components to ensure long-term reliability in saltwater and freshwater environments. It is built to withstand frequent use and demanding operating conditions.
Specifications
-
Brand: Jabsco
-
Series: Water Puppy
-
Model Number: 18670-0943
-
Voltage: 24V DC
-
Pump Type: Flexible impeller
-
Duty Rating: Commercial / Continuous duty
-
Application: Marine and industrial water transfer
Ideal Applications
-
Commercial vessels and workboats
-
Washdown and deck cleaning systems
-
Livewell and bait tank circulation
-
Ballast and utility water transfer
-
Industrial and marine service applications
Why Choose Jabsco Commercial Pumps
Jabsco is a global leader in marine and industrial pumping solutions, trusted by professionals worldwide. The Commercial Duty Water Puppy series is known for its robust construction, dependable performance, and versatility across a wide range of applications.
Choose the Jabsco Commercial Duty Water Puppy – 24V – 18670-0943 for a reliable, heavy-duty pumping solution designed to perform day after day in demanding marine and industrial environments.
Pro-Tip for Installation:
"To maintain the Ignition Protected rating, ensure all electrical connections are made using marine-grade waterproof butt connectors. If you plan to use this for emptying a bait tank, you can install a reversing switch (Jabsco Part #18753-0652); however, for the longest motor life, the pump should primarily be run in the clockwise direction."
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Jabsco
Manufacturer Part No : 18670-0943
UPC : 671880532136
