Jabsco Amazon Thrudeck Pump Manual Bilge Pump - 29250-0000
Manufacturer Part #: 29250-0000
Couldn't load pickup availability

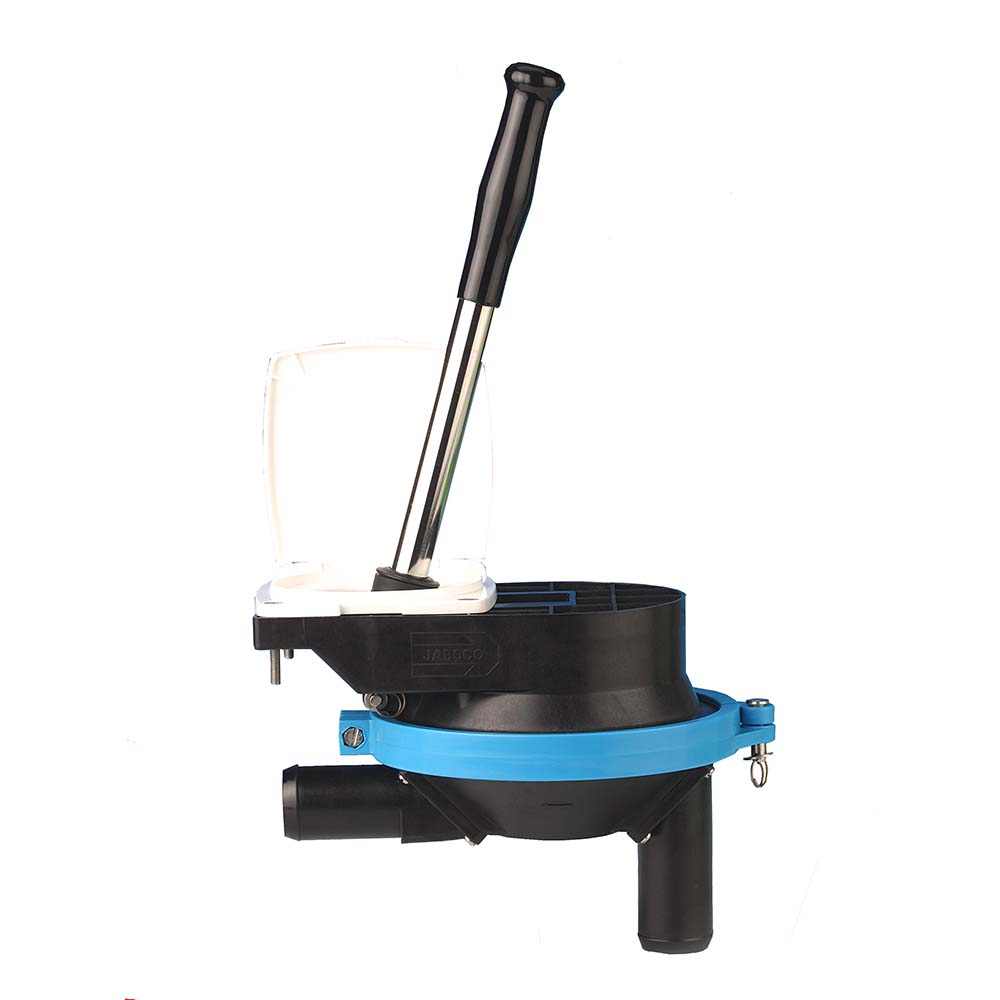

Jabsco Amazon Thru-Deck Manual Bilge Pump – 29250-0000
The Jabsco Amazon Thru-Deck Manual Bilge Pump (29250-0000) is a powerful, dependable emergency bilge pumping solution designed for sailboats and offshore vessels. Built for reliability when electrical systems fail, this high-capacity manual pump allows above-deck bilge pumping through a thru-deck installation—ensuring safe and effective operation in rough seas.
Trusted worldwide, the Amazon series is a favorite among bluewater sailors and safety-conscious boaters.
🚤 Above-Deck Emergency Bilge Pumping
The thru-deck design allows the pump handle to be operated from the cockpit or deck, eliminating the need to access the bilge during heavy weather or emergencies. This enhances safety and ensures continuous pumping capability when conditions are challenging.
💪 High-Capacity Manual Performance
The Amazon pump delivers exceptional pumping output per stroke, making it one of the most efficient manual bilge pumps available. Its double-acting diaphragm design moves water on both the push and pull stroke for faster dewatering with less effort.
🔄 Double-Acting Diaphragm Design
The diaphragm pump design offers smooth operation, excellent suction lift, and the ability to handle bilge water containing debris. Unlike piston pumps, it reduces wear and maintains reliable performance over time.
⚓ Rugged Marine-Grade Construction
Built to withstand harsh marine environments, the 29250-0000 features corrosion-resistant materials, reinforced housing, and durable internal components. It is engineered to resist saltwater, UV exposure, and vibration for long-term reliability offshore.
🔧 Designed for Thru-Deck Installation
This model is specifically designed for thru-deck mounting, making it ideal for pairing with a Jabsco thru-deck kit. The installation allows convenient access while maintaining a clean, professional deck appearance.
In the Box: 29250-0000
-
(1) Amazon Thrudeck Pump: High-impact glass-filled nylon body.
-
(1) Removable Stainless Steel Handle: Features a cushioned grip and a safety lanyard point.
-
(1) Through-Deck Mounting Kit: Integrated bezel and a watertight cover to seal the handle aperture.
-
(1) Pre-installed Nitrile Diaphragm: Resistant to oil, diesel, and bilge chemicals.
-
(1) Multi-Angle Discharge Elbow: Allows for easier hose routing in tight spaces.
Key Features & Benefits
1. High-Volume Performance
With a capacity of 13 GPM (50 LPM), the Amazon Thrudeck moves a significant volume of water with relatively low physical effort. Its large-bore, 1-inch (25mm) valves are designed to pass solids and debris that would jam smaller pumps.
2. "Ready-to-Go" Thrudeck Design
Unlike other pumps that require a separate accessory kit, the 29250-0000 comes with the deck plate and cover included.2 The pump mounts behind a bulkhead, leaving only the discrete, watertight cover visible on deck. Robust Construction
-
Corrosion Resistance: The body is made of non-corroding plastic, the fastenings are stainless steel, and the handle is marine-grade stainless.
-
Reliability: The simple diaphragm design has no complex gears or motors to fail, ensuring it works even after months of inactivity.
4. Safety First
The removable handle prevents accidental operation or snagging lines while sailing. The integrated cover ensures that the deck remains watertight when the pump is not in use, protecting the core of your deck from moisture.
Technical Specifications
| Feature | Details |
| Model Number | 29250-0000 |
| Flow Rate | 13 GPM (50 LPM) @ 70 strokes/min |
| Mounting Style | Thrudeck / Thru-Bulkhead |
| Port Size | 1" (25mm) Hose Barb |
| Self-Priming | Up to 13 ft (4m) |
| Max Head | 13 ft (4m) |
| Materials | Glass-filled Nylon / Nitrile / Stainless Steel |
Pro-Tip for Installation:
"To ensure the pump remains primed and ready for instant use, try to install a foot valve (strainer with a check valve) at the end of the suction hose in the deepest part of the bilge. This prevents the water in the hose from draining back, allowing the pump to move water on the very first stroke rather than having to 'pull' air for the first few cycles."
Would you like me to find the part number for a replacement Nitrile Diaphragm (29223-0000) to keep in your boat's emergency spares kit?
Ideal Applications
-
Sailboats
-
Offshore and bluewater vessels
-
Emergency backup bilge pumping systems
-
Boats requiring cockpit-accessible manual pumps
-
Vessels operating in remote or offshore conditions
Why Choose the Jabsco Amazon Bilge Pump
Jabsco is a global leader in marine pumping and safety equipment, and the Amazon series is recognized for powerful manual performance and unmatched reliability. The 29250-0000 Amazon Thru-Deck Manual Bilge Pump provides peace of mind when electrical systems fail and conditions demand dependable manual pumping.
Equip your vessel with the Jabsco Amazon Thru-Deck Manual Bilge Pump – 29250-0000 and ensure reliable bilge pumping capability in any situation.
Manufacturer : Jabsco
Manufacturer Part No : 29250-0000
Jabsco Amazon Thrudeck Pump Manual Bilge Pump - 29250-0000 is backordered and will ship as soon as it is back in stock.
