Jabsco Amazon Bulkhead Manual Bilge Pump - 29240-0000
Manufacturer Part #: 29240-0000
Couldn't load pickup availability

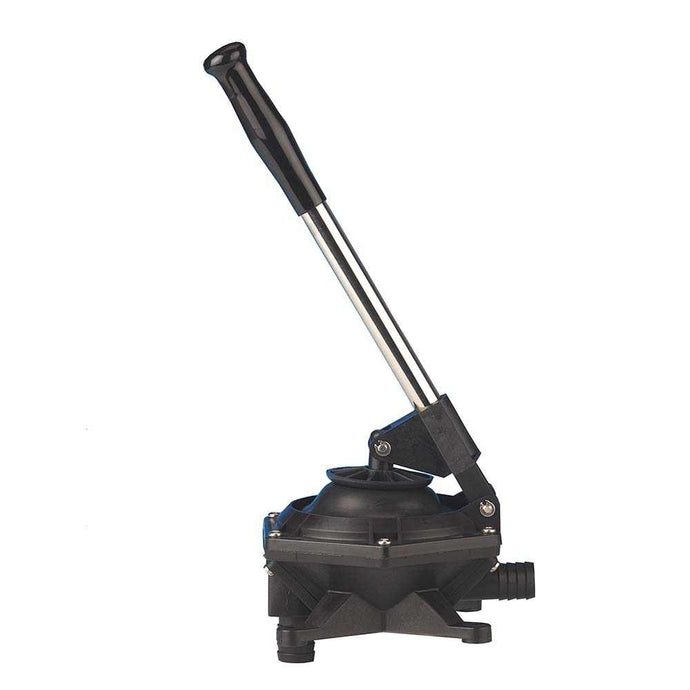

Jabsco Amazon Bulkhead Manual Bilge Pump – 29240-0000
The Jabsco Amazon Bulkhead Manual Bilge Pump (29240-0000) is a high-capacity, hand-operated bilge pump designed to provide reliable emergency dewatering when electrical systems are unavailable or compromised. Mounted directly to a bulkhead, this pump delivers powerful manual performance and dependable operation for sailboats, offshore cruisers, and safety-focused vessels.
Part of Jabsco’s trusted Amazon series, this bulkhead model offers smooth operation, high output, and proven durability in demanding marine environments.
Bulkhead-Mounted Emergency Bilge Pump
The bulkhead mounting design allows the pump to be securely installed in an accessible location below deck, providing quick response during emergencies. Its placement ensures consistent operation while maintaining a clean and organized bilge area.
High-Output Manual Pumping Performance
Featuring a double-acting diaphragm, the Amazon pump moves water on both the push and pull strokes. This design delivers excellent flow rates with less effort, allowing faster bilge evacuation when time matters most.
Double-Acting Diaphragm Technology
Unlike piston pumps, the diaphragm design handles bilge water containing debris more effectively, reduces internal wear, and maintains reliable suction over long service intervals.
Rugged Marine-Grade Construction
Built for harsh marine conditions, the 29240-0000 features corrosion-resistant materials, reinforced housings, and durable internal components. It is designed to withstand saltwater exposure, vibration, and heavy offshore use.
Simple Installation & Easy Maintenance
The bulkhead mounting configuration allows straightforward installation in a variety of vessel layouts. Jabsco’s widely available service kits and replacement parts ensure long-term serviceability and easy maintenance.
In the Box: 29240-0000
-
(1) Amazon Bulkhead Pump: Constructed from rugged, glass-filled nylon.
-
(1) Removable Stainless Steel Handle: Contoured grip for comfortable high-volume pumping.
-
(1) Integrated Mounting Bracket: Built-in flange for easy 4-screw installation.
-
(1) Nitrile Diaphragm: Pre-installed and resistant to oil, grease, and fuel.
-
(1) Instruction Manual: Includes maintenance guides and plumbing tips.
Key Features & Benefits
1. Simple Surface Mounting
The 29240-0000 is designed for the quickest possible installation. Since it mounts directly to the face of a bulkhead, you don't need to cut large holes in your deck or bulkheads—only the small holes for the mounting fasteners and the hose routing.
2. Multi-Position Ports
The pump features ports that can be rotated to suit your plumbing layout. This flexibility allows you to run your 1" (25mm) bilge hoses from almost any angle without creating sharp kinks that would restrict water flow.
3. Excellent Solids Handling
Like all Amazon series pumps, the Bulkhead model uses large-diameter internal valves. This allows it to pass small bits of bilge debris—such as wood chips or fiberglass strands—that would immediately clog a standard centrifugal electric pump.
4. Safety & Security
The handle is fully removable to prevent it from snagging sheets or lines while sailing. Additionally, the pump is made of non-corroding materials, ensuring that it won't seize up even after years of exposure to salt air and moisture.
Technical Specifications
| Feature | Details |
| Model Number | 29240-0000 |
| Flow Rate | 12 GPM (45 LPM) @ 70 strokes/min |
| Mounting Style | Bulkhead / Surface Mount |
| Port Size | 1" (25mm) Hose Barb |
| Self-Priming | Up to 13 ft (4m) |
| Max Head | 10 ft (3m) |
| Weight | 1.4 lbs (0.6 kg) |
Pro-Tip for Maintenance:
"Because this pump is often mounted in exposed areas like the cockpit, the Nitrile diaphragm can eventually dry out or stiffen. Every season, check the diaphragm for small 'spider cracks.' If you notice a loss in suction, it’s usually time for a Service Kit. Also, always keep the removable handle secured with its lanyard so it doesn't get lost overboard during a chaotic emergency."
Ideal Applications
-
Sailboats
-
Offshore cruising vessels
-
Emergency backup bilge systems
-
Boats without dependable electrical power
-
Safety-oriented marine installations
Why Choose Jabsco Amazon Bilge Pumps
Jabsco is a world-recognized leader in marine pumping and safety equipment. The Amazon series is trusted by sailors and professionals for its powerful manual performance, rugged construction, and long-term reliability. The 29240-0000 Bulkhead Manual Bilge Pump ensures dependable bilge control when you need it most.
Equip your vessel with the Jabsco Amazon Bulkhead Manual Bilge Pump – 29240-0000 for confidence-inspiring emergency dewatering capability.
Manufacturer : Jabsco
Manufacturer Part No : 29240-0000
