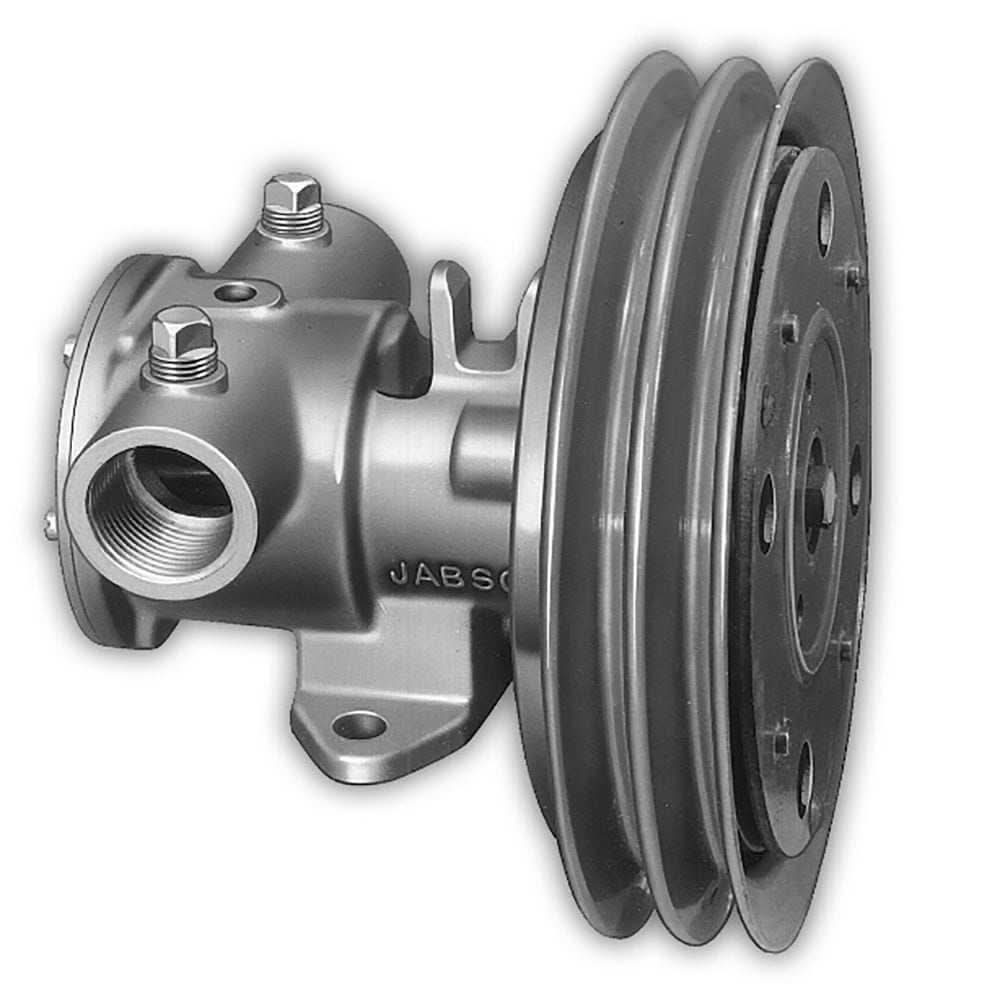

Jabsco 1-1/4" Electric Clutch Pump - Double A Groove Pulley - 12V - 11870-0005
Manufacturer Part #: 11870-0005
Couldn't load pickup availability
Jabsco 1-1/4" Electric Clutch Pump – Double A-Groove Pulley – 12V – 11870-0005
The Jabsco 11870-0005 Electric Clutch Pump is a heavy-duty, belt-driven marine pump designed to provide on-demand seawater circulation for air conditioning, refrigeration, and auxiliary cooling systems. Featuring a 1-1/4 inch hose connection, double A-groove pulley, and 12-volt electric clutch, this pump delivers reliable, efficient performance while reducing unnecessary wear when the pump is not in use.
This model is ideal for vessels requiring high-flow raw water circulation with the convenience of electrically controlled engagement.
Electric Clutch – On-Demand Operation
The integrated 12V electric clutch allows the pump to engage only when water flow is required. This minimizes belt wear, reduces engine load, and extends pump life—making it ideal for marine air conditioning and cooling systems that cycle on and off.
High-Capacity 1-1/4" Flow
With 1-1/4 inch inlet and outlet ports, this pump is engineered for higher flow applications, ensuring consistent seawater delivery to HVAC systems, chillers, or heat exchangers even in demanding conditions.
Double A-Groove Pulley Design
The double A-groove pulley provides improved belt grip and torque transfer, reducing slippage and ensuring reliable operation at varying engine speeds. This design supports stable performance in continuous-duty marine environments.
Marine-Grade Construction
Built specifically for harsh marine use, the 11870-0005 features:
-
Corrosion-resistant bronze pump body
-
Stainless steel hardware
-
Heavy-duty bearings and seals
-
Proven Jabsco impeller technology
These components ensure long service life in saltwater applications.
Serviceable & Compatible Design
The pump is designed for easy maintenance with replaceable impellers and service kits readily available. It is commonly used as an OEM or replacement pump in marine HVAC and cooling systems.
Key Features & Benefits
-
Remote Engagement: The 12V electric clutch allows the pump to be activated via a remote switch, saving wear and tear on the impeller when the pump is not in use.High-Flow Performance: Delivers up to 23 gallons per minute (GPM), ensuring rapid water evacuation or high-pressure cleaning.
-
Self-Priming: Capable of self-priming up to 10 feet (3m) of vertical lift, providing versatility in installation locations.
-
Durable Construction: Features a high-quality bronze head and a mechanical face-type seal for extended service life in harsh saltwater conditions.
-
Double A Groove Pulley: Designed for secure belt drive integration with standard engine configurations.
Technical Specifications
| Attribute | Details |
| Inlet/Outlet Ports | 1-1/4” NPT Internal |
| Voltage/Amperage | 12V DC / Approx. 4 Amps for Clutch Engagement |
| Max Flow Rate | 23 Gallons Per Minute (87 Liters Per Minute) |
| Pulley Type | 7" Diameter, Double "A" Section Groove |
| Impeller Compound | Neoprene (Standard) |
| Seal Type | Mechanical Face-Type |
| Weight | Approx. 15 lbs (6.8 kg) |
Why Choose the Jabsco 11870-0005?
For commercial fishers and serious cruisers, the ability to engage a high-capacity pump at the flip of a dash switch is a critical safety feature. Whether you are managing a leak or hosing down a deck after a long day of fishing, this Jabsco pump provides the mechanical power and "workhorse" reliability that electric-only centrifugal pumps simply cannot match.
Pro Tip: Always ensure the pump is mounted in an accessible location for easy impeller inspection and seasonal maintenance.
In the Box
-
Jabsco 11870-0005 Electric Clutch Pump
-
Pre-installed Neoprene Impeller
-
Installation Guide & Performance Curve Data
Ideal Applications
-
Marine air conditioning systems
-
Marine refrigeration units
-
Seawater cooling loops
-
Commercial and recreational vessels
-
Engine-driven raw water circulation with clutch control
Why Choose Jabsco Electric Clutch Pumps
Jabsco is a global leader in marine fluid handling solutions, trusted for durability, performance, and serviceability. The 11870-0005 Electric Clutch Pump delivers precise control, high flow capacity, and long-term reliability for demanding marine systems.
Equip your vessel with the Jabsco 1-1/4" Electric Clutch Pump – Double A-Groove Pulley – 12V – 11870-0005 for efficient, on-demand seawater circulation you can rely on.
Maintenance & Safety Note
Caution: Do not run the pump dry for extended periods. The neoprene impeller relies on the liquid being pumped for lubrication. For cold-weather climates, ensure the pump body is drained during winterization to prevent casing damage from freezing.
