Johnson Pump Ultima Bilge 1000 GPH 3/4" Hose Dura Port - 32-47260-003

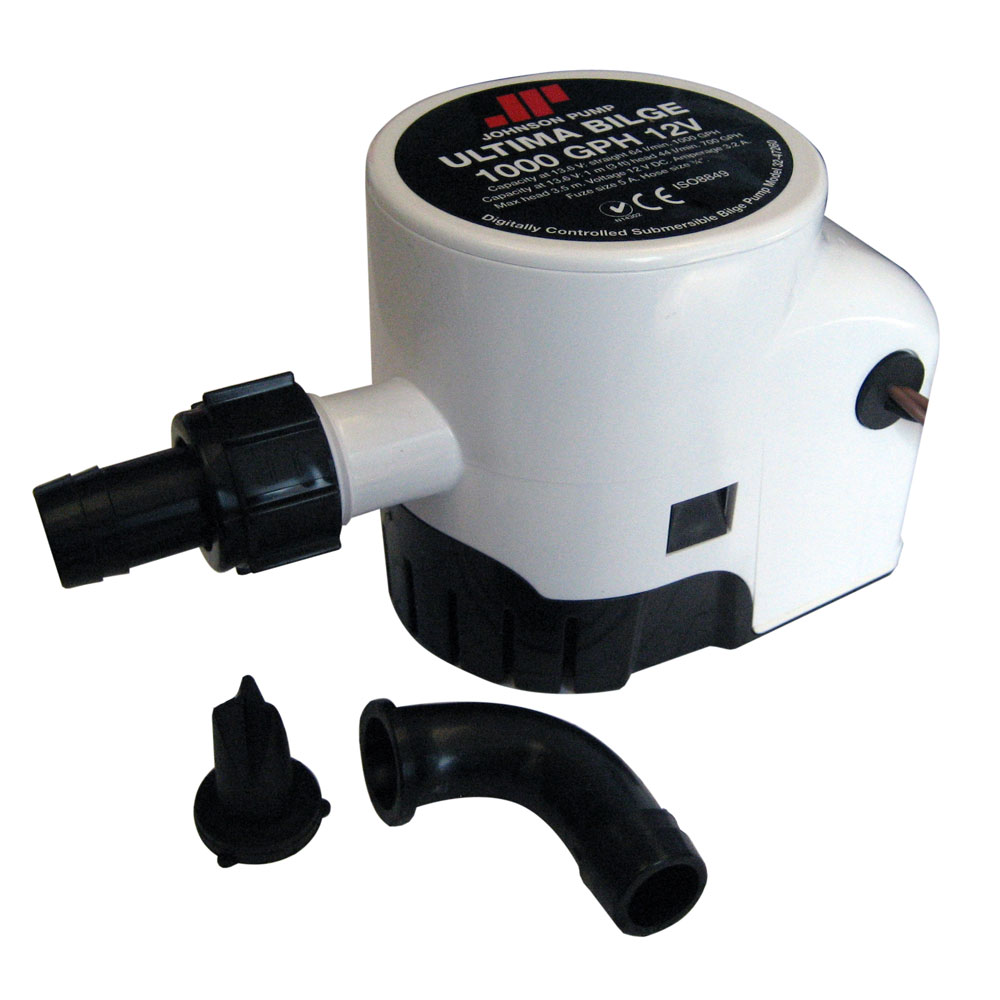

Johnson Pump Ultima Bilge 1000 GPH w/ Integrated Switch (32-47260-003)

The Johnson Pump 32-47260-003 is an advanced, high-performance automatic bilge pump that combines a powerful 1000 GPH motor with integrated solid-state sensing technology. Part of the Ultima series, this pump features a "no moving parts" switch, making it incredibly reliable in dirty bilge environments where traditional mechanical float switches often fail.

Smart, Clog-Free Automation

Unlike standard automatic pumps that use a physical float arm, the Ultima Bilge uses patented Mirus field-effect detector cells. These sensors detect water levels without being affected by oil, debris, or soap scum. The pump automatically activates when water reaches a 2" level and shuts off when it drops to 3/4", providing completely hands-off bilge management

Key Features:

• Integrated Ultima Switch: Features a solid-state electronic switch with no moving parts to jam, corrode, or wear out.

• High-Flow 1000 GPH Motor: Delivers powerful water removal for mid-sized vessels, skiffs, and cruisers.

• Dura-Port Discharge: Includes a high-impact Dura-Port discharge port that resists stress cracking caused by over-tightened hose clamps.

• Straight and 90° Elbows: Comes with both straight and 90-degree 3/4" Dura-Port fittings, allowing for versatile hose routing in tight bilges.

• Removable Cartridge Design: The motor and impeller unit can be unclipped from the base for easy cleaning or replacement without disturbing the plumbing or mounting screws.

• Environmentally Friendly: The electronic sensors are designed to detect water only; they will not activate the pump if they detect a thick layer of engine oil on the surface.

• Compact Footprint: The sleek, unified design takes up less space than a separate pump and float switch combination.

Technical Specifications:

• Model Number: 32-47260-003

• Flow Rate (0ft Head): 1000 GPH (63 L/min)

• Voltage: 12V DC

• Amperage: 3.2 Amps

• Fuse Size: 5 Amps

• Discharge Size: 3/4" (19mm)

• Dimensions: 4.1" H x 3.2" W x 5.6" L

• Weight: 1.4 lbs

Why Choose the Ultima Bilge 1000?

The 32-47260-003 is the perfect upgrade for boaters tired of stuck float switches. Because the switch is built into the pump housing, there is no risk of a stray wire or piece of debris wedging the float "on" (draining your battery) or "off" (risking a flooded boat). Its high-capacity 1000 GPH motor provides an extra level of security for coastal and offshore trips.

Installation Note:

For a proper 3-wire installation (Auto/Off/Manual), pair this pump with a standard 3-way bilge pump switch panel. This allows you to manually override the sensor if you want to pump the bilge completely dry or test the pump's operation.
