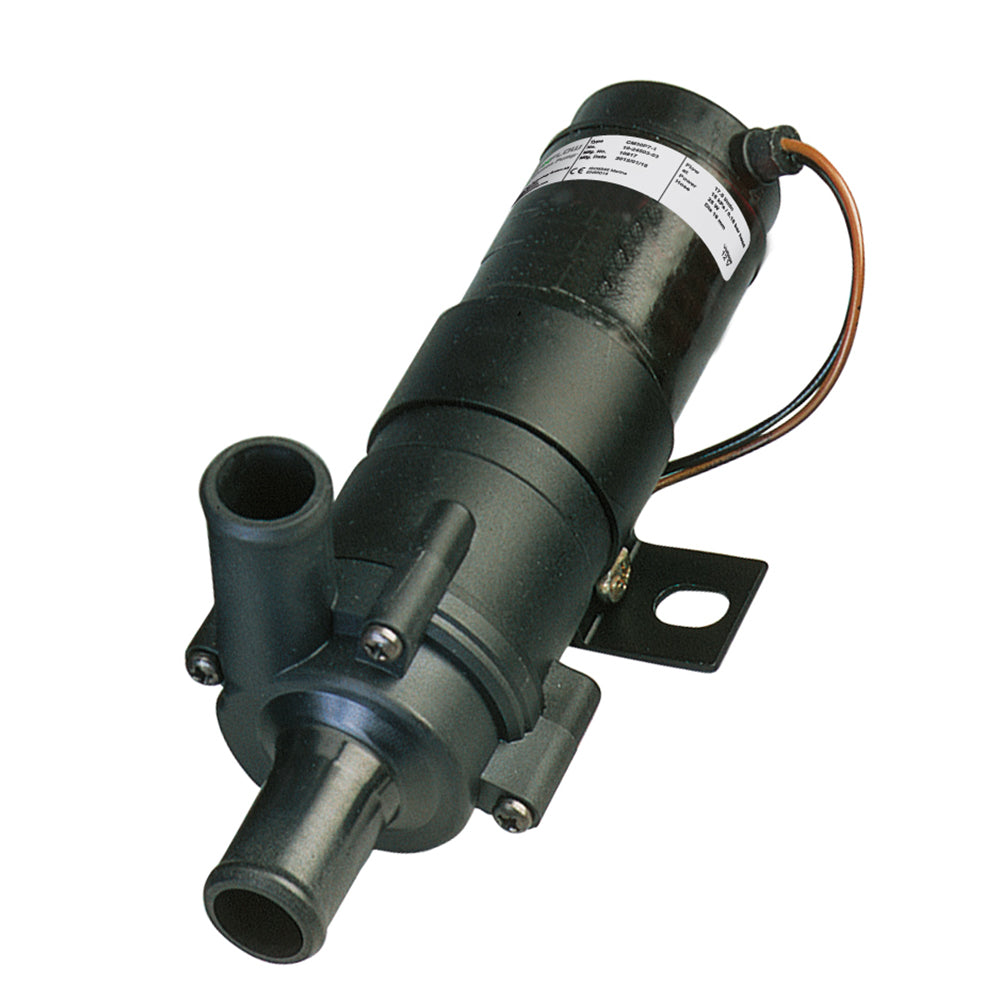

Johnson Pump CM30P7-1 - 12V - Circulation Pump - 10-24504-03

Key Performance Features

• Magnetic Drive: The impeller is driven by a magnetic field, ensuring a leak-proof chamber and significantly reducing friction and wear.

• Continuous Duty: Rated for 24/7 operation, making it ideal for freshwater cooling systems or hot water circulation.

• Liquid Compatibility: Designed to handle water/glycol mixtures (antifreeze) at temperatures ranging from -40°C to +100°C (-40°F to 212°F).

• Dry-Running Protection: The pump can survive short periods of dry running without immediate catastrophic damage, unlike standard centrifugal pumps.

• Ignition Protected: Rated ISO 8846, making it safe for installation in gasoline engine compartments.

Technical Specifications

What’s In The Box | Johnson Pump 10-24504-03

• 1 x Johnson CM30P7-1 Circulation Pump: The main pump assembly with a high-efficiency brushless motor and a magnetically driven impeller housing.

• 1 x Stainless Steel Mounting Bracket: A heavy-duty, wrap-around clamp designed to secure the pump body to a bulkhead or engine stringer.

• Integrated Wiring Pigtail: A short lead of marine-grade electrical wire pre-connected to the motor housing for splicing into your 12V system.

• Protective Port Caps: Plastic caps on the 20mm (3/4") inlet and outlet ports to keep the internal chamber clean until installation.

• Installation & Technical Manual: Includes the performance flow curve, wiring diagrams, and liquid compatibility charts.

Critical Pre-Installation Checks

1. Hose Clamps: The box does not include hose clamps. You will need two high-quality stainless steel (316 grade) worm-gear clamps for the 3/4" hoses.

2. Mounting Hardware: While the bracket is included, the screws or bolts to attach that bracket to your boat are not, as requirements vary by mounting surface (wood, fiberglass, or metal).

3. Fuse: You will need to provide a 3A fuse and fuse holder, as it is required to protect the electronic circuitry of the brushless motor.

Pro-Tip: Plumbing Direction

The pump housing has a molded arrow indicating the direction of flow. Before finalizing your hose runs, double-check that your "Suction" line is attached to the center port and your "Discharge" line is attached to the tangential port (the one pointing to the side).

Installation Guidelines

• Priming: Note that this is a centrifugal pump, not self-priming. It must be mounted below the liquid level (flooded suction) or manually primed before use.

• Orientation: The pump should be mounted horizontally or vertically with the motor head above the pump body to prevent air pockets from forming in the impeller chamber.

• Wiring: Use 16 AWG marine-grade wire for runs up to 10 feet. Always use a fuse (3A recommended) to protect the brushless motor.
