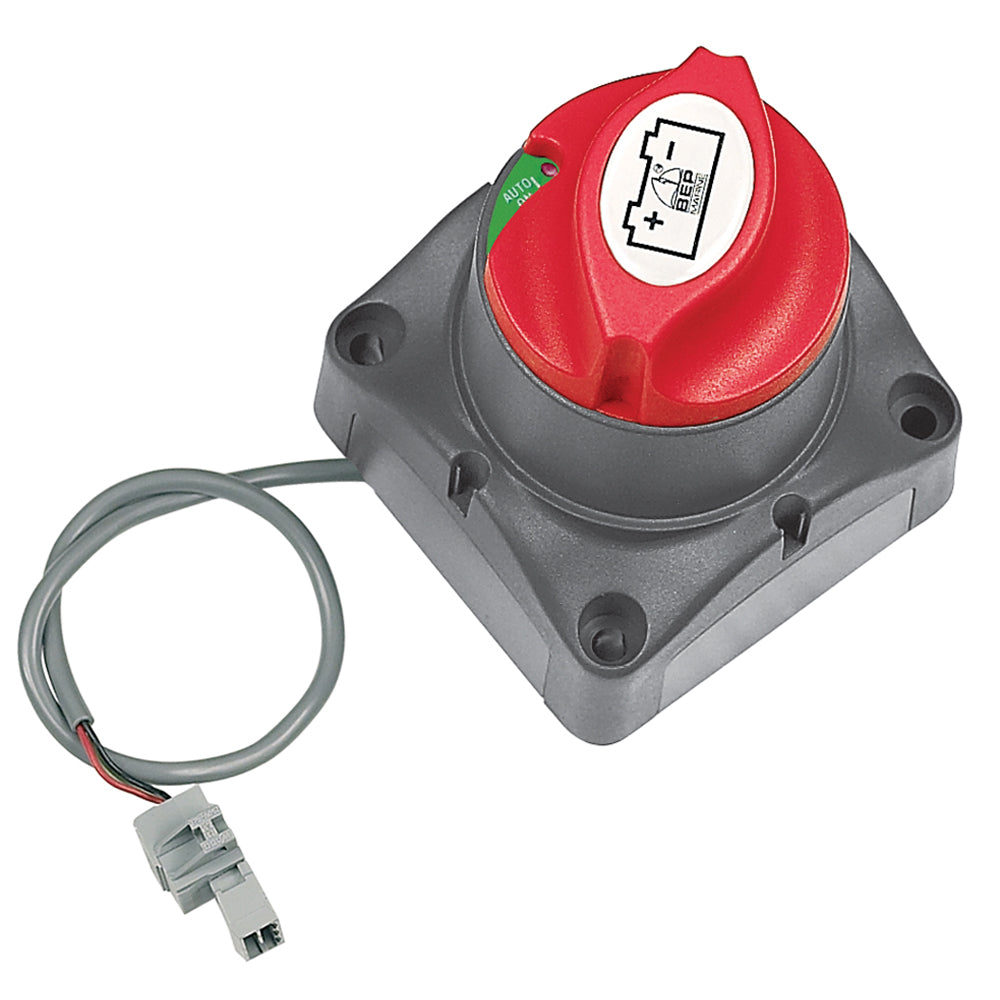

BEP Remote Operated Battery Switch - 275A Cont - 701-MD

Key Performance Features

• Remote Operation: Can be controlled by a simple ON/OFF toggle or rocker switch at the helm. It uses a low-current signal to engage the heavy-duty motorized internal contacts.

• Manual Override: The top knob can be rotated manually to lock the switch ON or OFF. This is a critical safety feature that satisfies USCG and ABYC requirements for a physical disconnect.

• Contour Lock System: Features the patented BEP "Contour Lock" molding, allowing the switch to be ganged together with other BEP battery distribution products for a clean, modular installation.

• High Amperage Rating: With a 275A continuous rating, it is capable of handling the high-current demands of modern outboards and large house battery banks.

• LED Status Indicator: The unit features an integrated LED that indicates whether the switch is in the "On" or "Off" position, providing clear visual feedback at the unit.

Technical Specifications

In The Box

• 1 x BEP 701-MD Motorized Switch

• Removable Side Plates (for cable entry)

• Rear Insulation Cover

• Installation Instructions

Installation & Operation Tips

• Power Draw: The motor only draws power while it is actively switching positions. Once in position, the internal mechanism is magnetically latched, meaning it draws zero current while sitting in the ON or OFF state.

• Wiring: You will need to run three small-gauge wires (Positive, Negative, and Control) from the switch to your helm. The main battery cables remain short and efficient, located right at the battery bank.

• Emergency Safety: If your house batteries go completely flat, you can still manually turn the knob on the 701-MD to the "ON" position to engage a backup or start battery.
