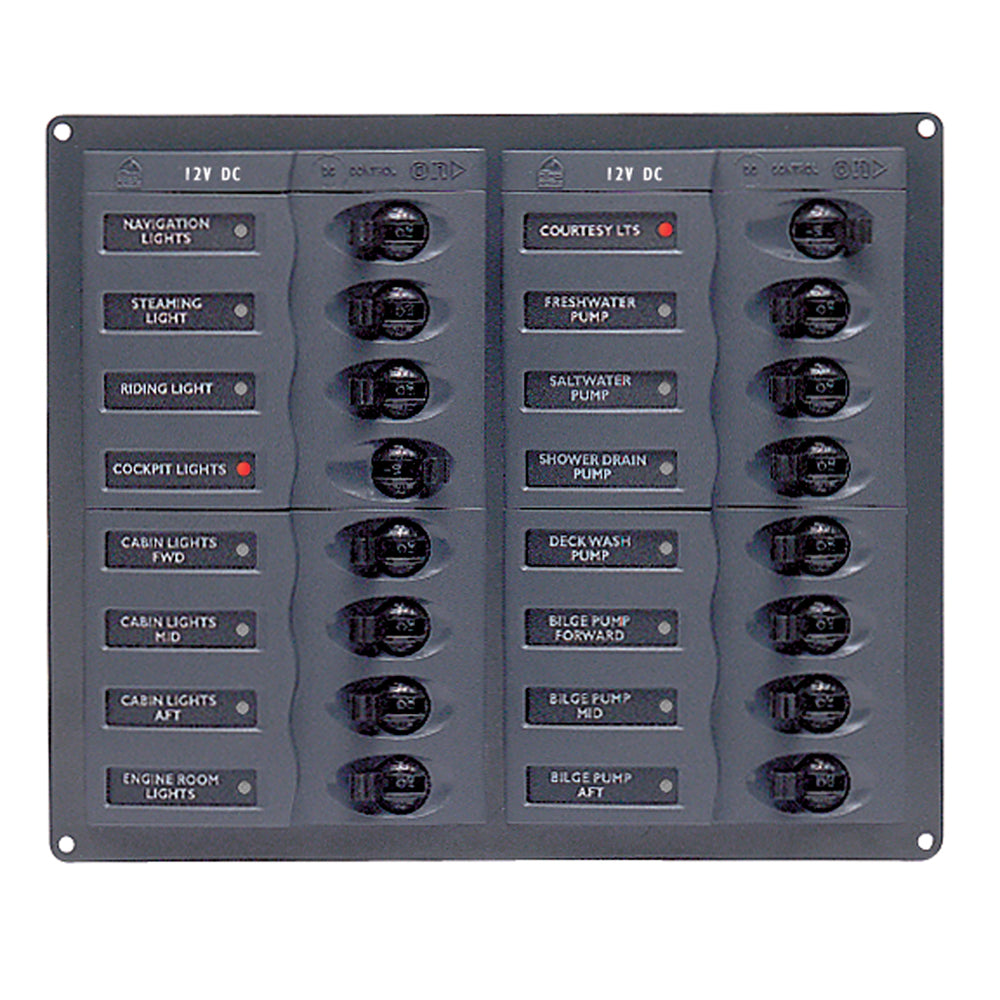

BEP DC Panel - 16-Way - No Meter - 904NM

DC Panel - 16-Way - No Meter

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 12 Loads
Circuit Breakers: 4X 5A, 5X 10A, 5X 15A, 1X 20A, 1X 25A
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 7.9" X 9.75" X 2.5"
Neg Bus: 12 Way

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : BEP Marine
Manufacturer Part No : 904NM
UPC : 870216002156
