Bennett Marine One Box Dual Station for Hydraulic Systems - OBI9000H-DS
Manufacturer Part #: OBI9000H-DS
Couldn't load pickup availability
Bennett Marine One Box Dual Station Control for Hydraulic Trim Tab Systems – OBI9000H-DS
The Bennett Marine One Box Dual Station (OBI9000H-DS) is an advanced control solution designed to simplify and modernize hydraulic trim tab systems on dual-helm boats. By integrating multiple control functions into a single compact module, this innovative system significantly reduces wiring, installation time, and system complexity—making it an ideal upgrade for vessels with upper and lower helm stations.
Built specifically for Bennett hydraulic trim tab systems, the One Box Dual Station replaces traditional hydraulic control units and relays with a streamlined, centralized controller that delivers reliable, responsive trim tab operation from both helm locations.
Simplified Dual-Station Trim Tab Control
The One Box Dual Station system allows seamless operation of hydraulic trim tabs from two independent helm stations. Whether piloting from the flybridge or the main helm, boaters benefit from smooth, consistent trim control without lag or confusion between stations.
Reduced Wiring & Faster Installation
Unlike conventional dual-station hydraulic setups that require multiple control boxes and extensive wiring, the Bennett One Box design consolidates all functions into one compact control module. This dramatically reduces wire runs, lowers installation labor, and minimizes potential failure points—improving long-term reliability.
Engineered for Marine Reliability
Designed and manufactured by Bennett Marine, a leader in trim tab technology, the OBI9000H-DS is built to withstand harsh marine environments. Its rugged construction and proven electronics ensure dependable performance in both saltwater and freshwater applications.
Key Features
-
Integrated Design: The relay module is built into the keypad, removing the bulky external "black box" required by older EIC (Electronic Indicator Control) systems.
-
Dual Station Support: Includes the hardware and wiring needed to operate the trim tabs from two independent locations on the boat.
-
Auto Tab Retraction (ATR): Automatically retracts the tabs to the full "Up" position when the engine ignition is turned off, protecting them from marine growth and damage during storage/trailering.
-

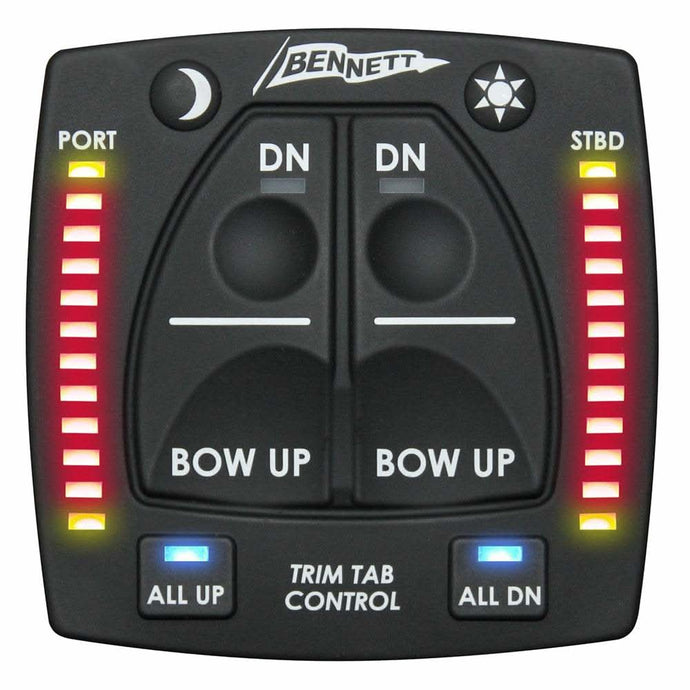

Visual LED Indicators: High-intensity LEDs show the exact position of your trim tabs at a glance, with variable intensity for day or night visibility.7
-
"All Up" & "All Down" Buttons: One-touch buttons to fully retract or deploy both tabs simultaneously.
-
Retrofit Friendly: Designed to be compatible with existing Bennett hydraulic power units (HPU) and many other trim tab brands.
Technical Specifications
| Specification | Details |
| Manufacturer | Bennett Marine |
| Model Number | OBI9000H-DS |
| System Type | Hydraulic (Compatible with V351HPU1, etc.) |
| Voltage | 12V (24V versions typically available separately) |
| Control Type | Integrated Helm Control with Indication |
| Number of Stations | 2 (Dual Station) |
| Hole Saw Size | 2.5" (64mm) for helm mounting |
| Water Resistance | Marine-grade, water-resistant keypad |
What’s Typically in the Box?
While some retailers use a generic list, a true DS (Dual Station) kit is designed to provide everything needed for two helms:
-
Primary Integrated Helm Display: The "Master" unit with built-in relay circuitry.
-
Secondary Integrated Helm Display: The "Slave" unit for the second station.
-
Bridge Wiring Harness: Cables to link the two helm stations together.
-
Actuator Upper Hinges (with Sensors): Replacement hinges for your hydraulic rams that contain the sensors needed to "read" tab position.
-
Sensor Extension Cables: Usually (2) 20-foot cables to run from the transom to the helm.
-
Hardware Kit: Connectors and mounting hardware for the retrofit.
[!TIP]
Check your Actuators: This kit includes the sensor-equipped upper hinges.14 If your current actuators do not have sensors (common on older "Standard" systems), you will need to replace the upper hinges with the ones provided in this kit to enable the LED position indicators
🛥️ Ideal Applications
The Bennett Marine One Box Dual Station (OBI9000H-DS) is ideal for:
-
Sportfishing boats with flybridges
-
Cruisers with upper and lower helms
-
Yachts requiring dual-station trim tab control
-
Retrofit or new hydraulic trim tab installations
Why Choose Bennett Marine One Box
Bennett Marine’s One Box technology represents a major step forward in trim tab control systems. By combining advanced engineering with practical installation benefits, the OBI9000H-DS delivers simpler setup, improved reliability, and intuitive dual-station control—all backed by Bennett’s trusted marine expertise.
Upgrade your vessel’s trim tab system with the Bennett Marine One Box Dual Station Control for Hydraulic Systems (OBI9000H-DS) and enjoy streamlined installation and dependable dual-helm performance on every trip.
Manufacturer : Bennett Marine
Manufacturer Part No : OBI9000H-DS
Bennett Marine One Box Dual Station for Hydraulic Systems - OBI9000H-DS is backordered and will ship as soon as it is back in stock.
