Bennett Marine Hydraulic Power Unit 12V w/Deutch Connector - V351HPU1D

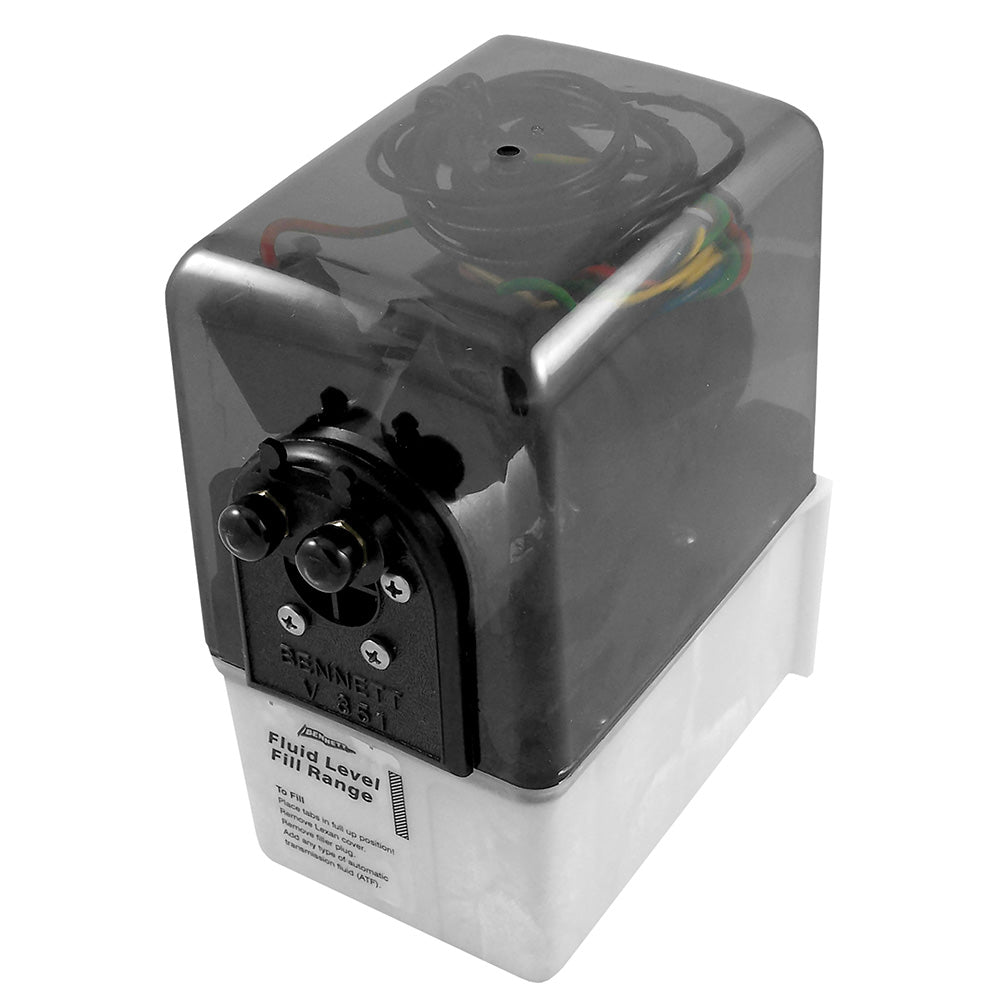

Hydraulic Power Unit 12V with Deutch Connector

A compact powerhouse that creates hydraulic pressure to lower and raise the trim tabs. It employs two solenoid valves to direct the flow of fluid to the actuators. The solenoid valves lock tightly to secure the tabs in place. Strength to lower and hold even the largest tabs in place. The Lexan cover provides water resistance to the electrohydraulic unit, and the translucent reservoir allows fluid check at a glance.

The mounting bracket is sold separately (# H1179). HPU measures 4″ x 7 1/2″ x 5 1/2″. Uses automatic transmission fluid. Includes pump, solenoid valves, reservoir, and cover.
