Bennett M120ATP Sport Tab System with Auto Trim Pro

Name: Bennett M120ATP Sport Tab System with Auto Trim Pro
Brand: Bennett Trim Tabs
Price: 1002.99 USD
Availability: InStock

$1,002.99 ~~$1,354.00~~

SKU: 68944

Manufacturer Part #: M120ATP

Bennett M120ATP Sport Tab System with Auto Trim Pro

The Bennett M120ATP Sport Tab System with Auto Trim Pro is an advanced trim tab solution designed to automatically optimize boat performance, handling, and ride comfort. Combining Bennett’s proven Sport Tab trim planes with the intelligent Auto Trim Pro (ATP) control system, this package delivers hands-free trim adjustment for smoother operation in changing conditions.

The 12" x 10" Sport Tabs are engineered with a hydrodynamic design that generates efficient lift while minimizing drag. This helps boats plane faster, reduce bow rise, correct list, and maintain better visibility at the helm. The system is ideal for center consoles, bowriders, bay boats, and performance-oriented recreational vessels.

The included Auto Trim Pro control automatically adjusts trim tabs based on boat speed, acceleration, and attitude. During hole shot, ATP deploys the tabs for faster planing, then retracts them as speed increases to maintain optimal running angle and fuel efficiency. The result is consistent performance without constant manual adjustments, allowing the operator to focus on driving and navigation.

Built with marine-grade stainless steel components and corrosion-resistant materials, the Bennett M120ATP system is designed for dependable operation in both freshwater and saltwater environments. Whether upgrading an existing trim tab system or installing a new one, this package provides intelligent control backed by Bennett Marine’s long-standing reputation for quality and reliability.

Key Performance Features

AutoTrim Pro Control: Automatically adjusts tabs to maintain your favorite running attitude. Includes built-in LED indicators, manual override, and "favorite" presets.
Batwing Tab Design: The $10" \times 12"$ stainless steel planes feature a unique shape that funnels water more efficiently, providing significantly more lift for faster "hole shots."
Hydraulic Precision: Uses the legendary Bennett V351HPU1 hydraulic power unit for smooth, powerful, and ultra-reliable tab deflection under high-speed pressure.
Hole Shot Assistance: The ATP system detects acceleration and automatically deploys the tabs to get the bow down and the boat on plane quickly, saving fuel.
Auto Tab Retraction (ATR): Automatically retracts the tabs to the full "Up" position when the engine is turned off to prevent damage during trailering.

Technical Specifications

Feature	Details
Model Number	M120ATP
Tab Dimensions	$10"\text{ Span} \times 12"\text{ Chord}$
Recommended Boat Size	20' to 23' (Sport & Performance Boats)
Actuator Type	Hydraulic (A1101A)
Construction	304 Stainless Steel
Voltage	12V DC
Lift Performance	30% more lift than standard rectangular tabs

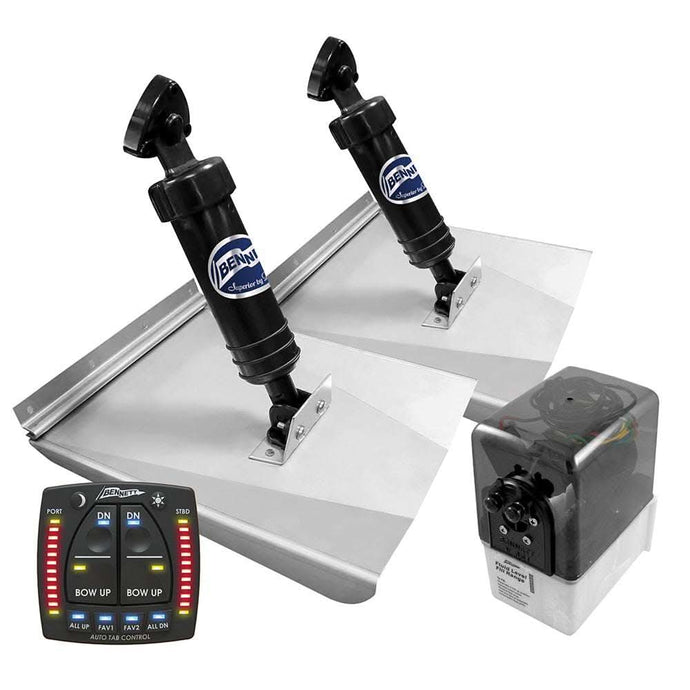

In The Box

2 x M120 Stainless Steel Sport Tabs ( $10" \times 12"$ )
2 x Hydraulic Actuators (A1101A)
1 x Hydraulic Power Unit (V351HPU1)
1 x AutoTrim Pro Control Keypad & Control Unit
20' Hydraulic Tubing & Installation Hardware

Installation Note: Transom Clearance

Because these are Sport Tabs, they are designed for tight spaces. You need approximately 14 inches of vertical height on the transom for the standard actuator. If you have a swim platform or an exceptionally low transom, you may need to swap the standard actuators for Short Actuators (A1200S).

The Bennett M120ATP Sport Tab System with Auto Trim Pro delivers smart, automatic trim control that enhances safety, efficiency, and overall boating performance—making every trip smoother and more enjoyable.
