Bennett Electric Actuator for BOLT - BEA2000
Manufacturer Part #: BEA2000
Couldn't load pickup availability

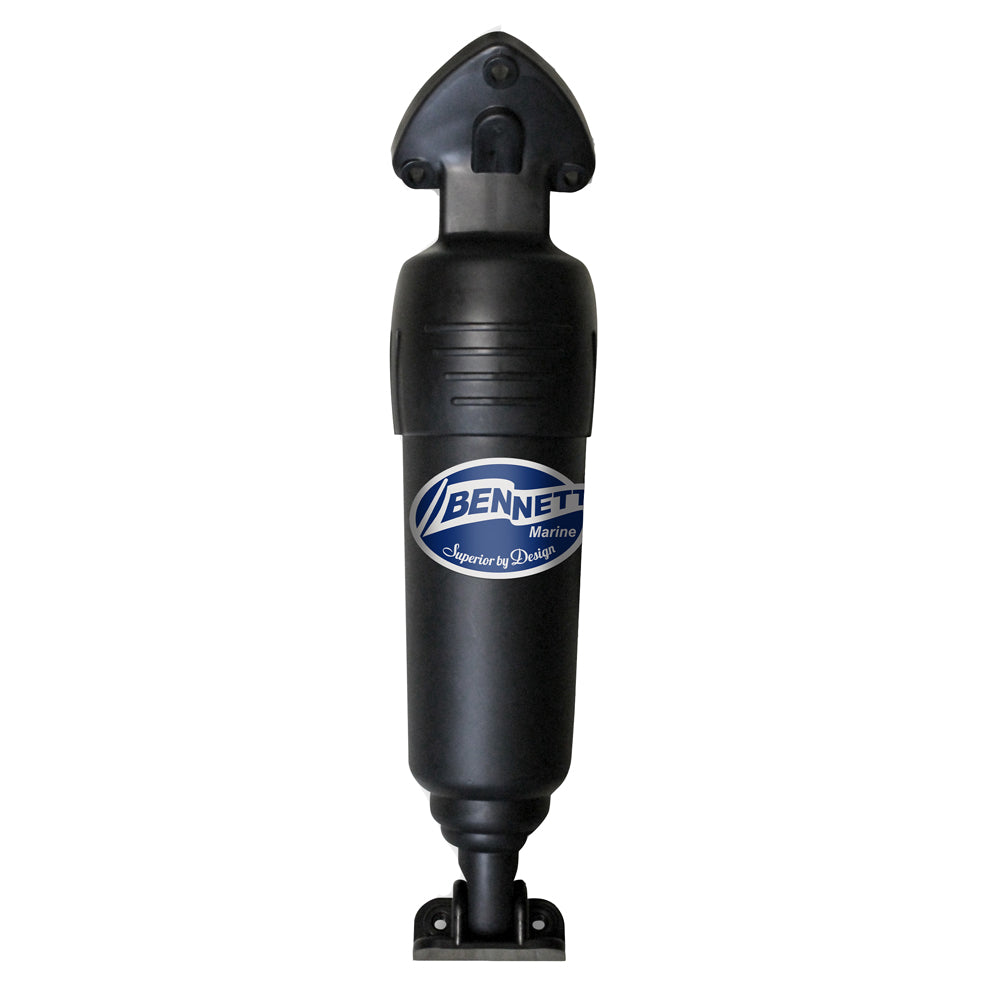

Bennett BEA2000 Electric Actuator for BOLT Trim Tab Systems
The Bennett BEA2000 Electric Actuator is a direct-replacement actuator designed specifically for Bennett BOLT electric trim tab systems. Engineered for precision, durability, and fast response, this actuator delivers reliable trim tab movement to optimize boat performance, handling, and ride comfort.
Built with a fully sealed, corrosion-resistant housing, the BEA2000 is ideal for harsh marine environments and requires no hydraulic fluid or pumps, making it virtually maintenance-free. The electric design provides instant, accurate trim adjustments, improving planing time, reducing bow rise, and correcting side-to-side listing.
The BEA2000 actuator is plug-and-play compatible with Bennett BOLT trim tabs and control systems, making it an excellent solution for replacement, repairs, or system upgrades.
Key Performance Features
-
Fully Sealed Design: The actuator is completely submersible and features a double O-ring seal to prevent water intrusion, ensuring a long life even in saltwater.
-
Plug & Play Connectivity: Features a heavy-duty waterproof connector that snaps into the BOLT wiring harness, eliminating the need for messy wire stripping and crimping at the transom.
-
Quiet & Precise: Moves with smooth, silent operation and provides immediate feedback, allowing for micro-adjustments to your boat's pitch and roll.
-
Nylon Construction: The outer casing is made of high-impact, UV-resistant fiberglass-reinforced nylon that won’t corrode or rust.
-
Fixed Upper Hinge: Designed for a clean installation with a 5-foot wire lead that passes through the transom, keeping all electrical connections inside the dry hull.
Technical Specifications
| Feature | Details |
| Model Number | BEA2000 |
| System Compatibility | Bennett BOLT Electric Systems Only |
| Voltage | 12V DC |
| Stroke Length | 2.5 Inches |
| Length (Compressed) | 13.25" (Center of pin to center of pin) |
| Material | Fiberglass-Reinforced Nylon |
| Wiring | 5-Foot Lead with Waterproof Connector |
In The Box
-
1 x BEA2000 Electric Actuator
-
Upper and Lower Mounting Hardware (Pins and clips)
-
Installation Instructions
Important Note: The BEA2000 is not a direct replacement for Bennett's Hydraulic (Classic) actuators. If you are converting from hydraulic to electric, you will need the BOLT Conversion Kit, not just the individual actuator.
Trusted by boaters worldwide, Bennett Marine electric trim tab components are known for their reliability and performance. The BEA2000 Electric Actuator ensures your BOLT trim tab system continues to deliver smooth, responsive control in all operating conditions.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Bennett Electric Actuator for BOLT - BEA2000 is backordered and will ship as soon as it is back in stock.
