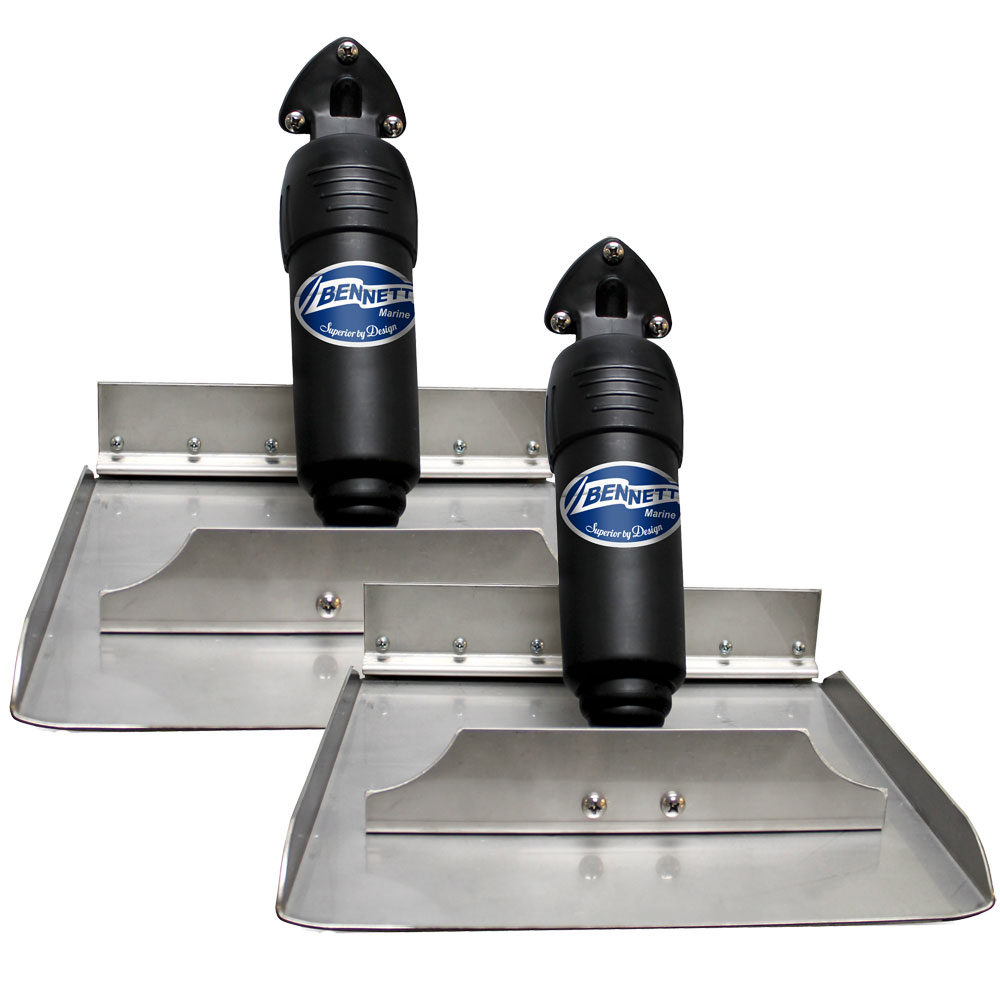

Bennett BOLT 24" x 12" Electric Trim Tab System – Control Switch Required (BOLT2412)
The Bennett BOLT 24" x 12" Electric Trim Tab System is a high-performance, maintenance-free solution designed to dramatically improve boat handling, acceleration, and ride comfort. Ideal for mid- to large-size powerboats, the BOLT2412 system helps reduce bow rise, improve time to plane, and correct side-to-side listing caused by uneven loads or sea conditions.
Featuring 24" x 12" stainless steel trim planes, this system provides increased lift and precise control without the complexity of hydraulic components. Bennett’s sealed electric actuators deliver fast, accurate trim adjustments while eliminating hydraulic pumps, hoses, and fluid—making installation simpler and long-term maintenance virtually nonexistent.
The BOLT2412 system requires a compatible Bennett BOLT control switch (sold separately), allowing boaters to choose the control style that best fits their helm layout and operating preferences.
Key Performance Features
-
BEA2000 Electric Actuators: These high-torque actuators are completely sealed and feature a "plug-and-play" waterproof connection. They are designed for silent operation and a long life in saltwater.
-
12-Gauge 304 Stainless Steel: The planes are heavy-duty and corrosion-resistant, featuring Bennett's interlocking hinge for superior transom strength.
-
Instant Deployment: Electric systems react immediately to switch input, making them ideal for high-speed adjustments where timing is critical.
-
Nylon Actuator Casing: The actuators are made of high-impact, UV-resistant fiberglass-reinforced nylon that is 100% corrosion-proof.
-
No Fluid Required: Eliminates the need for a hydraulic pump and ATF fluid, simplifying the installation and maintenance process.
Technical Specifications
| Feature | Details |
| Model Number | BOLT2412 |
| Tab Dimensions | |
| Recommended Boat Size | 25' to 31' |
| Material | 12-Gauge 304 Stainless Steel |
| Voltage | 12V DC |
| Actuator Type | Electric (BEA2000) |
| System Type | Control Switch Required |
In The Box
-
2 x 24" x 12" Stainless Steel Trim Planes
-
2 x BEA2000 12V Electric Actuators (with 6ft leads)
-
1 x BOLT Relay Control Box (The "brain" of the system)
-
All necessary mounting hardware and templates
Required Helm Controls
This kit does not function without a compatible BOLT helm control. You must select one of the following to complete your system:
-
BRC4000: Standard Rocker Switch (Manual only, simple operation).
-
OBE4000: BOLT Indicator Control (Adds LED lights to show tab position).
-
AutoTrim Pro for BOLT: Adds automatic leveling and "favorite" presets.
Built with Bennett Marine’s proven engineering and reliability, the Bennett BOLT 24 x 12 Electric Trim Tab System is an excellent choice for boaters seeking powerful trim control, cleaner installation, and long-lasting performance.
