Bennett 2412ATP 24 x 12 Hydraulic Trim Tabs with ATP

Name: Bennett 2412ATP 24 x 12 Hydraulic Trim Tabs with ATP
Brand: Bennett Trim Tabs
Price: 1007.99 USD
Availability: InStock

$1,007.99 ~~$1,360.00~~

SKU: 71253

Manufacturer Part #: 2412ATP

Bennett 24 x 12 Hydraulic Trim Tabs with Auto Trim Pro (ATP) – 2412ATP

Enhance your vessel’s performance with the Bennett 24 x 12 Hydraulic Trim Tabs with Auto Trim Pro (ATP) — a rugged, premium maritime solution engineered for serious boaters. Designed by Bennett Marine, this complete hydraulic trim tab system delivers unmatched control, stability, and handling across a wide range of sea conditions.

Built for power and precision, the 2412ATP kit helps your boat get on plane faster, maintain optimal running attitude, and improve fuel efficiency by fine-tuning the bow angle with ease. Its hydraulic design offers fast, reliable actuation while enduring the harsh marine environment for extended service life.

Equipped with Auto Trim Pro (ATP) technology, this trim tab system automatically adjusts to changes in speed, sea state, and load distribution — giving you smoother rides and better equilibrium without constant manual corrections.

Key Performance Features

AutoTrim Pro (ATP) Control: Automatically levels your boat based on pre-set "favorite" positions. It features LED indicators for tab position, manual override, and a "Hole Shot" mode that gets the bow down faster during acceleration.
Massive 24x12 Planes: The wide $24"$ span is highly efficient, generating lift with minimal drag. These are constructed from heavy-duty 304 stainless steel with Bennett’s interlocking hinge design for maximum transom strength.
Hydraulic Precision: Unlike electric tabs, Bennett's hydraulic actuators can withstand thousands of pounds of force without slipping, making them the gold standard for offshore and heavy-duty use.
Auto Tab Retraction (ATR): Automatically pulls the tabs to the full "Up" position when you turn off the ignition, protecting the stainless steel from marine growth and preventing damage during trailering.
Durability & Serviceability: Hydraulic systems are famous for longevity. If a component eventually fails, the individual parts (valves, tubing, actuators) are inexpensive and easy to replace compared to sealed electric units.

Technical Specifications

Feature	Details
Model Number	2412ATP
Tab Dimensions	$24"\text{ Span} \times 12"\text{ Chord}$
Recommended Boat Size	25' to 31'
Actuator Type	Hydraulic (A1101A)
Voltage	12V DC (24V available)
Material	12-Gauge 304 Stainless Steel
Control System	AutoTrim Pro (Automatic & Manual)

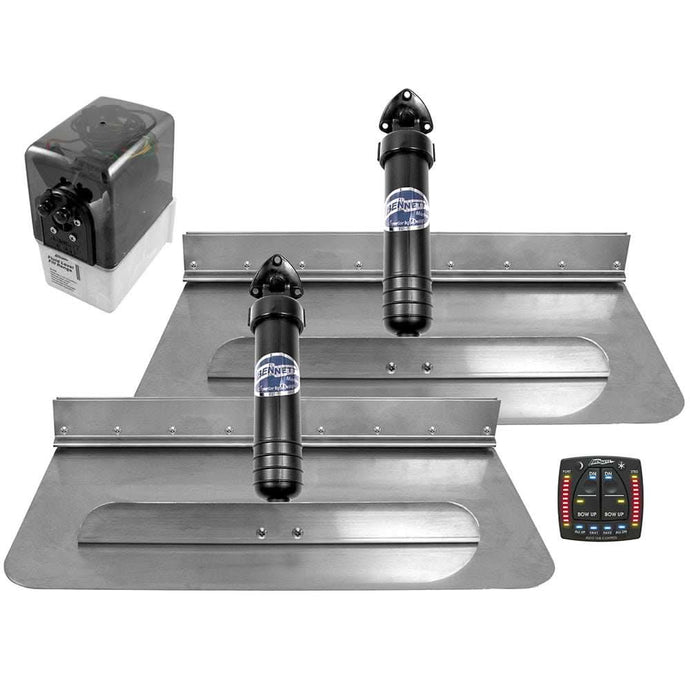

In The Box

2 x 24" x 12" Stainless Steel Trim Planes
2 x Hydraulic Actuators (A1101A)
1 x Hydraulic Power Unit (HPU) (V351HPU1)
1 x AutoTrim Pro Helm Display & Control Unit
20' Hydraulic Tubing & 25' ATP Wire Harness
All Installation Hardware & Templates

Ideal for a wide variety of powerboats, the Bennett 2412ATP Hydraulic Trim Tabs with ATP is a top-tier choice for boat owners seeking performance, comfort, and reliable control on every voyage.

Kits Include:

(2) Trim plane assemblies

(2-4) Hydraulic actuators

(1) Hydraulic Power Unit

Hydraulic tubing and hardware

Optional helm control

Features:
