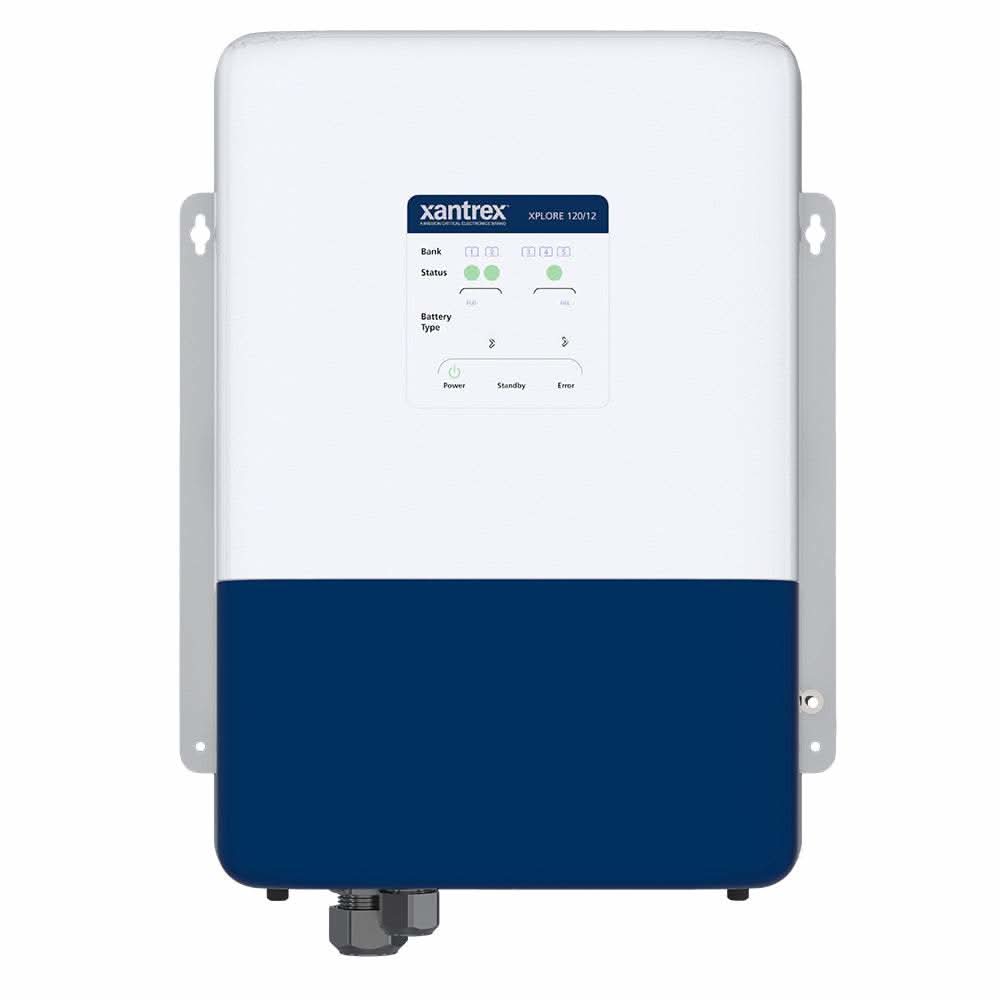

Xantrex XPLORE Battery Charger - 12V - 120 Amp - 6-Bank - 819-0120-12

The Xantrex XPLORE 120/12 (819-0120-12) is one of the most powerful and versatile 12V battery chargers currently available. It is specifically designed to manage complex power systems in RVs, yachts, and commercial vehicles, offering the unique ability to charge up to six battery banks simultaneously.

Product Overview

The Xantrex XPLORE 120/12 Battery Charger is a high-output, 120-amp multi-bank charger that can handle dual-battery chemistries at the same time. This means you can charge your lithium house bank and your lead-acid engine starter bank from a single unit, eliminating the need for multiple separate chargers.

• Multi-Bank Charging: Features six independent output banks, allowing for a highly organized and simplified wiring setup for large battery systems.

• Worldwide Compatibility: The auto-ranging AC input (80–265V) allows the charger to operate reliably on different shore power standards globally.

• Smart Connectivity: Includes a Bluetooth BLE module for monitoring via the Xantrex app and is NMEA 2000 compatible for integration into modern marine electronics networks.

• Advanced Recovery: Capable of charging dead batteries down to 0V, which is a critical feature for recovering deeply discharged lithium-ion or AGM batteries.

• Specialized Modes: Features a Quiet Mode that disables the cooling fan for silent operation at night and a Power Share mode that prevents tripping AC breakers by automatically reducing output.

Technical Specifications

• Output Current: 120 Amps total (Banks 1-2 up to 120A; Banks 3-6 up to 40A).

• Battery Chemistries: Lithium-Ion (LFP), AGM, Flooded, Gel, and Custom profiles.

• Charging Stages: 3-Stage, 2-Stage, and Constant Voltage modes.

• Ingress Protection: IP32 rating (drip-proof when mounted vertically).

• Safety Standards: ETL listed to UL1236 (Marine Supplement), UL1564, and ABYC standards.

• Weight: 13 lbs (5.9 kg).

Key Features

• Customizable Charging: Provides pre-set profiles and fully customizable settings for specific battery manufacturer requirements.

• High Efficiency: Features a power factor of >98%, requiring less AC input power to achieve peak charging performance.

• Safety Protection: Integrated protection against reverse polarity, over-temperature, DC over-voltage, and battery overcharging.
