Xantrex Remote for Freedom HF Series Inverter/Chargers - 808-1840

The Xantrex 808-1840 is a dedicated remote display panel designed specifically for the Freedom HF Series of inverter/chargers. It serves as a primary interface, allowing you to monitor and control your power system from a more accessible location in your RV, boat, or truck.

Product Overview

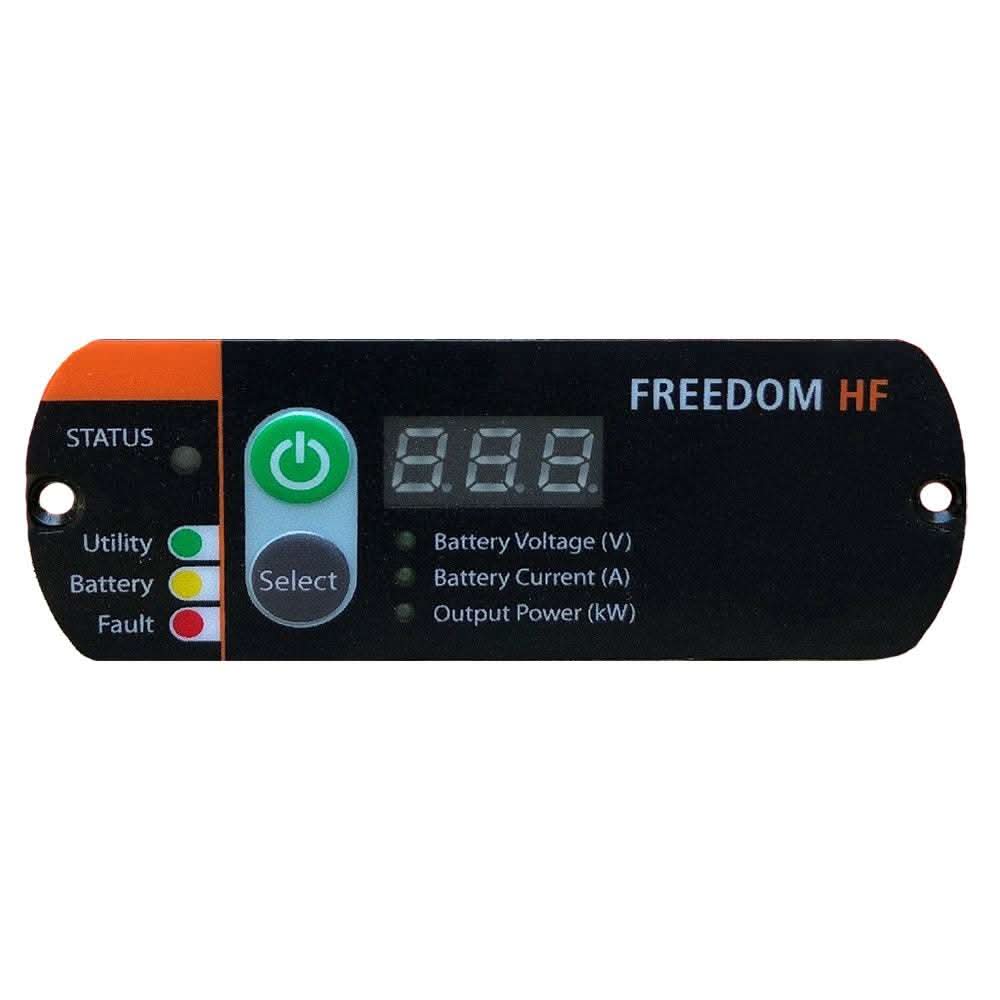

The Xantrex Remote for Freedom HF Series (808-1840) provides a digital interface that mirrors the status and controls found directly on the inverter unit. It features a bright 3-digit LED display and multi-color indicator lights that offer instant feedback on your system’s health.

• Real-Time Monitoring: View critical information such as battery voltage, current status (Inverting or Charging), and specific fault/error codes for rapid troubleshooting.

• Full System Control: Features dedicated push-buttons to easily turn the inverter on/off or adjust deep-level configuration settings without needing to access the main unit.

• Flush Mount Design: Engineered for a clean, professional-looking installation on interior walls or dashboards.

• Battery Management: Allows you to adjust parameters like charge current, low battery shutdown limits, and alarm settings to better suit your battery bank.

Technical Specifications

• Compatibility: Exclusively for Freedom HF Series (models 1000, 1055, and 1800).

• Display: 3-digit LED with operation mode indicators.

• Input Voltage: 12V DC (Powered via the communications cable).

• Cutout Dimensions: 3.25" x 1.25" x 1.5" (82.5 x 31.8 x 38.1 mm).

• Connection: Requires a 6-conductor RJ12 telephone-style cable (not included).

Compatibility List

This remote is compatible with the following specific Xantrex part numbers:

• Freedom HF 1000: 806-1020

• Freedom HF 1055: 806-1055

• Freedom HF 1800: 806-1840

Important Installation Note

The 808-1840 remote panel does not include the communications cable. To complete your installation, you will need to purchase a 6-conductor "tel-type" cable separately. Xantrex offers these in standard lengths:

• 25ft Remote Cable: Part #31-6257-00

• 50ft Remote Cable: Part #31-6262-00
