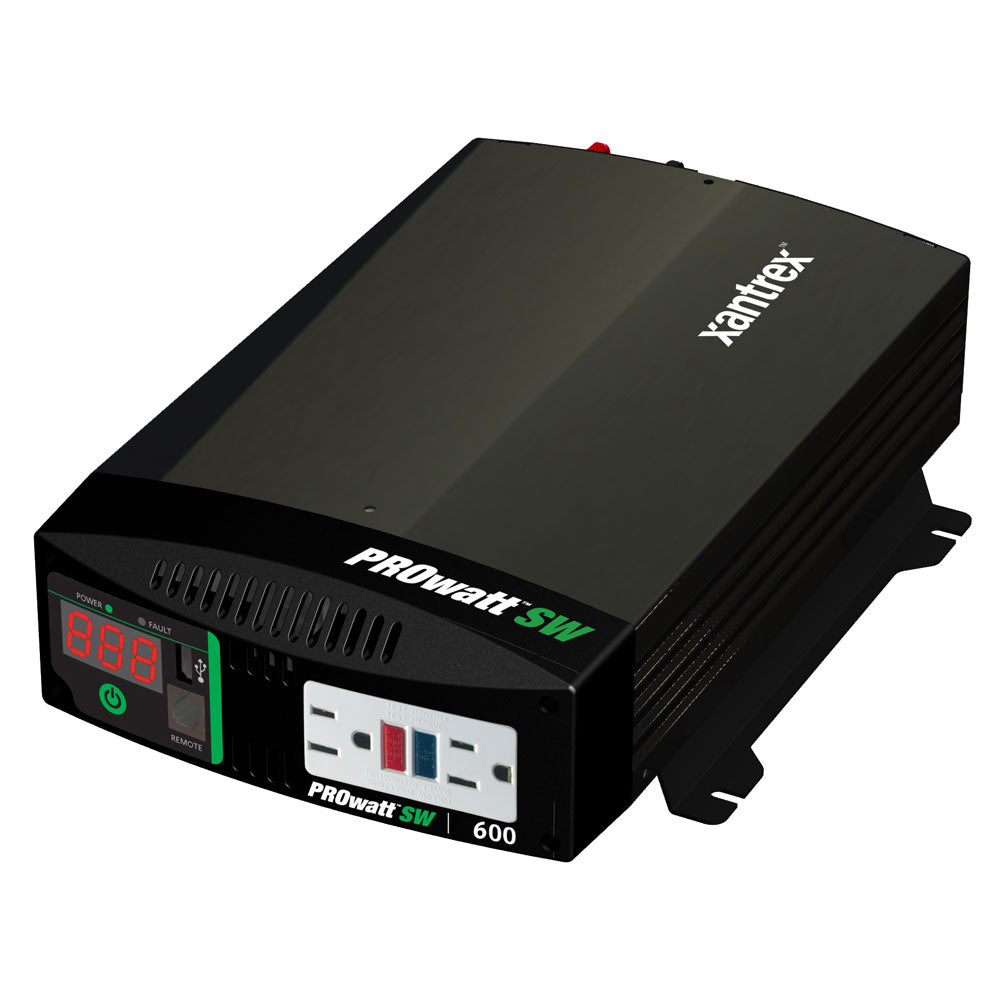

Xantrex PROwatt SW600 - True Sine Wave Inverter - 806-1206

Xantrex PROwatt SW600 True Sine Wave Inverter – 806-1206

The Xantrex PROwatt SW600 True Sine Wave Inverter (806-1206) delivers clean, reliable AC power for sensitive electronics in marine, RV, and off-grid applications. Producing 600 watts of continuous true sine wave power, this inverter safely powers laptops, TVs, small appliances, and other electronics without the risk of damage or interference caused by modified sine wave inverters.

Designed for efficiency and durability, the PROwatt SW600 converts 12V DC battery power into high-quality 120V AC power with quiet operation and minimal electrical noise. Built-in safety features—including overload, over-temperature, and low-voltage protection—help safeguard both your equipment and power system. Its compact design allows for easy installation in tight spaces, making it ideal for boats, RVs, and mobile power setups.

Trusted for dependable performance, the Xantrex PROwatt SW600 is a smart solution for anyone needing portable, high-quality AC power on the go.

Key Features:

• 600 watts continuous true sine wave power

• Safely powers sensitive electronics and small appliances

• Converts 12V DC to clean 120V AC power

• Built-in protection against overload, overheating, and low voltage

• Quiet, efficient operation with minimal electrical interference

• Compact design for marine, RV, and off-grid installations

Ideal For:

• Boats and yachts needing reliable onboard AC power

• RVs, vans, and campers

• Off-grid cabins and mobile workstations

• Powering laptops, TVs, chargers, and small appliances

The Xantrex PROwatt SW600 True Sine Wave Inverter – 806-1206 delivers clean power, reliable performance, and trusted Xantrex quality wherever you need electricity.

Available from Anchor Express—your source for premium marine and RV power solutions.

Product Features:

• 540W Continuous, 1200W Surge Capability

• Built-in digital display for DC volts and output power

• Built-in USB port

• Dual GFCI AC receptacles for safe operation

• Heavy duty terminals for trouble-free battery connection

• Available ON/OFF remote switch (with ignition lockout)

• Two year warranty

Protection Features:

• Low voltage shutdown (10.5 Vdc)

• Low voltage alarm (11.0 Vdc)

• Over voltage protection (15.5 Vdc)

• Over load shutdown

• Over temperature shutdown

• GFCI protection

Electrical Specifications:

• Continuous Power:540W

• Surge Capacity (Peak): 1200W

• DC Input: 12 Vdc (nominal)

• AC Output Frequency: 60 ± 0.5 Hz

• AC Output Voltage Range: 104 - 127 Vac

• USB Output: 5 V / 500 mA

• Output Waveform: True Sine Wave

• Optimum Efficiency: 90%

• No Load Current Draw: < 0.6 A

• Input Voltage Range: 10.5 - 15.5 Vdc

General Specifications:

• Operating Temperature Range: 32°F - 104°F (0°C - 40°C)

• AC Receptacle: Dual GFCI

• USB Receptacle: Single Port (Type A)

• DC Connection: Hardwire

• Recommended DC Fuse: 150 A

• Digital Display: DC voltage, AC output power & error codes

• Dimensions (H x W x L): 3.5" x 8.7" x 12.2" (89 x 220 x 310mm)

• Weight: 6.5lb (3.0kg)

• Warranty: Two year

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Xantrex
Manufacturer Part No : 806-1206
UPC : 715535894061
