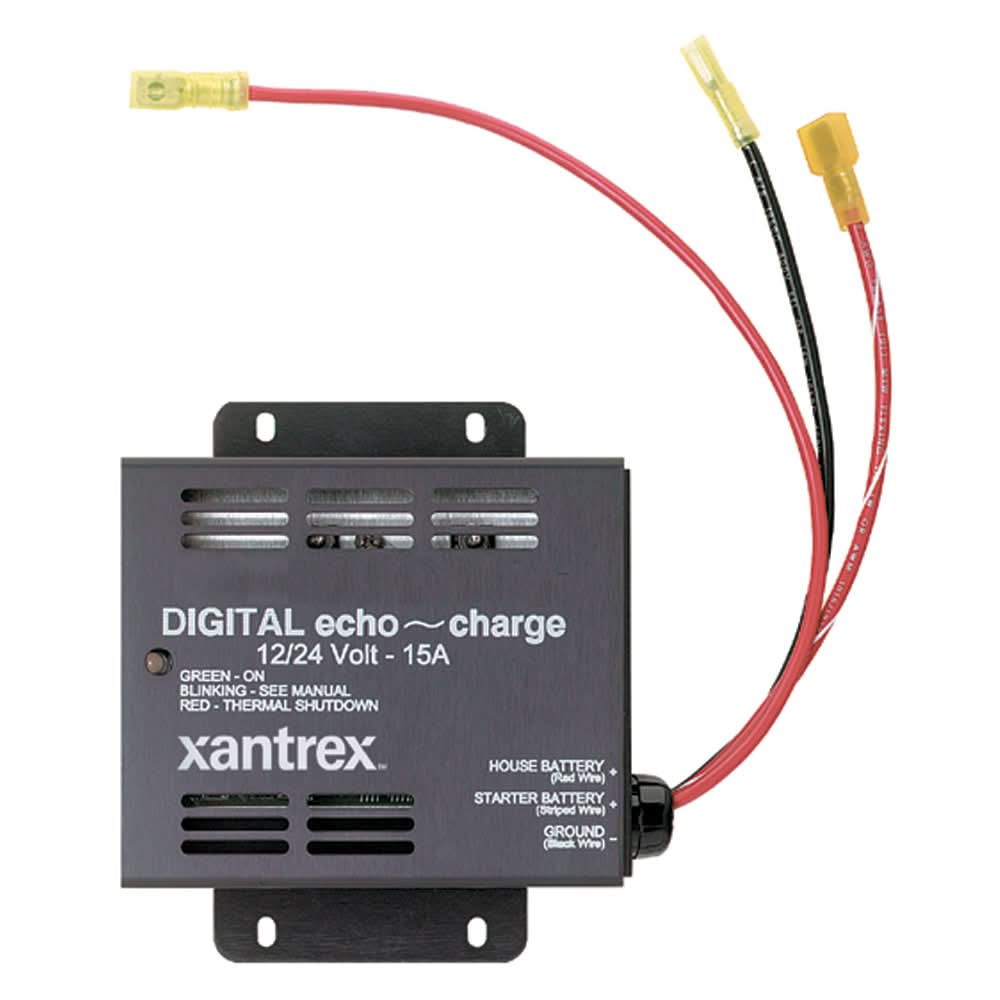

Xantrex Heart Echo Charge Charging Panel - 82-0123-01
The Xantrex Echo Charge (82-0123-01) is a specialized "battery-to-battery" charging selector designed to maintain a secondary battery bank (typically a starter battery) using the surplus current from your primary house battery charger.
Product Overview
The Echo Charge is a reliable, independent device that eliminates the need for manual battery switches or complicated solenoids. It is a "one-way" charger that ensures your engine or generator starter battery stays topped off whenever your house batteries are being charged by solar, wind, or shore power.
-
Automatic Operation: It automatically senses when the house battery is being charged and redirects up to 15 Amps to the starter battery.
-
Voltage Compatible: Designed for 12V and 24V systems, it automatically adjusts to the voltage of your battery bank.
-
Battery Protection: Features built-in thermal and over-current protection. It will not allow the starter battery to drain the house battery if the charging source is removed.
-
Simple Installation: Requires only three wires (House +, Starter +, and Common Ground), making it an easy DIY upgrade for boats and RVs.
Technical Specifications
| Feature | Specification |
| Model Number | 82-0123-01 |
| Max Charge Current | 15 Amps |
| Input Voltage | 12V or 24V DC |
| Output Voltage | Matches Input |
| Current Draw (Idle) | < 50 mA |
| Dimensions | 4.9" x 4.9" x 1.3" |
Product Features
- 15 A maximum charge current
- Automatically adjusts for 12 or 24 volt battery banks (both battery banks must be the same DC voltage and battery type)
- Automatically switches on/off without affecting the in-house battery bank or over-charging
- Utilizes excess current from the primary charging source
- Built-in thermal and over-current circuits
- Reverse polarity protection
- Easy three wire installation
