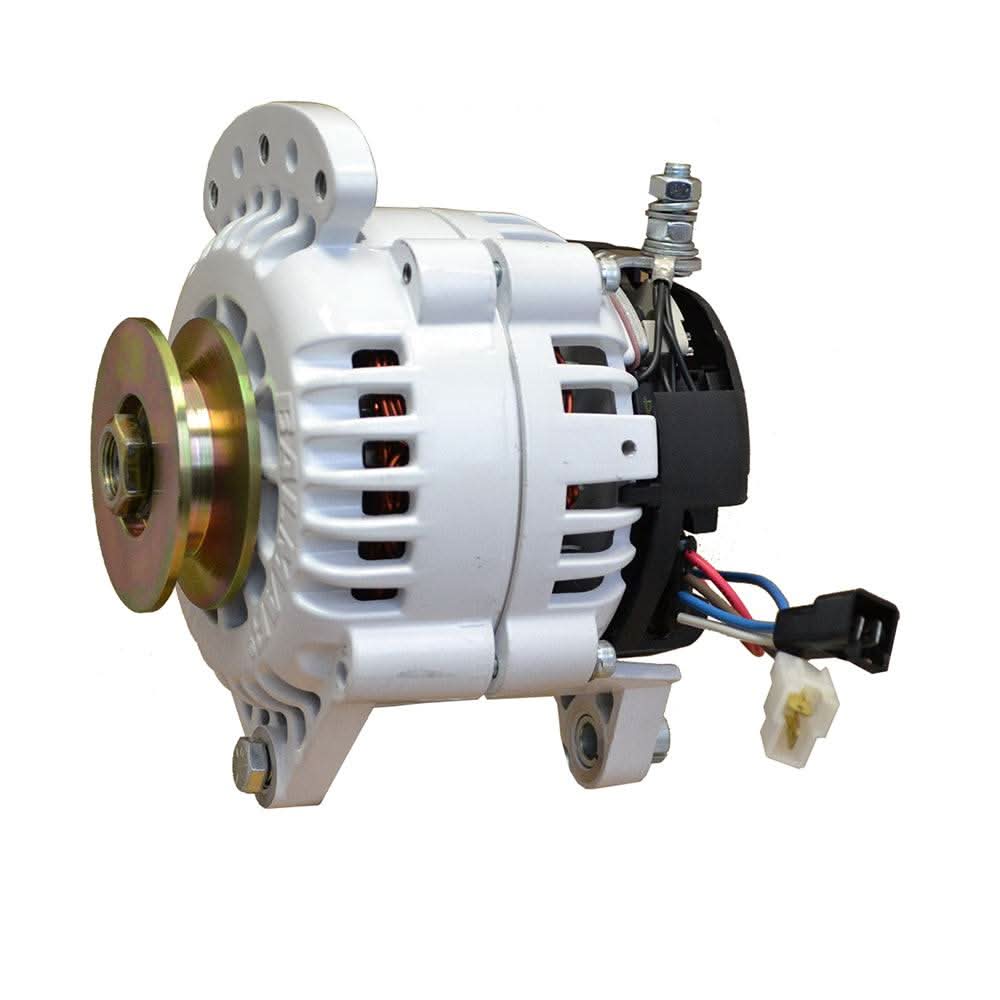

Balmar 60 Series Alternator - Saddle Mount(Dual Foot) - 100A - 12V - 60-100-SV
Manufacturer Part #: 60-100-SV
Couldn't load pickup availability
Balmar 60 Series Alternator – Saddle Mount (Dual Foot) – 100A – 12V – 60-100-SV
The Balmar 60 Series Alternator – 100 Amp, 12 Volt (60-100-SV) is a high-performance marine alternator designed to deliver reliable, high-output charging for cruising sailboats, powerboats, and commercial vessels. Engineered for continuous-duty operation, this alternator provides dependable charging for large battery banks, onboard electronics, and house power systems.
Featuring a saddle mount (dual foot) configuration, the Balmar 60 Series alternator ensures a secure fit on a wide range of marine engines. Its compact, lightweight design allows for easy installation while still delivering powerful output. Built with marine-grade components, including corrosion-resistant materials and high-quality internal regulators (external regulation compatible), this alternator is optimized for harsh marine environments.
The 100-amp output delivers strong low-RPM performance, making it ideal for vessels that rely on alternators to recharge batteries during normal engine operation. The alternator is designed for use with external smart regulators, allowing advanced multi-stage charging profiles that extend battery life and improve charging efficiency.
Trusted by professional installers and long-distance cruisers, Balmar alternators are known for their durability, efficiency, and thermal management, making them a preferred choice for serious marine electrical systems.
Key Performance Features
-
100 Amp High-Output: Delivers significantly more charging power than factory alternators, even at lower engine RPMs.
-
Dual Internal Fans: High-volume cooling fans and a high-airflow frame ensure the alternator runs cooler and lasts longer under heavy loads.
-
Smart Ready® Technology: Features a single-stage internal regulator that acts as a failsafe backup if your external regulator ever fails.
-
Isolated Ground: Provides a dedicated return path to the battery, reducing the risk of stray current corrosion and improving system efficiency.
-
Ignition Protected: Fully compliant with USCG Title 33, ISO, SAE, and CE standards for use on gasoline or diesel engines.
Product Specifications
| Feature | Details |
| Model Number | 60-100-SV |
| Output / Voltage | 100 Amps / 12 Volts |
| Mounting Style | Saddle Mount (Dual Foot) 3.15" ID |
| Pulley | Single Deep Vee (fits 3/8" or 1/2" belts) |
| Grounding | Isolated Ground |
| Max RPM | 15,000 RPM (12,000 Continuous) |
| Regulation | Smart Ready® Internal + External P-Type Capable |
In the Box
-
1 x Balmar 60-100-SV Alternator
-
1 x Single Deep Vee Pulley (Pre-installed)
-
Technical Manual & Wiring Diagram
Note: For maximum charging efficiency with AGM, Lithium (LiFePO4), or Gel batteries, it is highly recommended to pair this alternator with a Balmar MC-618 or ARS-5 External Multi-Stage Regulator.
The Balmar 60 Series Alternator – Saddle Mount (Dual Foot) – 100A – 12V – 60-100-SV is an excellent upgrade for boat owners seeking dependable charging power, improved battery performance, and long-term reliability in demanding marine environments.
