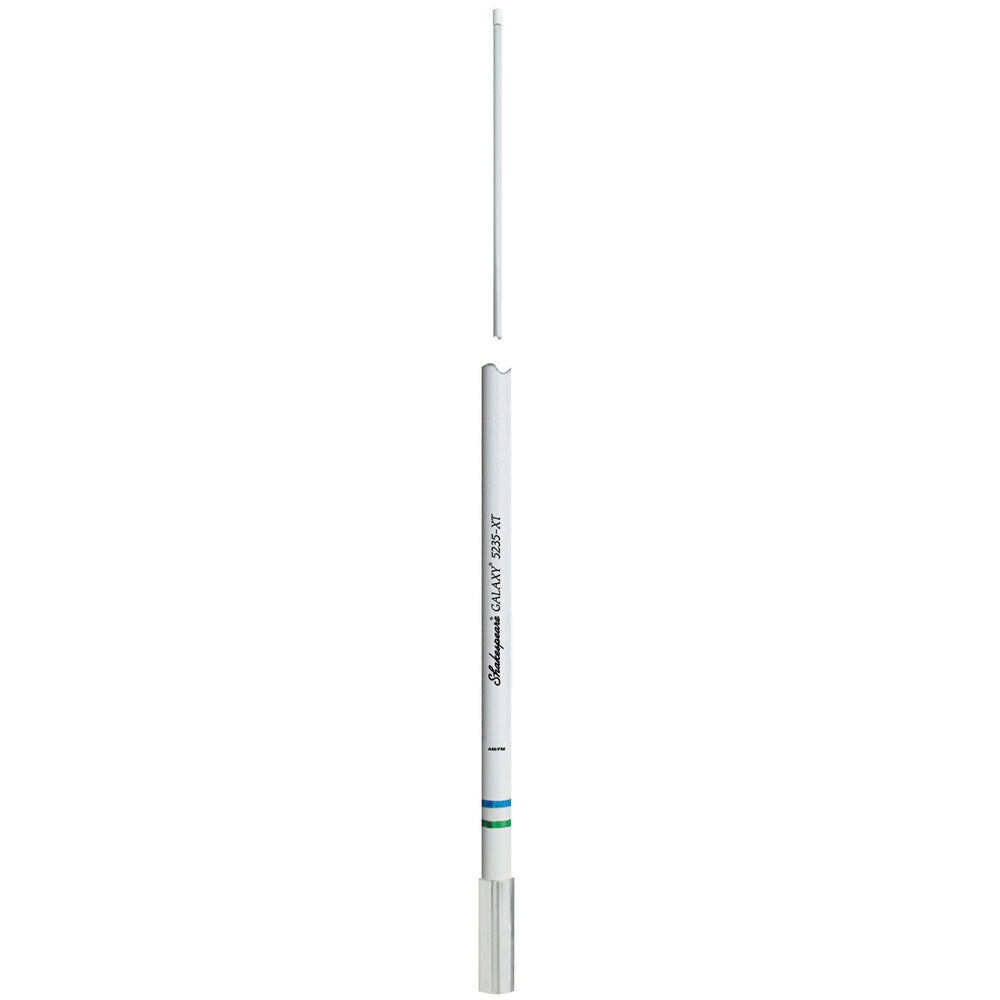

Shakespeare AM/FM 8 Ft 5235-XT Galaxy - 5235-XT
Manufacturer Part #: 5235-XT
Couldn't load pickup availability
Shakespeare AM/FM 8 Ft 5235-XT Galaxy - 5235-XT
The Shakespeare 5235-XT Galaxy 8' AM/FM Antenna is a top-tier entertainment band antenna designed to deliver superior radio reception for your vessel. As part of the prestigious Galaxy Series, it is engineered with high-end materials that provide maximum range and clarity, allowing you to pull in signals from much further distances than standard antennas.
This antenna is specifically built to withstand the rigors of the marine environment. It features a heavy-duty fiberglass radome finished with a high-gloss, non-yellowing polyurethane coating. It is the "twin" to other 8-foot Galaxy antennas, such as the 5225-XT VHF, ensuring a perfectly matched look across your T-top or radar arch.
Key Features & Benefits
-
Maximum Range: Utilizes internal copper elements to pick up weak AM/FM signals from afar, providing high-fidelity sound for your onboard stereo system.
-
Sturdy Construction: The extra-strong fiberglass radome is designed to handle high winds and high speeds on hardtops and T-tops without excessive flexing.
-
Corrosion Resistance: Equipped with a stainless steel ferrule and standard 1"-14 threads to prevent rust and ensure long-term durability in saltwater spray.
-
Ready to Install: Comes pre-packaged with 20 feet of RG-62 low-loss cable and a Motorola-type plug already installed for a straightforward connection to your receiver.
-
Professional Finish: The signature Galaxy White high-gloss finish provides a premium look while protecting the fiberglass from UV damage and yellowing.
Technical Specifications
| Feature | Specification |
| Model Number | 5235-XT |
| Length | 8 Feet (approx. 93"–96" depending on version) |
| Band | AM / FM / FM-Stereo |
| Ferrule Material | Stainless Steel (1"-14 Thread) |
| Cable Supplied | 20' RG-62 Coax |
| Connector | Motorola Type (Installed) |
| Impedance | 93 Ohms |
| Warranty | 5-Year Limited Warranty |
- Copper elements for maximum range
- Stainless steel ferrule with standard 1in-14 thread
- Includes 20ft RG-62 cable with Motorola type plug installed
- Suggested mount: Shakespeare Style 4187 or Style 5187 Ratchet Mount (each sold separately)
- Frequency: AM, FM, and FM-stereo
- Twin to: Galaxy 8ft antennas
- One section
- Band: AM-FM
- Ferrule: Stainless steel
- Coax Supplied: 20 ft of RG-62
- Connector Supplied: Motorola type, installed
- Color/finish: Galaxy White
- Polarity: Vertical
- Impedance: 93 Ohms
Manufacturer : Shakespeare
Manufacturer Part No : 5235-XT
UPC : 719441400156
Shakespeare AM/FM 8 Ft 5235-XT Galaxy - 5235-XT is backordered and will ship as soon as it is back in stock.
