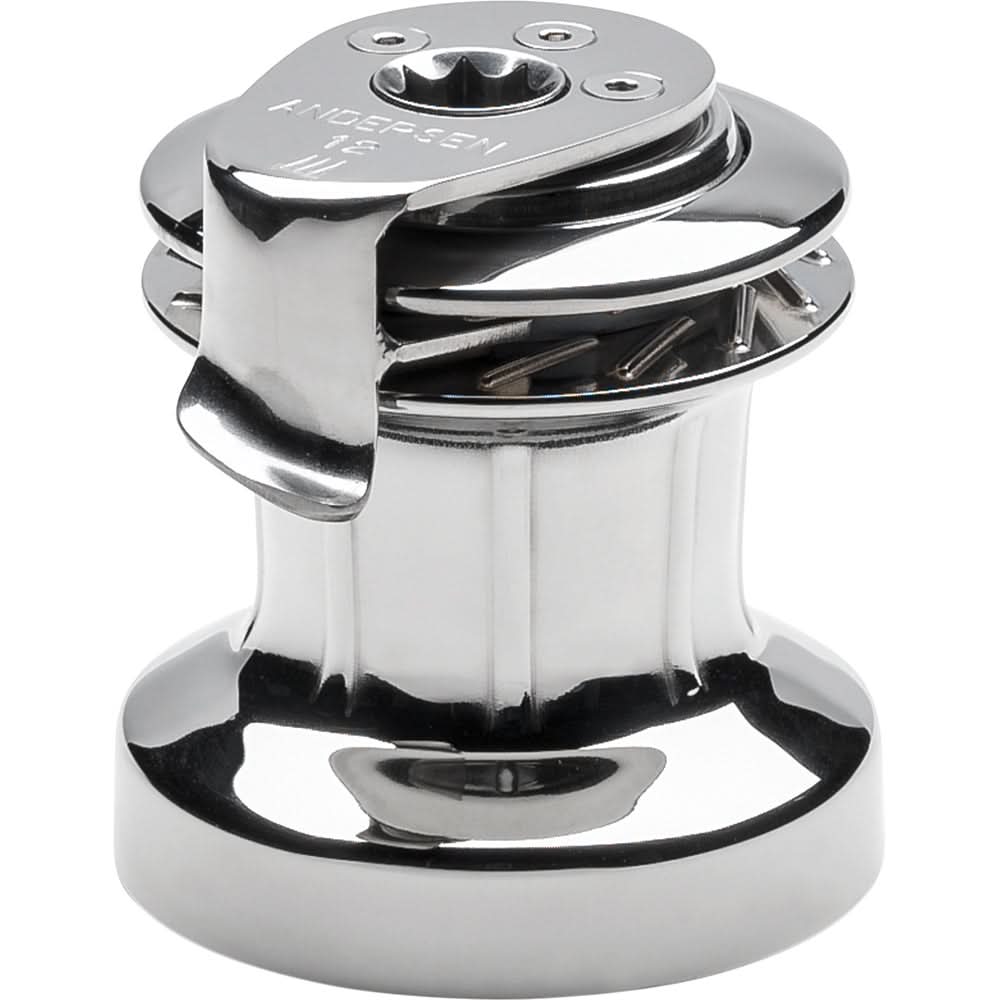

ANDERSEN 12 ST FS Self-Tailing Manual Single Speed Winch - Full Stainless - RA2012010000
Manufacturer Part #: RA2012010000
Couldn't load pickup availability
ANDERSEN 12 ST FS Self-Tailing Manual Single Speed Winch – Full Stainless – RA2012010000
The ANDERSEN 12 ST FS Self-Tailing Manual Single Speed Winch (RA2012010000) is a premium, full stainless steel sailing winch designed for exceptional durability, strength, and smooth performance. Engineered for serious sailors, this compact yet powerful winch delivers reliable sheet handling for cruising yachts and performance sailboats.
Crafted from high-grade stainless steel, the ANDERSEN 12 ST FS offers superior corrosion resistance, making it ideal for harsh marine environments. Its self-tailing system allows for efficient single-handed operation, reducing workload and improving onboard safety.
Key Features & Benefits
-
Full Stainless Steel (FS): Unlike chrome-plated winches, Andersen winches are made of solid stainless steel that won't flake, peel, or corrode.
-
Power Rib™ Technology: Provides a vertical ribbed surface that ensures a secure grip on the line with fewer wraps, while allowing the rope to slide up the drum easily during tailing.
-
Self-Tailing Simplicity: The integrated self-tailing arm allows for effortless single-handed operation, automatically gripping the line as you crank.
-
Low Maintenance: Requires only occasional cleaning and greasing; the modular design allows for easy servicing without removing the winch from the deck.
-
Lightweight Durability: The internal drive gears are engineered for high loads without adding unnecessary weight.
Technical Specifications
| Feature | Details |
| Model Number | RA2012010000 |
| Drum Material | Polished 316 Stainless Steel |
| Speed | Single Speed |
| Power Ratio | 9.5:1 |
| Line Size | 8mm – 14mm |
| Base Diameter | 115 mm |
| Weight | 3.5 kg |
Inside the Box
-
1 x Andersen 12 ST FS Winch: The complete self-tailing, single-speed unit featuring the polished 316 stainless steel drum and self-tailing arm.
-
Installation Template: A precision paper/cardboard template for accurate deck drilling and positioning.
-
Instruction Manual: Comprehensive guide covering installation, operation, and the maintenance schedule.
-
Safety & Warranty Documentation: Details on Andersen’s global warranty and safety precautions.
Note: Mounting bolts and nuts are typically not included, as the length and type of fastener required depend specifically on your deck’s thickness and material.
Technical Specs for Installation
If you are preparing for the install, you will likely need the following (sold separately):
-
Fasteners: 5 x M6 (or 1/4") Grade 316 Stainless Steel bolts.
-
Sealant: Marine-grade bedding compound (e.g., Sikaflex or Butyl tape).
-
Winch Handle: Any standard international bi-square winch handle.
Benefits:
The ANDERSEN 12 ST Self-Tailing Winch ensures smooth line control and dependable holding power under load. The stainless steel Power Rib™ drum (signature ANDERSEN design) enhances grip while minimizing rope wear. Its self-tailing mechanism eliminates the need for an extra crew member to tail the line, making it perfect for short-handed sailing.
Ideal Applications:
-
Genoa sheets
-
Halyards
-
Control lines
-
Small to mid-size cruising yachts
-
Performance sailboats
Whether upgrading your sailboat hardware or replacing an existing winch, the ANDERSEN 12 ST FS Full Stainless Self-Tailing Winch delivers unmatched reliability, strength, and elegant Scandinavian design.
Upgrade your sailing performance with ANDERSEN’s trusted winch technology.
ANDERSEN 12 ST FS Self-Tailing Manual Single Speed Winch - Full Stainless - RA2012010000 is backordered and will ship as soon as it is back in stock.
