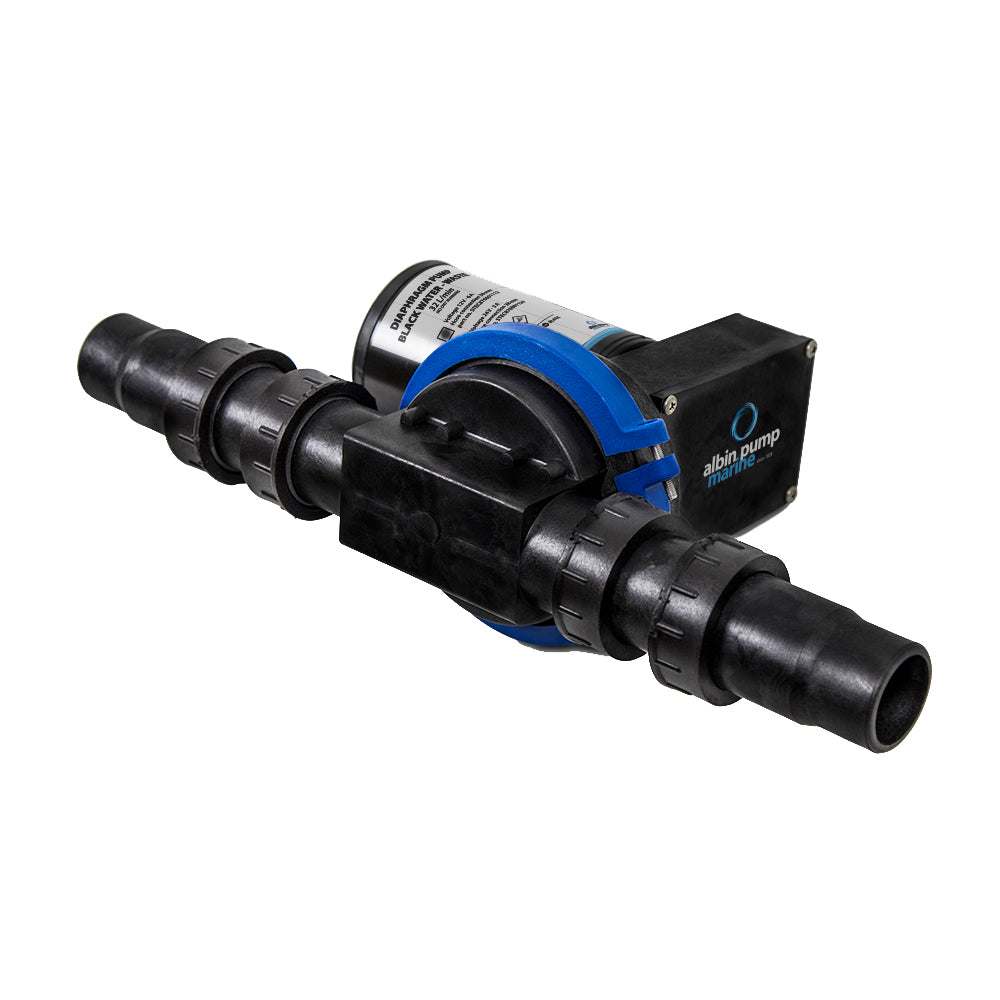

Albin Pump Waste Water Diaphragm Pump 32L (8.5 GPM) - 12V - 03-01-003

Key Features

• High Capacity: Delivers a consistent 8.5 GPM (32 LPM) flow rate.

• Self-Priming: Can pull water from up to 3 meters (10 feet) vertical lift.

• Flexible Installation: Features a 360-degree rotatable pump head, allowing you to orient the ports to fit tight bilge or locker spaces.

• Durability: Equipped with a manual override handle and can handle un-macerated waste easily.

• Connections: Includes dual ports for 38mm (1.5") or 25mm (1") hose.

Technical Specifications

Installation Pro-Tips

• Mounting Orientation: While the head rotates, it is best to mount the pump on a solid vertical or horizontal surface using the rubber vibration-dampening feet to minimize noise transfer.

• Check the Valves: Periodically inspect the "duckbill" valves for debris. One of the main advantages of this diaphragm design is that it can pass small solids, but large hard objects should still be avoided.

• Anti-Siphon: If the pump discharge is below the waterline, ensure you install a vented loop to prevent accidental siphoning and flooding.

In The Box: Albin Pump 03-01-003

• 1 x Albin 32L Diaphragm Pump: The main 12V pump unit featuring a 360-degree rotational head.

• 1 x 38mm (1.5") Straight Connector: For standard inline plumbing.

• 1 x 38mm (1.5") 90-Degree Rotational Connector: Ideal for tight spaces or making sharp turns in your waste line.

• 6A Integrated Fuse: Typically pre-installed or included in the wiring leads for protection.

• Installation & Operation Manual: Includes wiring diagrams, maintenance schedules, and mounting templates.

• Warranty Documentation: One-year manufacturer's limited warranty.

⚠️ What You’ll Need (Not Included)

To complete a safe and professional waste system installation, you will likely need to purchase the following separately:

• Hose Clamps: It is highly recommended to use double stainless steel hose clamps at both the inlet and outlet ports.

• Marine Grade Hose: 38mm (1.5") ID sanitation hose designed for low-permeability to prevent waste odors.

• Vented Loop: Required if the pump discharge is located below the waterline to prevent siphoning.

• Control Switch: A momentary or waterproof rocker switch for the helm or head.

• Fasteners: Four stainless steel mounting screws or bolts sized for the rubber vibration-dampening feet.
