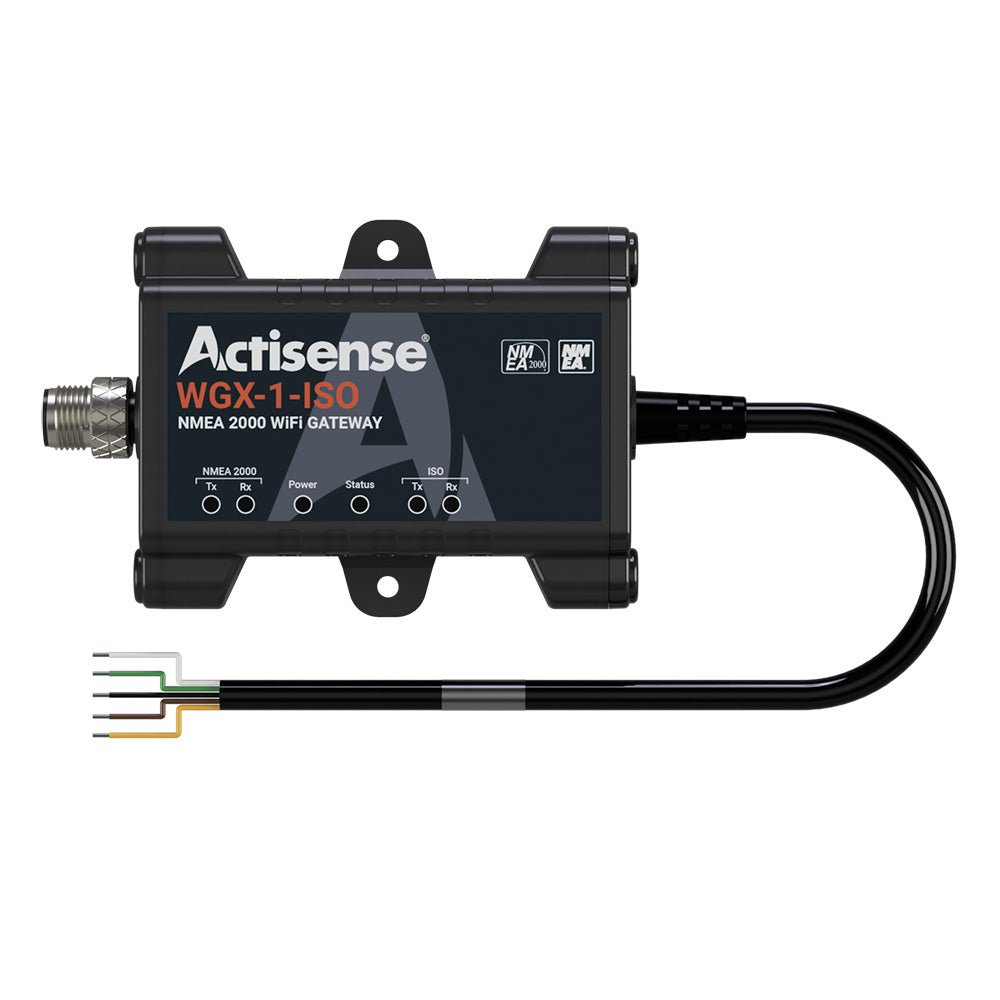

Actisense WGX-1-ISO WiFi NMEA 0183 to NMEA2000 Gateway with PC Interface and ISO Connection

The Actisense WGX-1-ISO is an advanced WiFi gateway designed for seamless bi-directional data transfer between NMEA 0183 and NMEA 2000 networks. This device enables boaters to wirelessly share critical vessel data such as position, speed, course, wind speed, depth, engine diagnostics, and AIS messages with smartphones, tablets, and laptops. Its integrated Wi-Fi supports IEEE 802.11 b/g/n standards, providing reliable connectivity with a range of approximately 30 meters in open space, making it ideal for modern marine data integration. The WGX-1-ISO also features a wired Ethernet connection through its ISO port, supporting full NMEA 0183, RS232, and RS422 compatibility with baud rates up to 230,400, ensuring compatibility with a wide array of existing marine instruments. Its robust IP67-rated case withstands harsh marine environments, and the device includes diagnostic LEDs, internal antenna, and enhanced security features such as unique SSID and user-configurable passwords for secure network access. The device’s ISO-isolated input and output ensure safe interfacing with NMEA 0183 or RS232/RS422, while the integrated Actisense Toolkit allows for advanced configuration, including Tx and Rx list management and data rate adjustments. The WGX-1-ISO supports fast heading updates at 10Hz, making it suitable for navigation and racing applications. Data can be logged internally via an optional micro SD card for post-voyage analysis, troubleshooting, or record-keeping. Additionally, the device supports remote firmware upgrades and provides the Actisense-i diagnostic suite for comprehensive network health checks, voltage monitoring, and troubleshooting. Its rugged design, combined with its extensive feature set, makes the Actisense WGX-1-ISO a vital tool for enhancing vessel data connectivity and ensuring reliable performance in demanding marine environments.

Features:

• OPTO-isolated input and ISO-Drive output for safe interfacing with NMEA 0183 or RS232 / RS422

• Supports data transfer rates up to 230,400 baud

• Includes a 0.75-meter ISO cable for easy installation

• Advanced configuration options using the Actisense Toolkit for Tx and Rx list setup and data rates

• Supports fast heading updates at 10Hz for accurate navigation data

• Built-in Actisense-i network health checker for diagnostics and troubleshooting

• Supports both TCP and UDP data streaming over Wi-Fi

• Compatible with a wide range of mobile apps for vessel data monitoring

• Remote firmware upgrade capability for future-proofing

• Durable IP67-rated rugged housing suitable for marine environments

• Includes diagnostic LEDs for input and output status indication

BRAND: Actisense

Manufacturer Part Number: WGX-1-ISO
