Actisense Rear Panel Mount NMEA 2000 Wired Micro 5-Pin Male Connector - A2K-PMW-M

Actisense Rear Panel Mount NMEA 2000 Wired Micro 5-Pin Male Connector

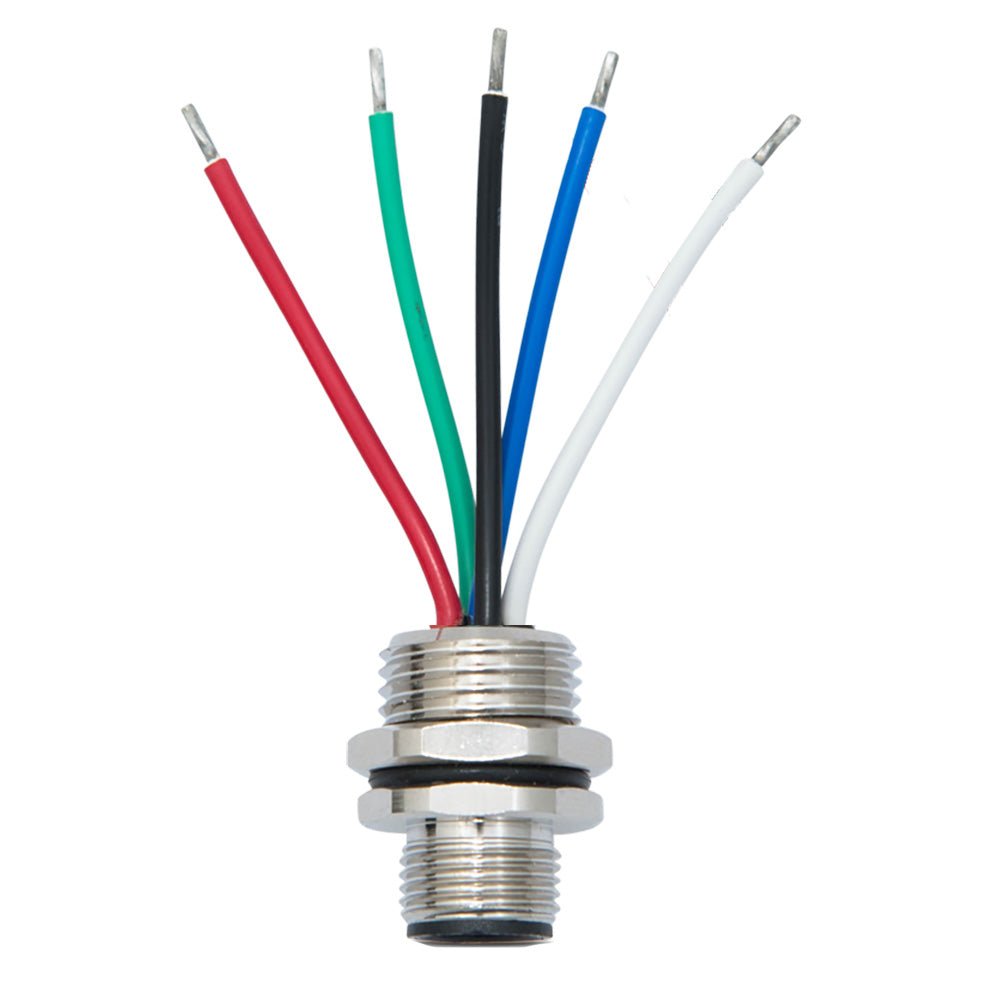

The Actisense A2K-PMW-M is a high-quality rear panel mount NMEA 2000 wired connector designed for marine and industrial applications. This connector features a waterproof IP67 rating when mated, ensuring reliable and secure connections in harsh environments. Its robust construction includes brass housing with nickel plating and gold-plated brass contacts, providing excellent corrosion resistance and electrical performance. The connector supports a rated current of 4A and a maximum voltage of 60VDC, making it suitable for various NMEA 2000 network configurations. The design incorporates a standard M12-A polarization with a PG9 mounting thread, enabling easy installation through panels or bulkheads with a mounting hole diameter of approximately 15.3mm. The wiring utilizes 18 AWG stranded and tinned copper wires protected by PVC jackets, ensuring flexibility and durability over extended use. Operating in temperatures from -25°C to +90°C, this connector maintains reliable performance across diverse marine and outdoor environments. Certified to IEC61076-2-101 standards, the Actisense NMEA 2000 connector ensures compliance with industry safety and quality benchmarks. Its compact weight of just 20 grams makes it an unobtrusive yet sturdy component suitable for tight installation spaces. The connector can easily replace existing drop glands on compatible Actisense products like the QNB-1, providing a quick and secure pluggable connection point for NMEA 2000 networks. Designed with specialist interconnect expertise, this connector offers a dependable solution for seamless data and power transmission in marine electronics. For installation and maintenance guidance, refer to the comprehensive manual available online.

Features:

• Waterproof IP67 rating when mated for reliable marine and outdoor use

• Brass housing with nickel plating for corrosion resistance

• Gold-plated brass contacts for optimal electrical conductivity

• Standard M12-A polarization and PG9 mounting thread for easy installation

• Supports up to 4A current and 60VDC voltage for versatile applications

• Compatible with 18 AWG stranded and tinned copper wires

• Operates effectively in temperatures from -25°C to +90°C

• Meets IEC61076-2-101 standards for quality and safety

BRAND: Actisense

Manufacturer Part Number: A2K-PMW-M
