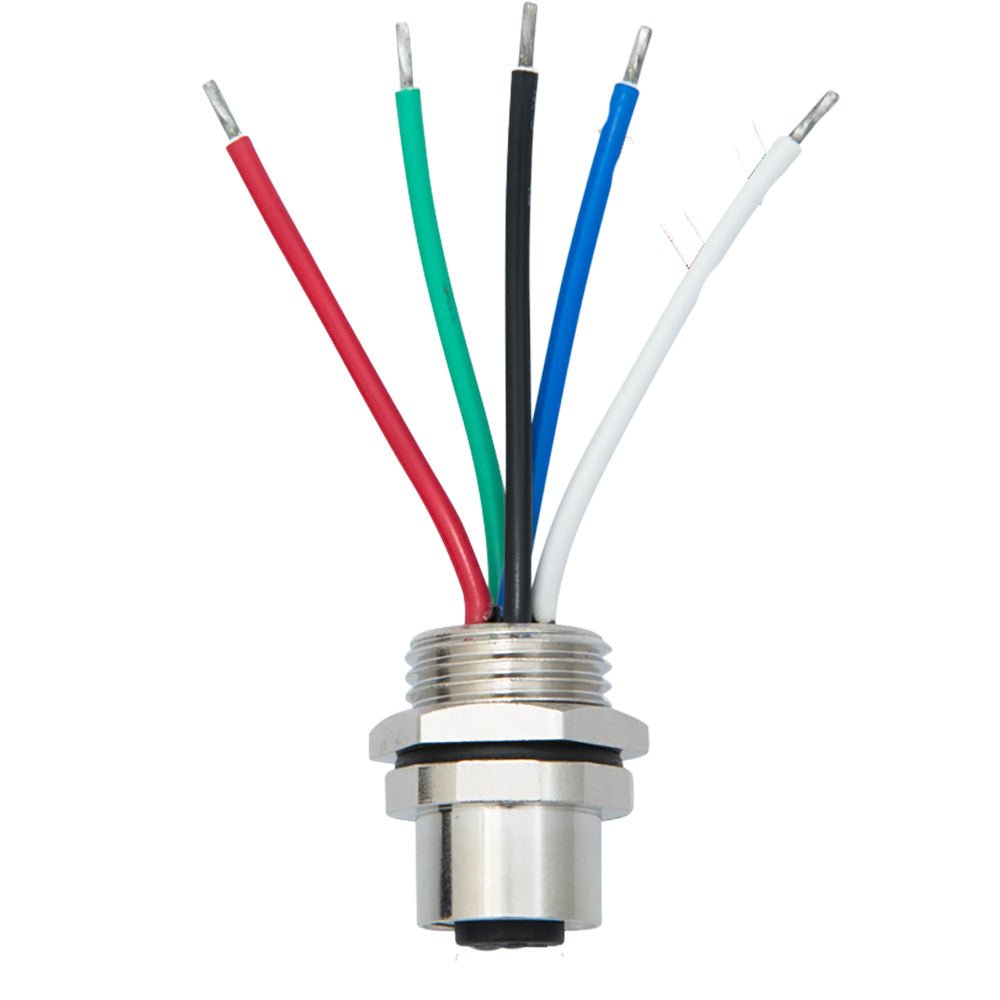

Actisense Rear Panel Mount NMEA 2000 Wired Micro 5-Pin Female Connector (Part A2K-PMW-F) - A2K-PMW-F

Actisense Rear Panel Mount NMEA 2000 Wired Micro 5-Pin Female Connector (Part A2K-PMW-F)

The Actisense Rear Panel Mount NMEA 2000 Wired Micro 5-Pin Female connector provides a reliable and waterproof solution for integrating NMEA 2000 networks through watertight bulkheads or panels. Designed for marine and industrial applications, this connector ensures a secure connection with waterproof seals that maintain the integrity of your data transmission even in harsh environments. It is a versatile replacement option for existing drop glands on the Actisense QNB-1, allowing for quick and easy installation of pluggable NMEA 2000 connections. Crafted with high-quality materials, this connector balances durability and ease of use, making it an essential component for professional marine electronics setups.

Features:

• Rated Current: 4A for safe and reliable power transfer

• Rated Voltage: 60VDC suitable for various marine electrical systems

• Contacts: Brass, gold-plated ensuring low contact resistance and corrosion resistance

• Contact Carrier: Nylon GF for added strength and durability

• Contact Polarization: Standard M12-A-Polarization for secure mating

• Mating Thread: M12 thread standard for compatibility and ease of installation

• Housing: Brass, nickel-plated for corrosion resistance

• Mounting Thread: PG9 for secure panel mounting

• Mounting Nut: Brass, nickel-plated PG9 nut for robust fastening

• Mounting Hole Diameter: Designed to fit standard panel cutouts

• Wires: Stripped and tinned 18 AWG PVC jacket wires for reliable electrical connection

• Protection: IP67 rated when mated for water and dust resistance

• Operating Temperature: -25°C to +90°C suitable for diverse marine environments

• Connector Specification: Meets IEC61076-2-101 standards for quality assurance

BRAND: Actisense

Manufacturer Part Number: A2K-PMW-F
