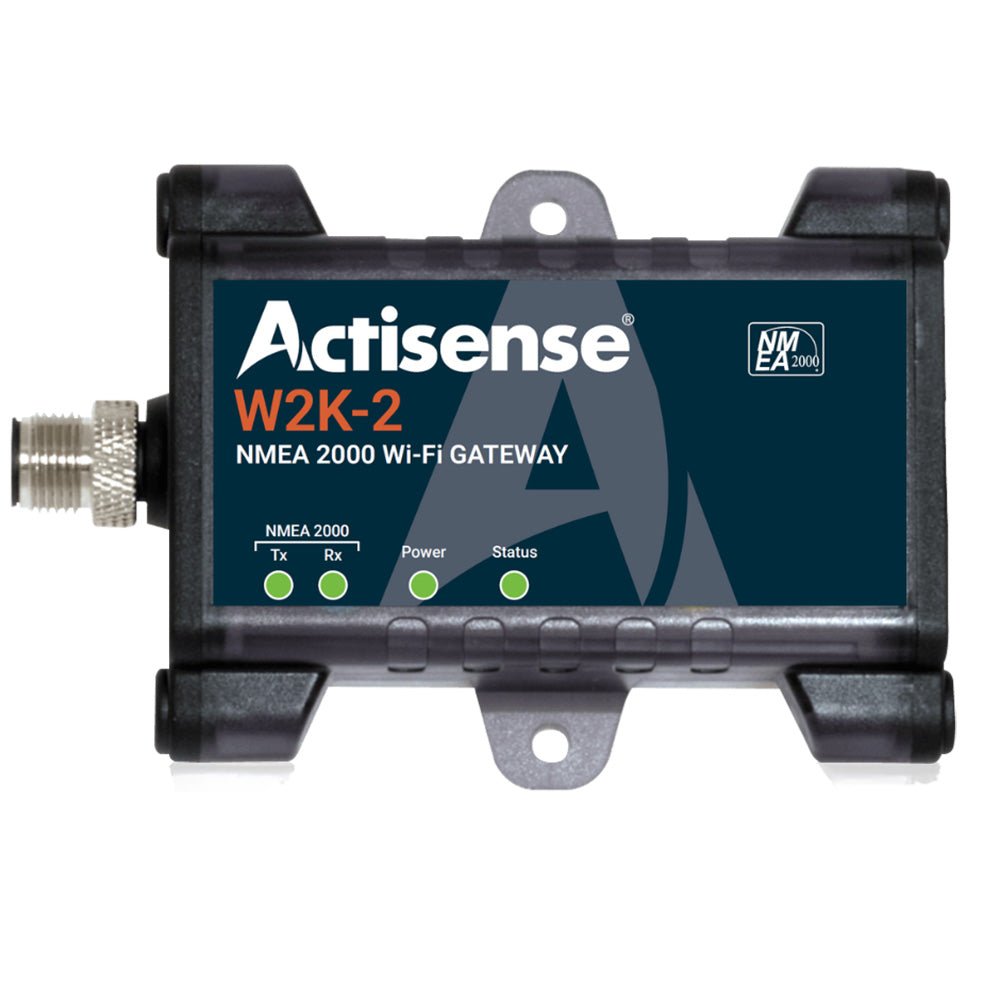

Actisense NMEA2000 to Wi-Fi Gateway W2K-2 - Rugged Marine Data Logger with Diagnostic Tools - W2K-2

Actisense NMEA2000 to Wi-Fi Gateway W2K-2 - Rugged Marine Data Logger with Diagnostic Tools

The Actisense W2K-2 is a robust NMEA 2000 to Wi-Fi gateway designed for seamless data transfer and diagnostics in marine environments. Featuring built-in data logging capabilities and Actisense-i diagnostic tools, this device enables boaters and professionals to transmit vessel data wirelessly to laptops, tablets, or smartphones with ease. Its ability to convert NMEA 2000 messages into NMEA 0183 sentences allows compatibility with a wide array of navigation and marine software applications, supporting data such as position, speed, wind speed, depth, engine parameters, and AIS messages. The device supports both TCP and UDP streaming over up to three separate data servers, providing flexible connectivity options for various onboard systems.
Its internal micro SD card slot accommodates cards up to 128GB, enabling extensive voyage data recording for later analysis, troubleshooting, or logbook creation. The inclusion of diagnostic LEDs for bus activity and Wi-Fi status, along with remote firmware upgrade capabilities, simplifies installation and maintenance. The W2K-2 is built to endure harsh marine conditions with an IP67 rated ruggedized casing, an internal antenna, and protection features such as reverse polarity and transient voltage safeguards. Security is enhanced with WPA3 standards, ensuring secure wireless connections with unique device SSIDs and passwords. The device also automatically measures and reports NMEA 2000 bus voltage, providing vital system health information.
Whether used as an access point or client, the W2K-2 offers reliable wireless networking with 802.11 b/g/n compatibility, supporting data speeds up to 150 Mbps at a 2.4GHz frequency. Its low power consumption (approximately 100mA at 12V) and support for multiple data protocols make it an efficient and versatile addition to any marine electronics setup. Easy to install, just insert a micro SD card and connect the NMEA 2000 cable, and you are ready to wirelessly monitor and log your vessel’s data securely and reliably. The Actisense W2K-2 is an essential tool for boaters seeking to improve navigation, diagnostics, and data management in demanding marine environments.

Features:

• Converts NMEA 2000 to/from NMEA 0183 over Wi-Fi for seamless data sharing

• Supports both TCP and UDP protocols with three data servers for flexible connectivity

• Compatible with a wide range of navigation and marine applications

• Built-in micro SD card slot supporting cards up to 128GB for extensive voyage data logging

• Diagnostic LEDs for bus activity and Wi-Fi status enable quick troubleshooting

• Operates as both Wi-Fi access point and client simultaneously

• Remote firmware upgrade capability simplifies updates

• Low power consumption at approximately 100mA at 12V DC

• Supports IEEE 802.11 b/g/n Wi-Fi standards at speeds up to 150 Mbps

• Automatically reports NMEA 2000 bus voltage for system health monitoring

• Embedded user manual accessible via web browser

• Secure wireless connections with unique SSID and password for each device

• Two-in-one device combining Wi-Fi gateway and data logger functions

• Rugged IP67 case designed for wet and harsh environments

• Integrated internal antenna reduces physical damage risk

• Quick and easy installation with no need for physical connections to laptops or tablets

BRAND: Actisense

Manufacturer Part Number: W2K-2
