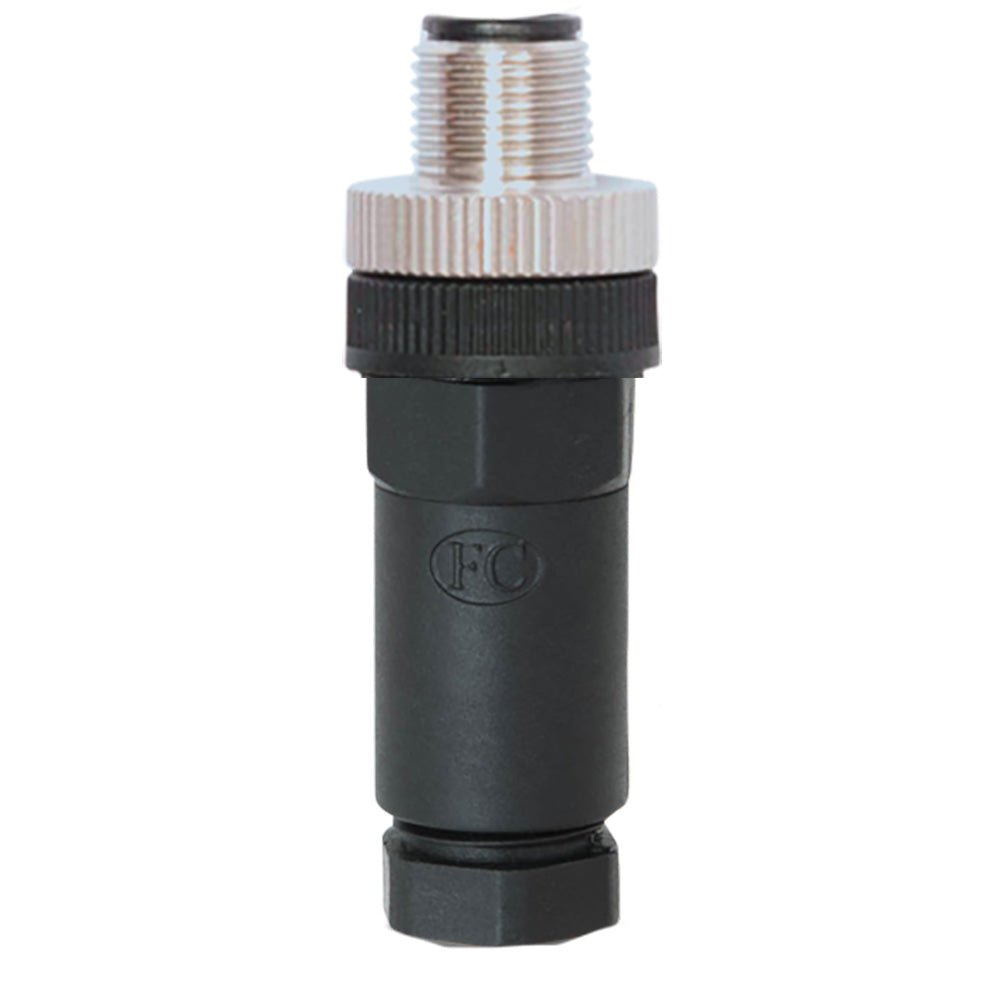

Actisense NMEA2000 Straight Micro Field Fit Male Connector (Part A2K-FFC-SM) - A2K-FFC-SM

Actisense NMEA2000 Straight Micro Field Fit Male Connector (Part A2K-FFC-SM)

The Actisense NMEA2000 Straight Micro Field Fit Male Connector (Part A2K-FFC-SM) offers a versatile solution for customizing your NMEA 2000 network cabling with ease. Designed for marine and industrial environments, this connector enables precise cable length adjustments, reducing excess wire and simplifying installation. Its field-fit design allows for on-site modifications, making it ideal for tight spaces and complex layouts. The connector's secure gland tightens around the cable as it is screwed together, ensuring a watertight seal that maintains integrity even in harsh conditions. The use of high-quality materials such as brass, stainless steel, and durable plastics guarantees long-lasting performance and reliable connections. The connector supports up to 4A current and 60VDC voltage, complying with industry standards for safety and dependability. Its compatibility with 22 AWG wire and sealing gland size suitable for PG9/6-8mm cables make it adaptable for various applications. The IP67 rating ensures protection against dust and water ingress, while the rubber O-ring seal enhances sealing effectiveness. This connector is suitable for use in a wide temperature range from -25°C to +90°C, ensuring reliable operation in diverse environments. Assembly is straightforward, with stainless steel screws providing secure fastening, and the connector body constructed from reinforced PA+GF material for durability. The insert made of TPU adds flexibility and resilience, supporting stable electrical contacts. Overall, the Actisense A2K-FFC-SM is an essential component for marine and industrial network setups, combining flexibility, durability, and ease of installation in a single solution.

Features:

• Field-fit design allows for cable customization and on-site installation adjustments

• Watertight connection achieved through screw-tightened gland and rubber O-ring seal

• Supports up to 4A current and 60VDC voltage for reliable power transmission

• Compatible with 22 AWG wire and suitable for PG9/6-8mm cables

• High-quality brass contacts with gold plating for optimal conductivity

• Constructed with durable materials including PA+GF body and TPU insert

• IP67 rated for protection against dust and water ingress

• Wide operating temperature range from -25°C to +90°C for versatile use

• Secure stainless steel screws and M12 mating thread ensure reliable connection

• Easy to install with flexible right-angle options for tight space applications

BRAND: Actisense

Manufacturer Part Number: A2K-FFC-SM
