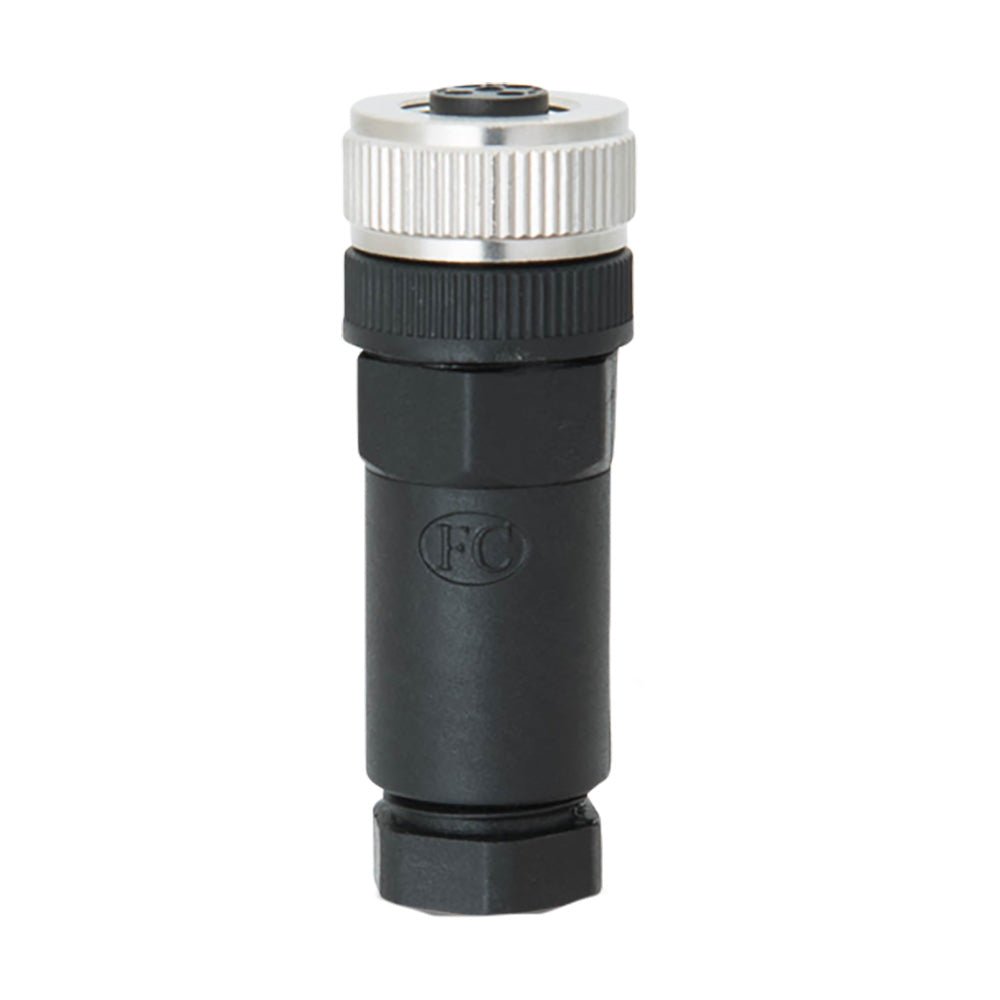

Actisense NMEA2000 Straight Micro Field Fit Connector - Female (Part A2K-FFC-SF)

The Actisense NMEA2000 Straight Micro Field Fit Connector - Female (Part A2K-FFC-SF) is designed for versatile and reliable NMEA 2000 network installations. This connector allows full customization of your cabling, offering a straightforward solution for creating secure, watertight connections in marine electronics systems. Its field-fit design simplifies installation by enabling cables to be cut to any length, reducing excess wiring and facilitating neat, professional setups. The straight configuration ensures seamless integration in tight spaces, making it ideal for complex or constrained marine environments. The connector’s glands tighten around Lite cable as it is screwed together, providing a durable, watertight seal that protects against moisture and corrosion, essential for long-term marine applications.
Constructed with high-quality materials, the connector features a brass, gold-plated contact for excellent electrical conductivity and corrosion resistance. It supports a maximum rated current of 4A and a voltage of up to 60VDC, suitable for a wide range of marine electronic devices. The sealing is enhanced with a black rubber O-ring, and the connector body is made of durable PA+GF material, ensuring robustness and longevity. Its stainless steel screw and PG9 gland size accommodate 22 AWG/0.34mm wire gauge, making it compatible with common marine wiring standards. The connector’s design adheres to IP67 protection standards, providing dust-tight and water-resistant performance suitable for demanding marine environments.
This connector is compatible with standard M12 polarization and thread specifications, ensuring easy mating with other NMEA 2000 components. It features a TPU insert and a sealed, rubber O-ring to maintain insulation resistance of 100 MΩ, ensuring signal integrity. Weighing approximately 0.9 ounces, this connector is lightweight yet resilient, making it a reliable choice for marine and industrial applications. For detailed installation instructions and technical specifications, refer to the manufacturer’s manual available online. The Actisense NMEA2000 Straight Micro Field Fit Connector - Female guarantees secure, flexible, and weatherproof connections, supporting the integrity and performance of your marine network systems.

Features:

• Field-fit connector design allows for cable customization and easy installation around tight bends

• Watertight seal with gland tightening mechanism to ensure IP67 rated protection

• High-quality brass, gold-plated contacts for optimal electrical conductivity and corrosion resistance

• Supports up to 4A current and 60VDC voltage for versatile marine electronic applications

• Compatible with 22 AWG/0.34mm wire gauge, with a sealing Gland size of PG9/6-8mm cable

• Durable construction with PA+GF body, stainless steel screw, and rubber O-ring seal

• Meets IP67 protection standards for dust and water resistance in demanding environments

• Standard M12 polarization and threading for secure mating with other NMEA 2000 components

• Lightweight and reliable, suitable for both marine and industrial applications

BRAND: Actisense

Manufacturer Part Number: A2K-FFC-SF
