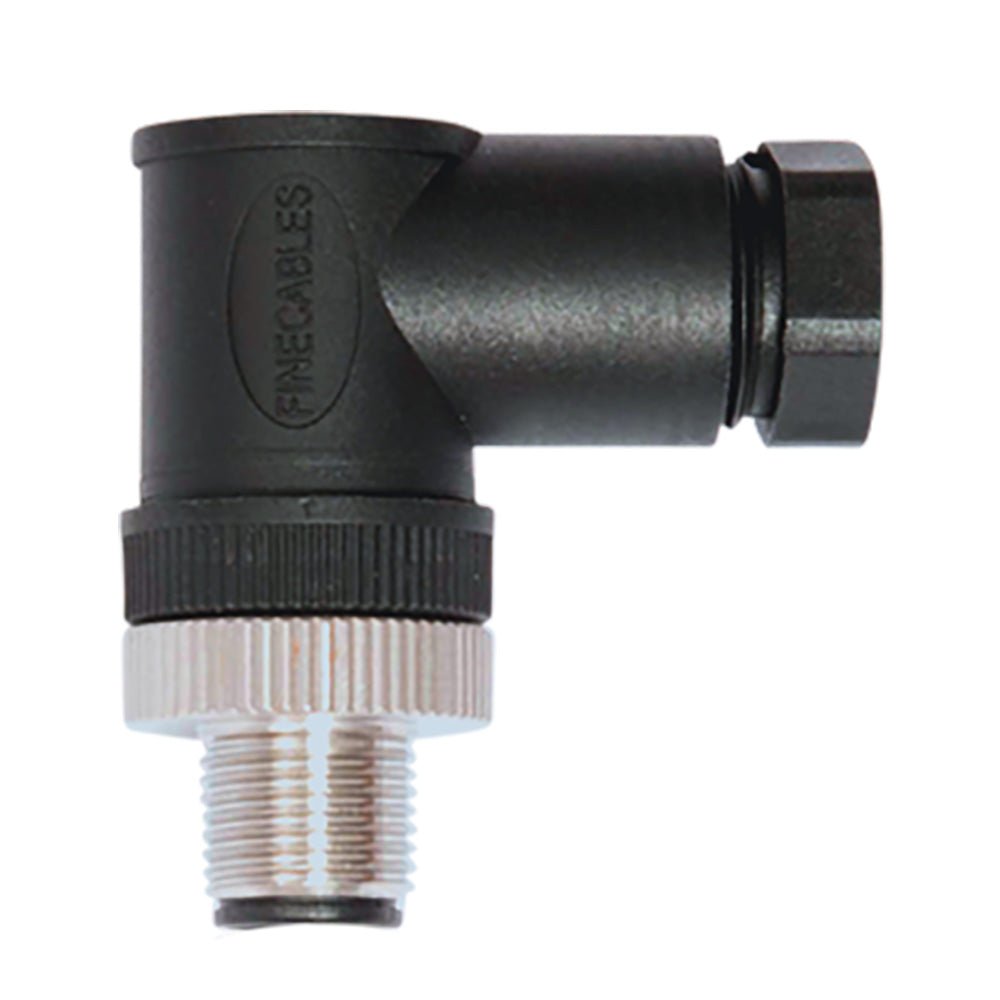

Actisense NMEA2000 Right Angle Micro Field Fit Connector - Male (Part Number: A2K-FFC-RM)

The Actisense NMEA2000 Right Angle Micro Field Fit Connector - Male (Part Number: A2K-FFC-RM) is a versatile component designed for custom marine network installations. This connector allows for precise and reliable connections within NMEA 2000 systems, particularly when space constraints require a right-angle configuration for easier cable routing. Its innovative design enables cables to be cut to any length, reducing excess wiring and simplifying the installation process. The right-angle feature facilitates cable entry from tight spaces or around obstacles, ensuring a neat and professional setup. Constructed with high-quality materials, this connector provides a secure, watertight connection that meets rigorous marine standards, making it suitable for demanding environments. The connector's glands tighten around the cable as it is screwed together, maintaining a waterproof seal and ensuring long-term durability. Its compatibility with Lite cable and standard M12 threading makes it a flexible choice for various marine electronic applications.

Features:

• Rated Current: 4A for reliable power transmission

• Rated Voltage: 60VDC to support marine electrical systems

• Connector Contact: Brass, gold plated for corrosion resistance

• Wire Gauge/Size: Accepts 22 AWG/0.34mm wire

• Contact Resistance: 5 milliohms for efficient conductivity

• Contact Polarization: Standard M12-A for compatibility

• Mating Thread: M12 for secure connection

• Connector Screw: Stainless steel for durability

• Sealing Gland Size: PG9/6-8mm cable for versatile installation

• O-Ring Seal: Rubber, black for waterproof protection

• Connector Insert: TPU material for flexibility

• Connector Body: PA+GF black for strength and weather resistance

• Insulation Resistance: 100 MΩ for safety and performance

• Protection Class: IP67 in locked condition for water and dust resistance

• Ambient Temperature Range: -25°C to +90°C for reliable operation in various environments

BRAND: Actisense

Manufacturer Part Number: A2K-FFC-RM
