Actisense NMEA2000 Mid Bulk Cable Reel - 100M for Marine Data Networking - A2K-BULK-100MID

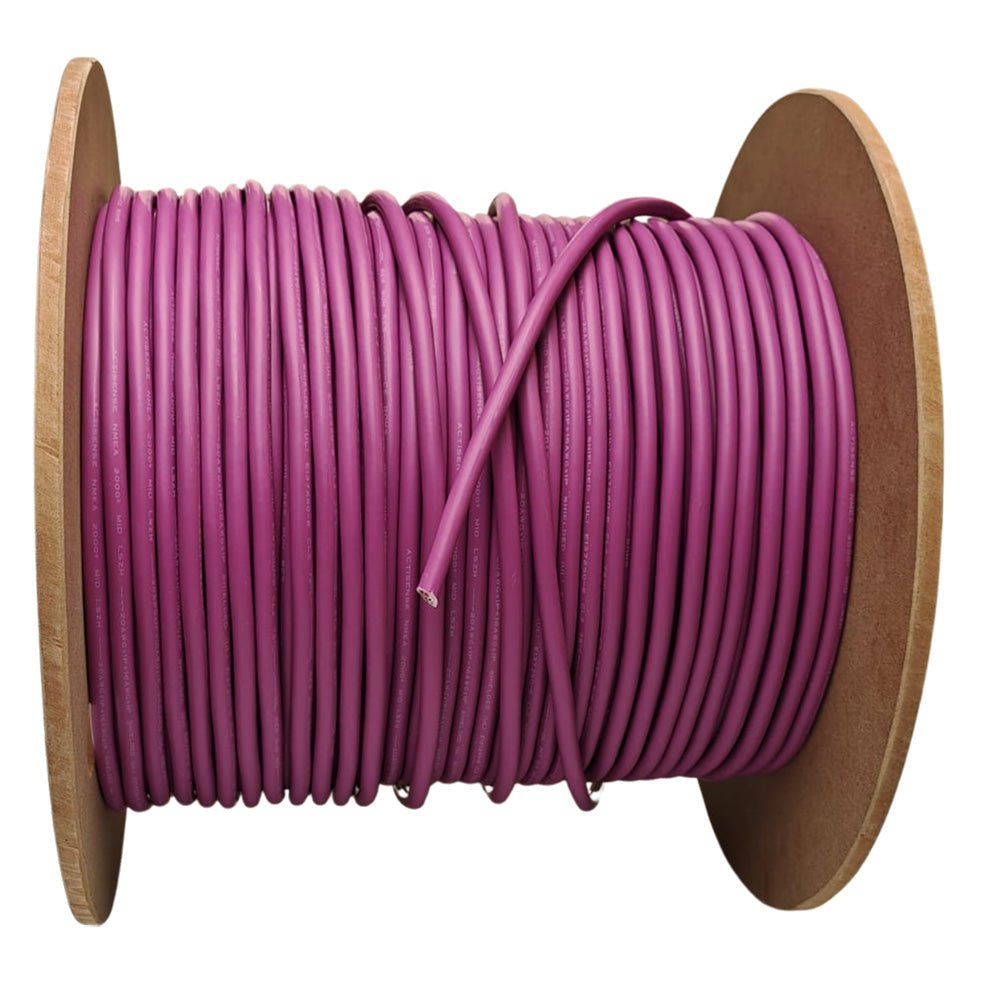

Actisense NMEA2000 Mid Bulk Cable Reel - 100M for Marine Data Networking

The Actisense NMEA2000 Mid Bulk Cable Reel provides a reliable solution for extending or creating custom-length NMEA 2000 networks in marine and other professional applications. Designed with high-quality materials and approved for NMEA 2000 certification, this 100-meter reel allows for flexible installation of your network backbone while maintaining signal integrity and safety. The cable incorporates five internal wires—power, ground, two signal lines, and a drain wire—ensuring comprehensive connectivity and shielding against external Radio Frequency Interference (RFI). Its LSZH (Low Smoke Zero Halogen) jacket offers enhanced safety for installation environments, emitting minimal smoke and halogen gases in case of fire, while the purple outer sheath adds visibility and identification.
Built with tinned copper conductors and aluminum Mylar shielding, the cable supports a maximum current of 8A with Mini connectors and 4A with Micro connectors, making it suitable for various power requirements. Its impedance and attenuation characteristics at different frequencies ensure clear data transmission over long distances, with a backbone length capacity of up to 250 meters. The cable's design includes a braided shield with 65% coverage, providing effective protection against external RFI and reducing electromagnetic emissions that could interfere with sensitive electronic equipment.
Approvals and certifications such as UL, RoHS, and compliance with IEC standards demonstrate its adherence to safety and environmental regulations. The operating temperature range from -20°C to +70°C ensures reliable performance in a variety of marine and industrial environments. This reel is ideal for boat builders, marine electronics installers, and professionals needing a robust, certified cable for high-speed data and power transmission. The flexible length and high-quality construction make it an essential component for building durable, scalable NMEA 2000 networks in demanding conditions.

Features:

• Length: 100 meters (328 feet) reel for flexible network extension

• NMEA 2000 approved, ensuring compatibility with marine communication standards

• LSZH jacket material provides fire safety and low smoke emissions

• Five internal conductors: power, ground, two data lines, and drain wire for comprehensive connectivity

• Supports up to 8A current capacity with Mini connectors and 4A with Micro connectors

• Shielded with aluminum Mylar tape and braided copper braid for RFI protection

• Impedance of 120 ohms at 1 MHz for reliable high-frequency data transfer

• Designed with tinned copper conductors for corrosion resistance

• Operating temperature range from -20°C to +70°C for versatile deployment

• Certified UL, RoHS compliant, and IEC standards for safety and environmental responsibility

BRAND: Actisense

Manufacturer Part Number: A2K-BULK-100MID
