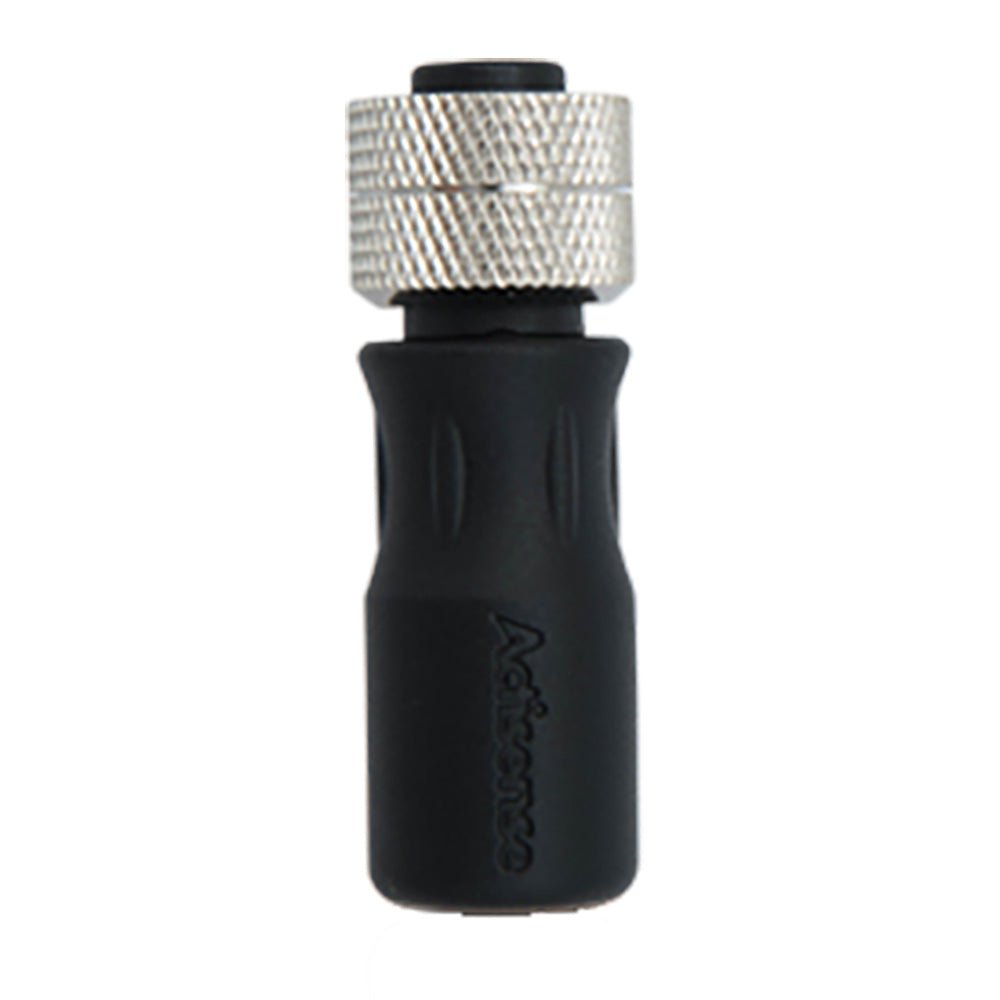

Actisense NMEA2000 Micro Terminator - Female | Part Number A2K-TER-F

The Actisense NMEA2000 Micro Terminator for female connections is engineered for durability and reliable signal integrity in demanding marine environments. Designed with robust construction, this terminator withstands harsh conditions and is simple to install, ensuring seamless integration into your NMEA 2000 network. Proper network setup requires two terminators—one at each end of the backbone—to maintain optimal communication and data transmission. The Actisense range, backed by extensive interconnect expertise, guarantees high-quality connectors and cables tailored for marine electronics.
The electrical specifications include a rated voltage of 60VDC and a rated current of 4A, with internal termination resistors of 120Ω ±1% and 500mW power rating, ensuring stable and consistent signal performance. Mechanical features feature a female phosphor bronze contact with gold plating for superior corrosion resistance and reliable conductivity. The contact carrier is made from PA66 (30% Glass filled), offering strength and durability. The connector aligns with standard M12 -A- polarization and features a brass, nickel-plated screw cap, a rubber O-ring seal for IP67 protection when mated, and a black PVC housing to withstand marine conditions. Its compact weight of approximately 0.5 ounces makes it suitable for space-constrained installations.
Certified for marine use, this terminator complies with IP67 standards, providing protection against dust and water ingress when connected. Operating temperature ranges from -13°F to +158°F, and it can be stored in temperatures from -40°F to +185°F, ensuring reliable operation across diverse environments. This product is ideal for extending or repairing NMEA 2000 networks in boats and marine equipment, offering dependable performance and easy installation. For detailed usage instructions, consult the official manual available online.
Please note that this product may not be returnable to the original purchase point; contact Actisense directly for support or concerns.

Features:

• Rated Voltage: 60VDC for safe, reliable power transmission

• Rated Current: 4A ensures robust electrical performance

• Internal Termination Resistors: 120Ω ±1% for signal integrity

• Female Contact: Phosphor bronze with gold plating for corrosion resistance

• Contact Carrier: PA66 (30% Glass filled) for durability

• Polarization: Standard M12 -A- for compatibility

• Mating Thread: M12 for secure connection

• Screw Cap: Brass, nickel plated for corrosion resistance

• O-Ring Seal: Rubber, black for IP67 water and dust protection

• Housing: Black PVC designed to withstand marine environments

• Protection Rating: IP67 when mated for environmental sealing

• Operating Temperature: -13°F to +158°F for versatile use

• Storage Temperature: -40°F to +185°F for long-term storage

BRAND: Actisense

Manufacturer Part Number: A2K-TER-F
