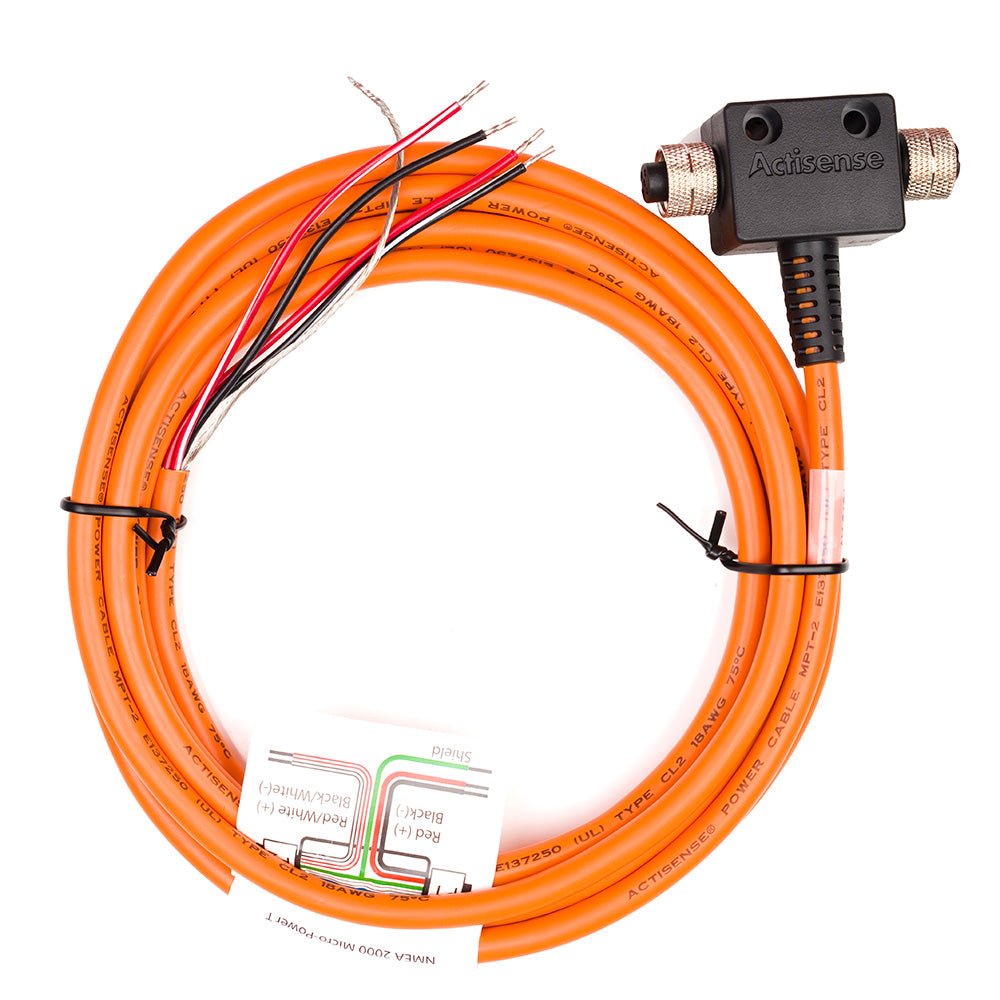

Actisense NMEA2000 Micro T-Piece with Female Connectors and 3M UL Certified Cable - A2K-MPT-2

Actisense NMEA2000 Micro T-Piece with Female Connectors and 3M UL Certified Cable

The Actisense A2K-MPT-2 is a reliable solution for powering your NMEA 2000 network with ease and security. Featuring improved strain relief for enhanced durability, this micro T-piece is designed for quick, plug-and-play connectivity using micro-fit connectors. Its two female connectors enable seamless integration within your marine or industrial NMEA 2000 system, ensuring a secure and stable power supply. The connectors are engineered for easy handling and dependable connections, leveraging Actisense’s extensive interconnect and NMEA knowledge. The specified UL-certified cable, measuring 3 meters in length, offers flexible installation options, accommodating various system layouts and configurations.

The electrical specifications include a rated current of 4A per feed and a maximum voltage of 60VDC, making it suitable for typical marine electronics applications. Mechanical features include phosphor bronze, gold-plated female contacts for corrosion resistance, and a robust construction with a PA66 contact carrier and brass, nickel-plated screw cap. The housing is made of durable PVC, with an IP67 rating providing protection against dust and water ingress when mated. The cable jacket is orange PVC with a diameter of approximately 0.27 inches, containing 18 AWG tinned wires and a shielded design for signal integrity. The overall weight of this component is approximately 10 ounces, facilitating easy handling during installation.

Designed to operate effectively across a wide temperature range from -20°C to +70°C, the Actisense Micro T-Piece is suitable for various marine environments. It also meets safety and durability standards with IP67 protection when mated and is suitable for storage in temperatures as low as -40°C and as high as +85°C. This product is ideal for professionals seeking a dependable, high-quality power distribution solution for NMEA 2000 networks, ensuring consistent performance and easy integration within complex systems. For detailed installation instructions, refer to the manufacturer’s manual available online.

Features:

• Improved strain relief for enhanced durability

• Plug-and-play connectivity with micro-fit connectors

• UL certified 3-meter cable for flexible installation

• Rated current: 4A per feed with 60VDC capacity

• IP67 rated for water and dust resistance when mated

• Corrosion-resistant phosphor bronze, gold-plated contacts

• Robust housing with IP67 protection and durable materials

• Wide operating temperature range from -20°C to +70°C

• Compatible with NMEA 2000 and DeviceNet networks

• Easy to install with secure, reliable connections

BRAND: Actisense

Manufacturer Part Number: A2K-MPT-2
