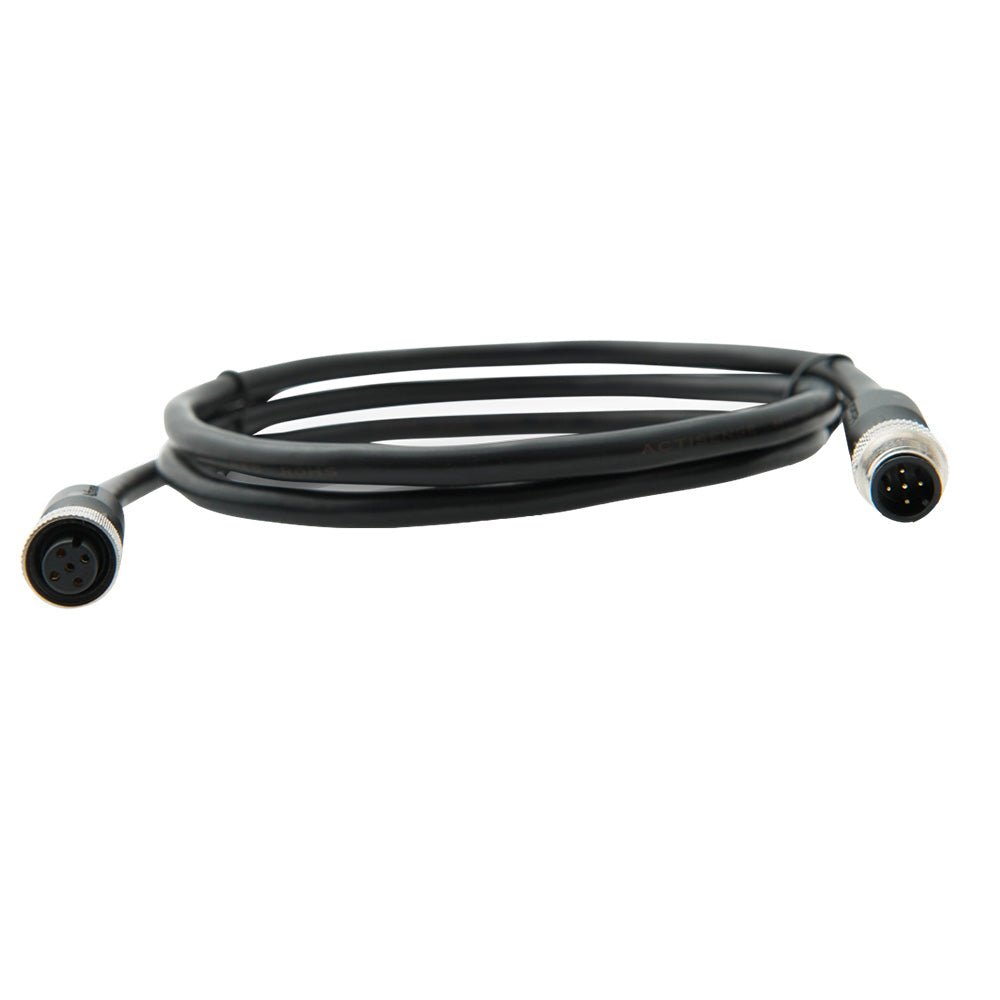

Actisense A2K-TDC-3M NMEA2000 Micro Cable Assembly - 3 Meter

The Actisense A2K-TDC-3M NMEA2000 Micro Cable Assembly is designed for reliable and efficient marine network connections, providing a 3-meter length suitable for various NMEA 2000 installations. This waterproof cable assembly facilitates easy connection and extension of NMEA 2000 backbones, ensuring seamless data and power transmission across your marine electronic systems. Crafted with high-quality, UL-certified cables, the Actisense Lite series guarantees durability and safety in demanding marine environments. It includes five internal wires—power, ground, two signal wires, and a drain wire—encased in a protective waterproof jacket that shields against external Radio Frequency Interference (RFI) and minimizes RFI emission, maintaining signal integrity and reducing electrical noise. The cable's design supports backbone networks up to 100 meters, with optional extensions to manage longer runs by integrating mini cables, while drop cables are limited to 6 meters each to ensure optimal performance. The cable assembly features brass, gold-plated male contacts and phosphor bronze, gold-plated female contacts for excellent conductivity and corrosion resistance. The rugged black PVC housing combined with a rubber O-ring seal ensures IP67 protection when mated, safeguarding connections against water ingress and dust. The assembly's various components, including a nickel-plated brass screw cap and PBT contact carrier, contribute to its robustness. Rated for 3A current and 60VDC voltage, this cable is suitable for powering and transmitting data within marine networks, with a jacket diameter of approximately 0.27 inches. Operating temperature ranges from -20°C to +70°C, with storage options extending from -40°C to +85°C, making it versatile for different environmental conditions. Whether used as a drop cable or backbone extension, the Actisense A2K-TDC-3M ensures high-quality, reliable Marine Network connectivity for your vessel’s electronic systems. For detailed installation instructions, refer to the manufacturer’s manual available online.

Features:

• Rated Current: 3A for safe power transmission

• Rated Voltage: 60VDC suitable for marine electronics

• High-quality brass, gold-plated male contacts for corrosion resistance

• Phosphor bronze, gold-plated female contacts for reliable connections

• Waterproof construction with IP67 rating when mated

• Black PVC housing with rubber O-ring seal for environmental protection

• Designed for backbone networks up to 100 meters, extendable with mini cables

• Drop cable length limited to 6 meters to optimize network performance

• 5-wire waterproof cable with power, ground, two data, and drain conductors

• Durable construction supporting operating temperatures from -20°C to +70°C

• Includes a black PBT contact carrier and nickel-plated brass screw cap

• Jacket diameter approximately 0.27 inches for easy installation

• Compatible with standard M12 -A- polarization and M12 mating thread

• Suitable for marine environments with high durability requirements

BRAND: Actisense

Manufacturer Part Number: A2K-TDC-3M
