Actisense A2K-TDC-0M25 NMEA2000 Micro Cable Assembly - 0.25 meters - A2K-TDC-0M25

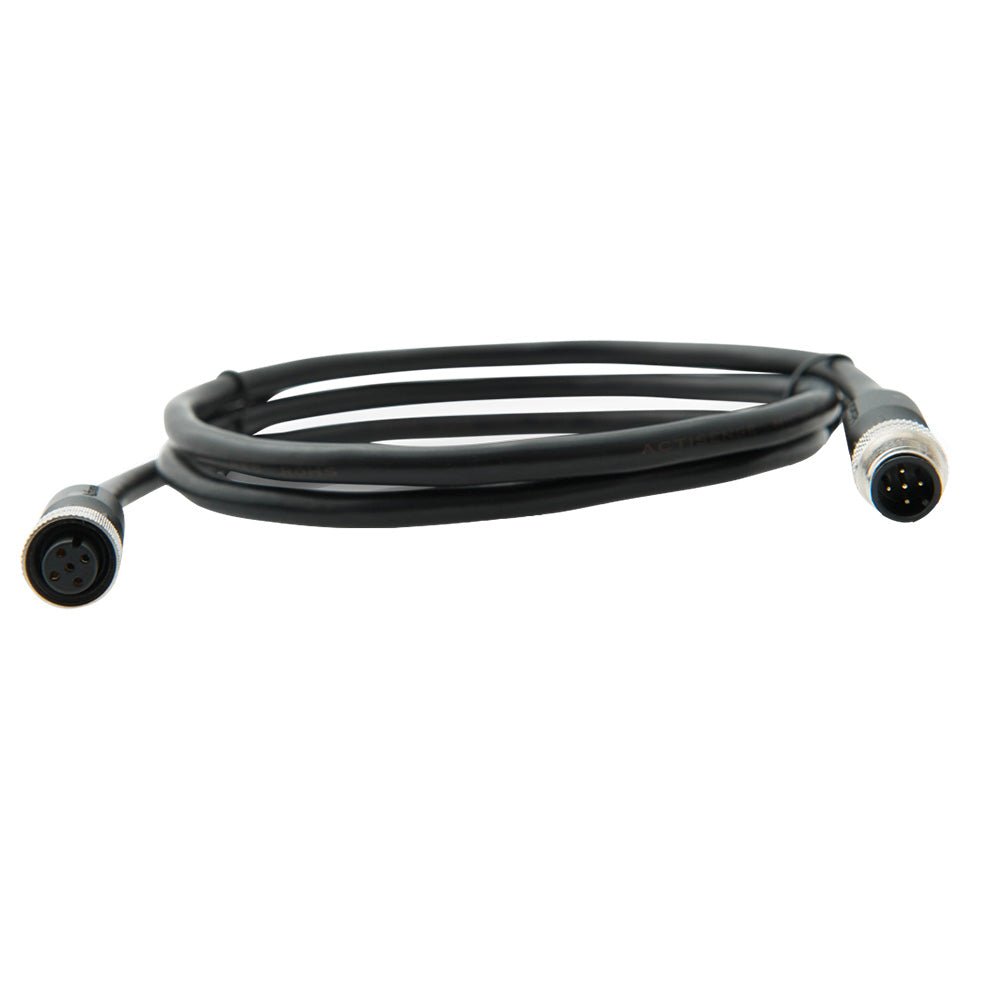

Actisense A2K-TDC-0M25 NMEA2000 Micro Cable Assembly - 0.25 meters

The Actisense A2K-TDC-0M25 NMEA2000 Micro Cable Assembly provides a reliable connection solution for marine electronics and other NMEA 2000 networks. Designed for quick installation, this 0.25-meter cable is ideal for both drop connections from a backbone or extending existing backbone runs. Its high-quality UL-certified construction ensures durability and signal integrity in demanding environments. The cable's waterproof design features five internal wires—power, ground, two data lines, and a drain wire—shielded to protect against external Radio Frequency Interference (RFI) and reduce emission, maintaining optimal communication quality. The drain wire connects to the shield, offering added protection for signal and power lines, which is essential in marine settings where interference can be prevalent. This assembly supports a backbone length of up to 100 meters when combined with additional cables, making it suitable for large-scale networks, while limiting drop lengths to 6 meters ensures consistent performance. The cable's robust construction includes brass, gold-plated contacts, and a PVC housing with an IP67 rating when mated, providing excellent protection against dust and water ingress. Rated for 3 amps and 60 volts DC, the cable is built to handle typical marine power and data loads. The use of tinned copper conductors and a durable PVC jacket guarantees longevity and reliable performance across a wide temperature range from -20°C to +70°C. Whether connecting sensors, navigation systems, or other marine electronics, the Actisense A2K-TDC-0M25 ensures a secure and interference-resistant connection, backed by technical specifications designed for dependable operation in harsh environments.

Features:

• Designed for quick installation with UL-certified quality

• Supports backbone lengths up to 100 meters with optional extension cables

• Waterproof IP67 rating when mated for reliable marine use

• Five internal wires: power, ground, two data lines, and drain wire

• Shielded to reduce RFI and signal interference

• Rated for 3A current and 60VDC voltage

• Tinned copper conductors with durable PVC jacket

• Gold-plated brass male contacts and phosphor bronze female contacts

• Operating temperature range from -20°C to +70°C

• Compact 0.25-meter length ideal for precise connections

BRAND: Actisense

Manufacturer Part Number: A2K-TDC-0M25
